Checking fuse

Check that fuse 11/14 is intact. (For the 850 diesel fuse 11A/4).

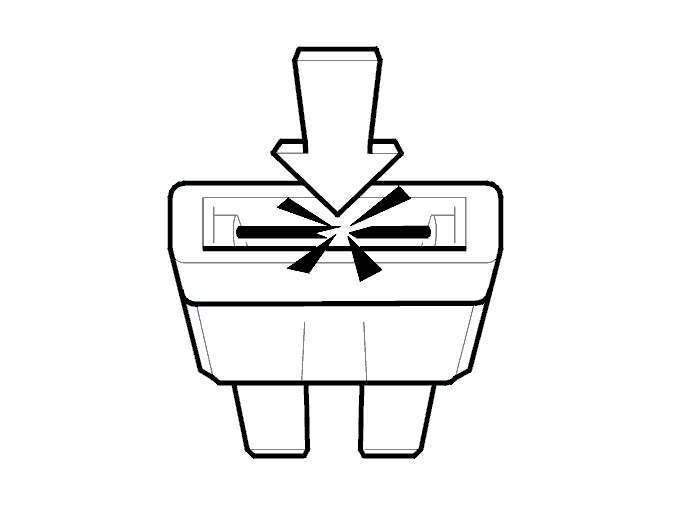

Fig 1: Checking Fuse

Courtesy of VOLVO CARS OF NORTH AMERICA.

Is fuse 11/14 intact?

• YES

  Refer to Checking for an open-circuit in the cable

• NO

  Refer to Checking for a short-circuit and replacing component
