Selector switch: General

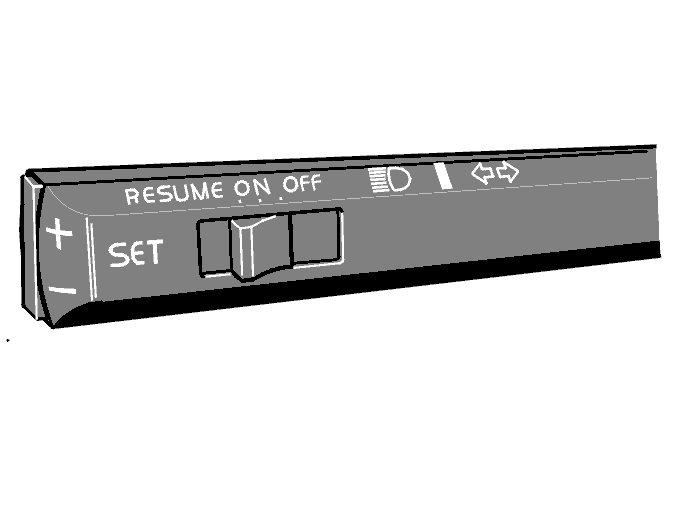

Fig 1: Identifying Cruise Control Switch
GLL118555Courtesy of VOLVO CARS OF NORTH AMERICA.

The cruise control selector switch is located on the turning indicator stalk. To activate cruise control vehicle speed must be above 35 km/h, the switch must be ON and the SET button must be pressed in.

When the system has been engaged vehicle speed can be adjusted up or down by pressing the + or - SET button. Every time the SET button is pressed the vehicle speed setting changes by 1.6 km/h (1 mph). If the control module is switched off (by pressing the brake/clutch pedals, the ON/OFF button or by moving the gear selector from D to N) that latest vehicle speed setting is stored in memory until the ignition is switched off. This vehicle speed can be restored by moving the ON/OFF button to the RESUME position.
