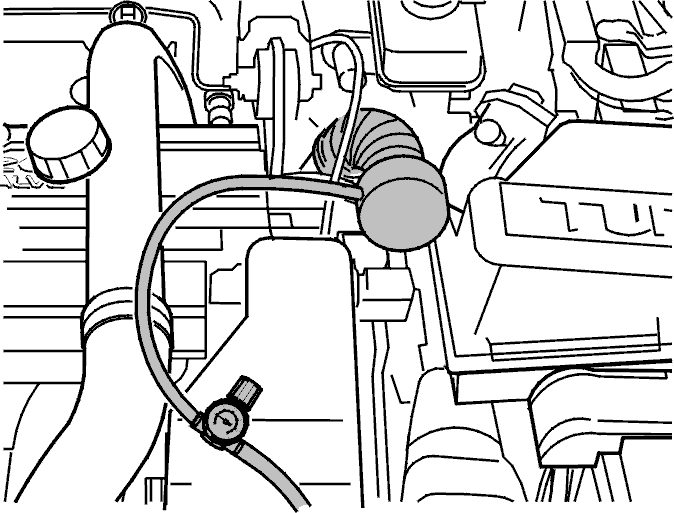

Connect tools
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Disconnect fresh air hose from MAF sensor.
- Connect tool
9995545
and pressure regulator
9995544
to hose and tighten hose clip.
- Use hose clamp to block crankcase ventilation hose.
- Remove oil filler cap.
- Disconnect bottom hose from EVAP valve.
