Component Locations

NOTE: Atmospheric pressure sensor only used on turbocharged engines.

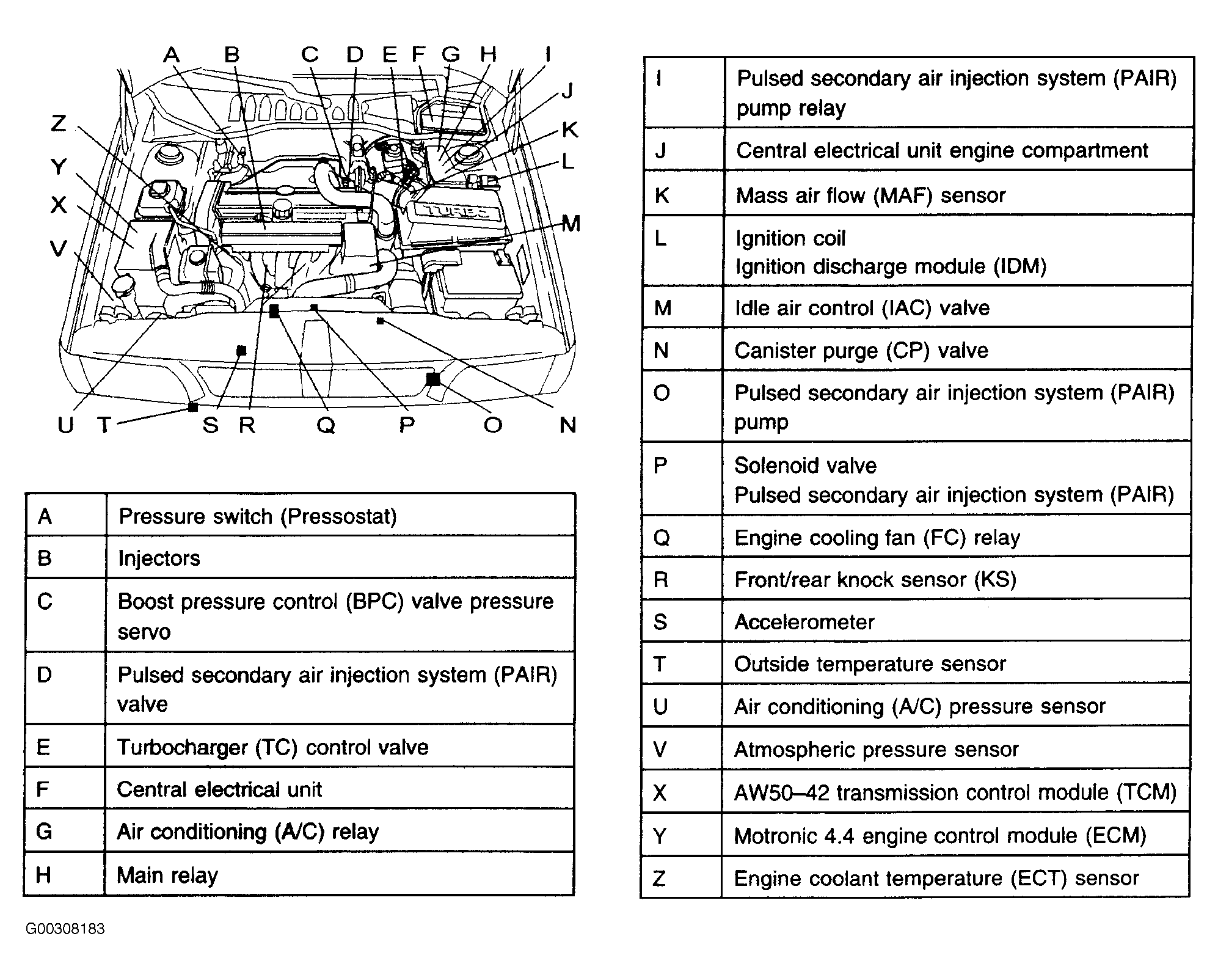

Fig 1: Identifying Engine Compartment Components (1 Of 2)

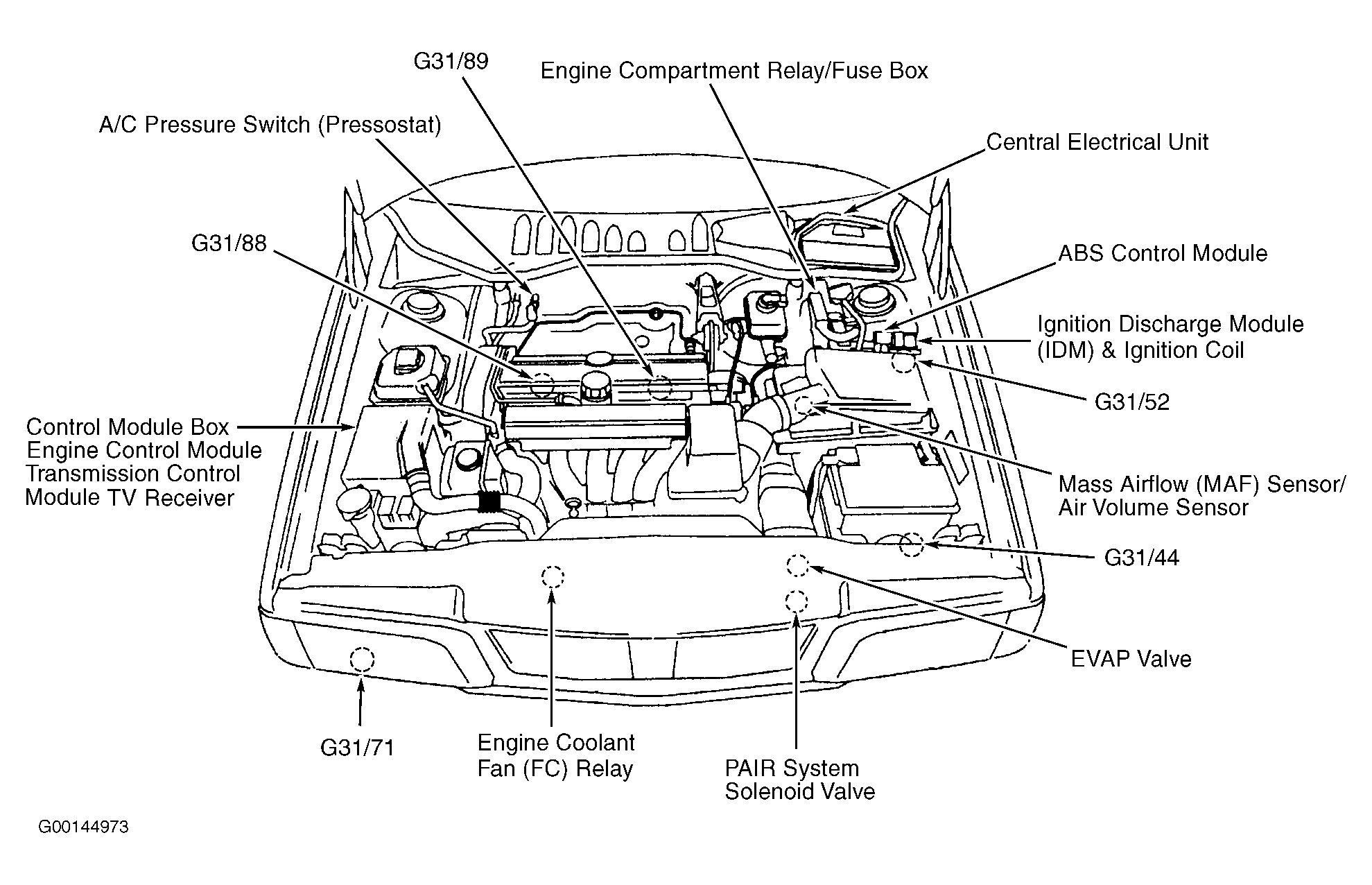

Fig 2: Identifying Engine Compartment Components (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

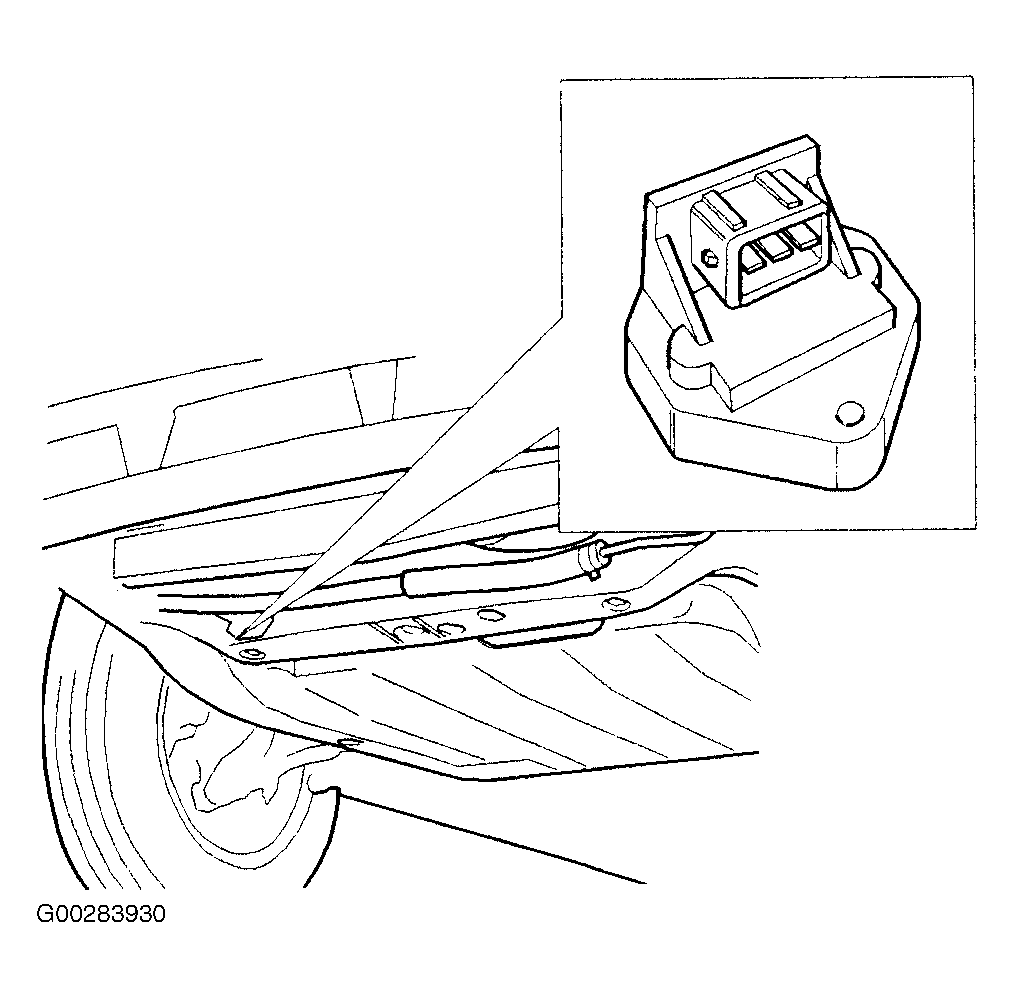

Fig 3: Locating Accelerometer

Courtesy of VOLVO CARS OF NORTH AMERICA.

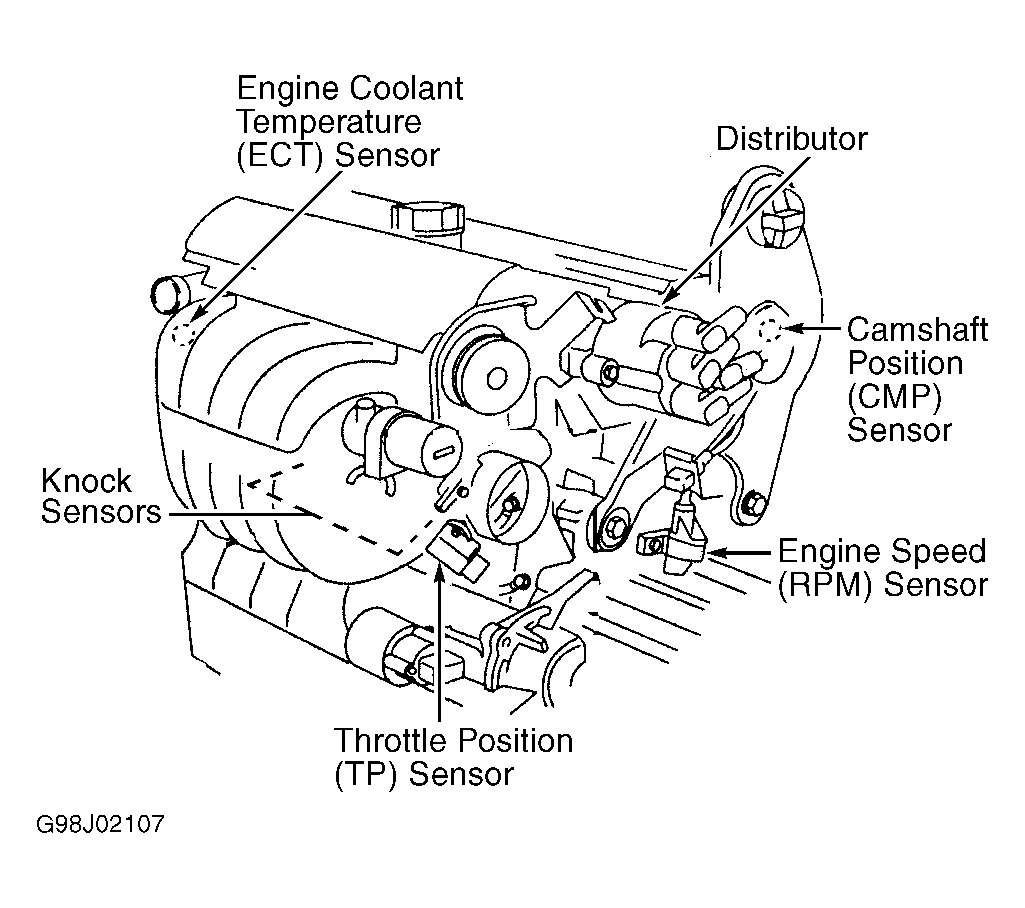

Fig 4: Identifying Engine Motronic Components

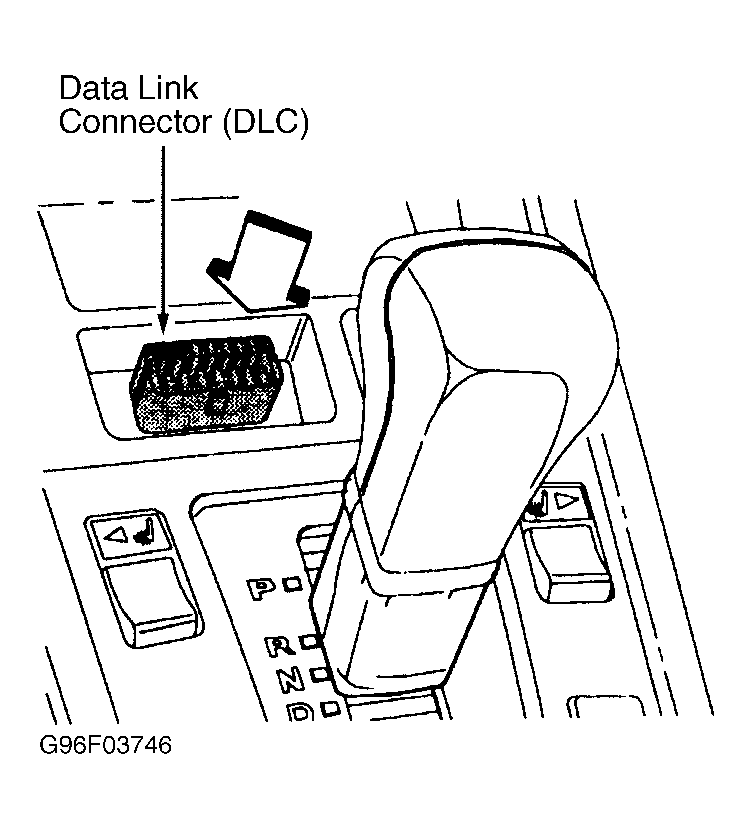

Fig 5: Identifying Data Link Connector Location

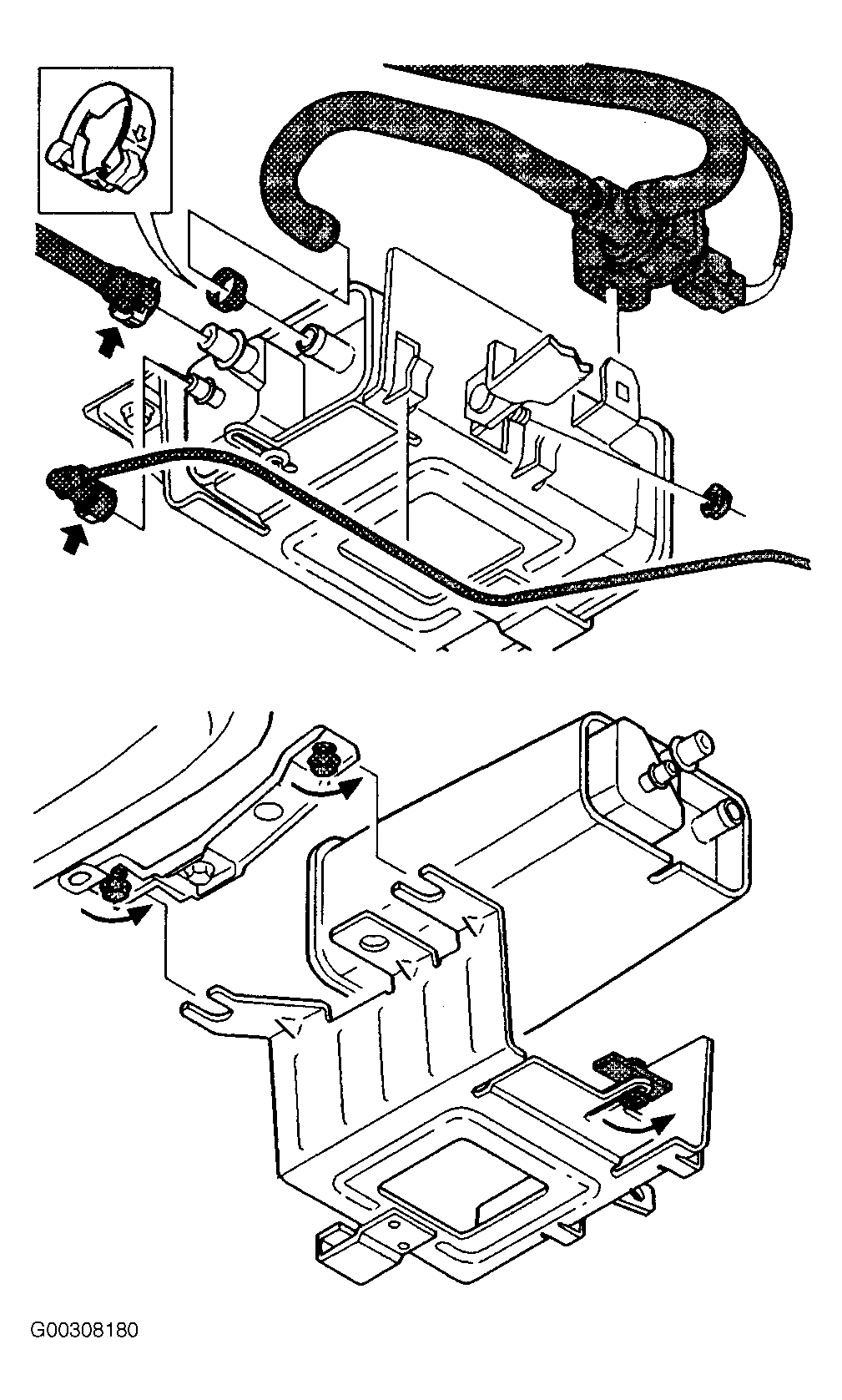

Fig 6: Locating EVAP Canister

Courtesy of VOLVO CARS OF NORTH AMERICA.

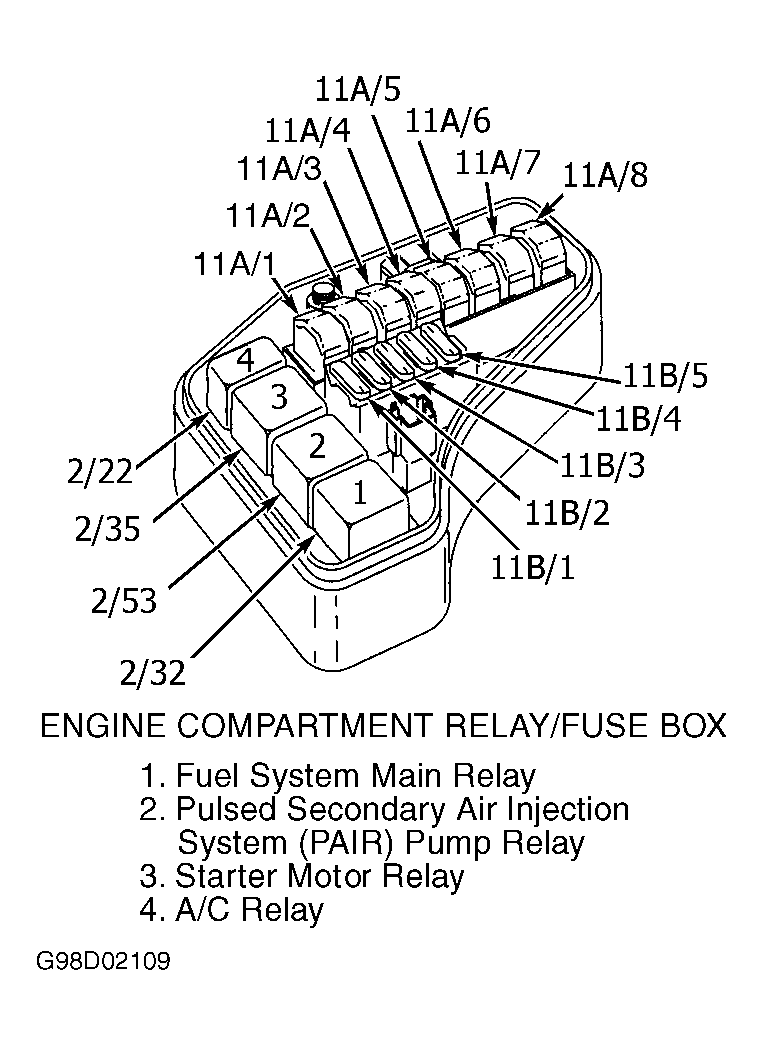

Fig 7: Locating Engine Compartment Relay/Fuse Box Components

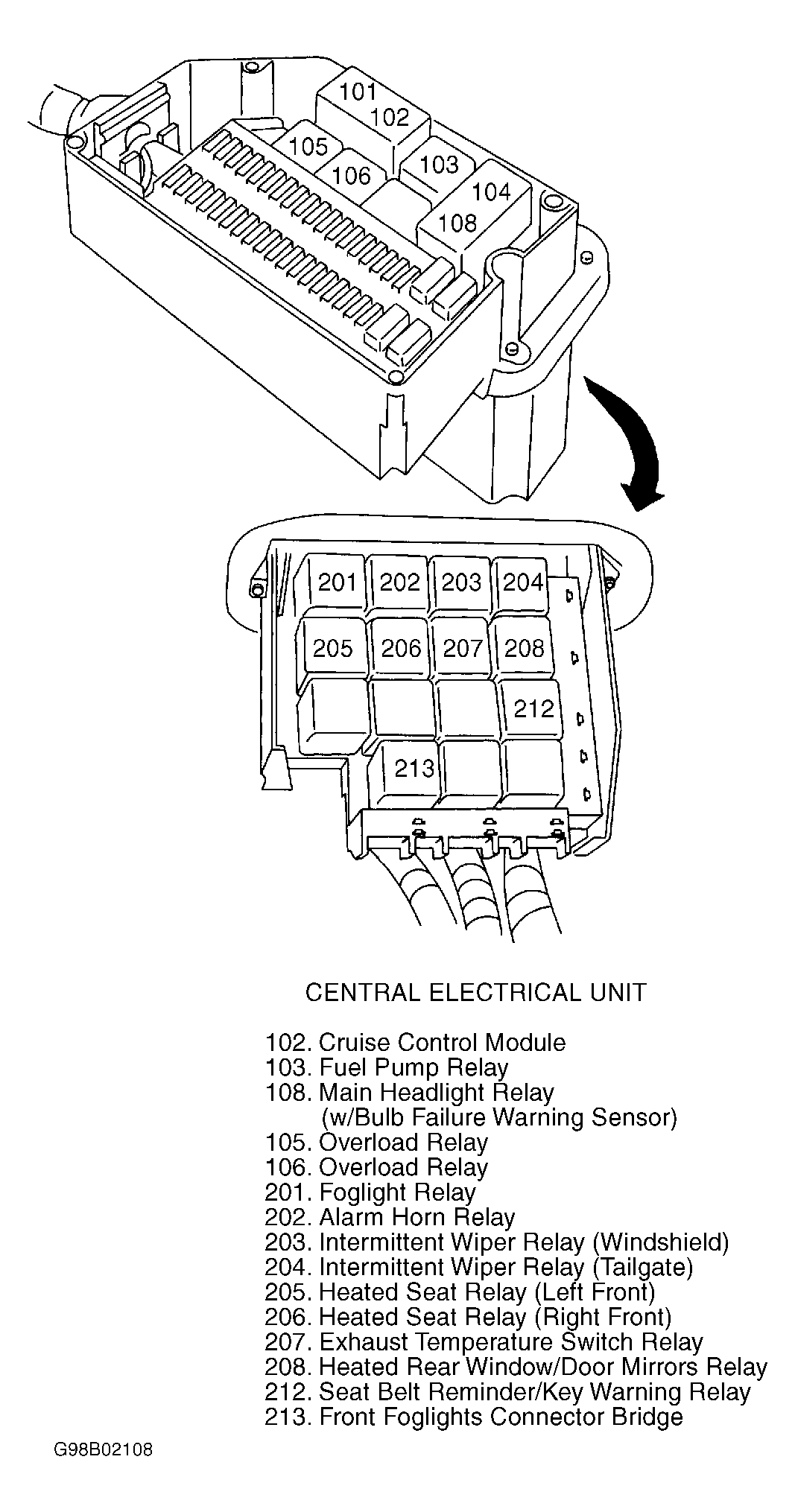

Fig 8: Locating Central Electrical Unit Location
