Connector Identification

NOTE: For connector terminal identification, see Fig 1-Fig 11 and WIRING DIAGRAMS article.

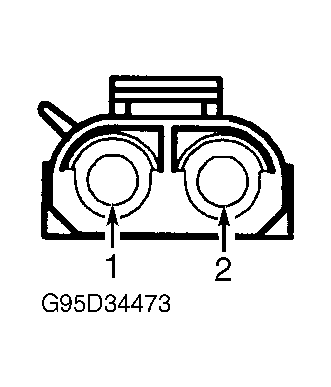

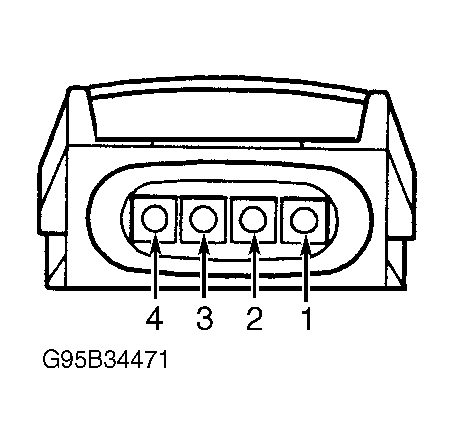

Fig 1: Connector Terminals - Ignition Discharge Module & MAF Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Connector Terminals - Fan Controlled (FC) Relay

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Connector Terminals - ECT Sensor & Outside Temperature Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

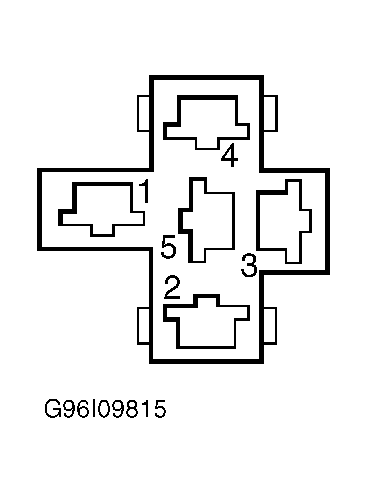

Fig 4: Connector Terminals - PAIR Pump Relay

Courtesy of VOLVO CARS OF NORTH AMERICA.

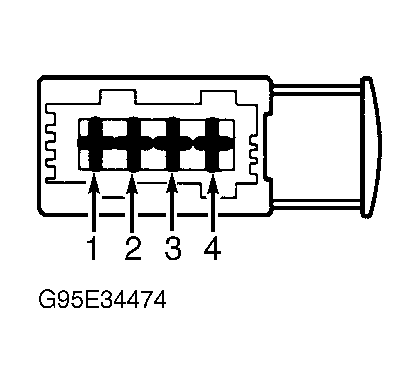

Fig 5: Connector Terminals - Front & Rear HO2S

Courtesy of VOLVO CARS OF NORTH AMERICA.

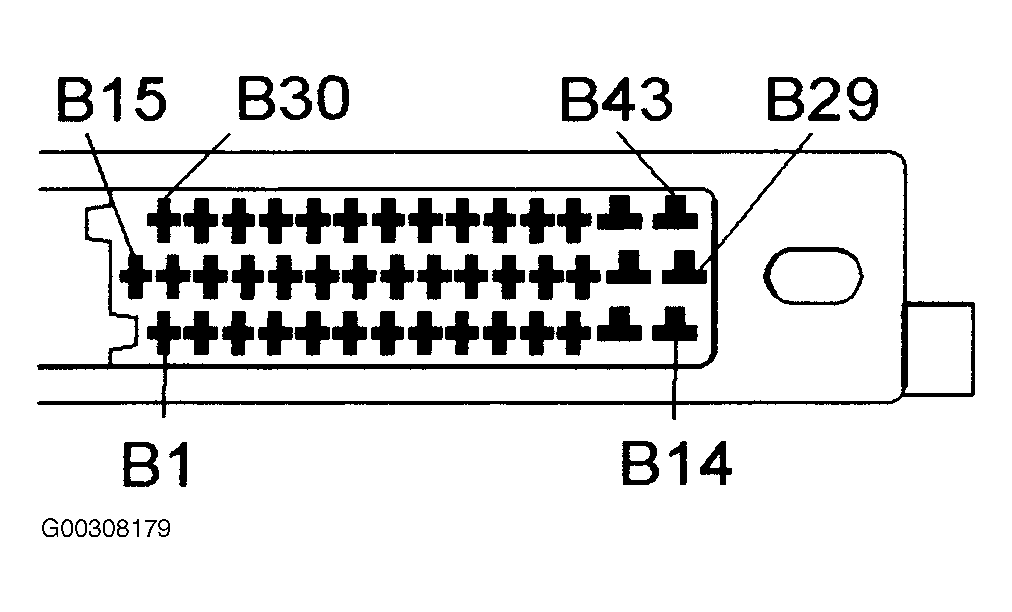

Fig 6: Connector Terminals - ECM

Courtesy of VOLVO CARS OF NORTH AMERICA.

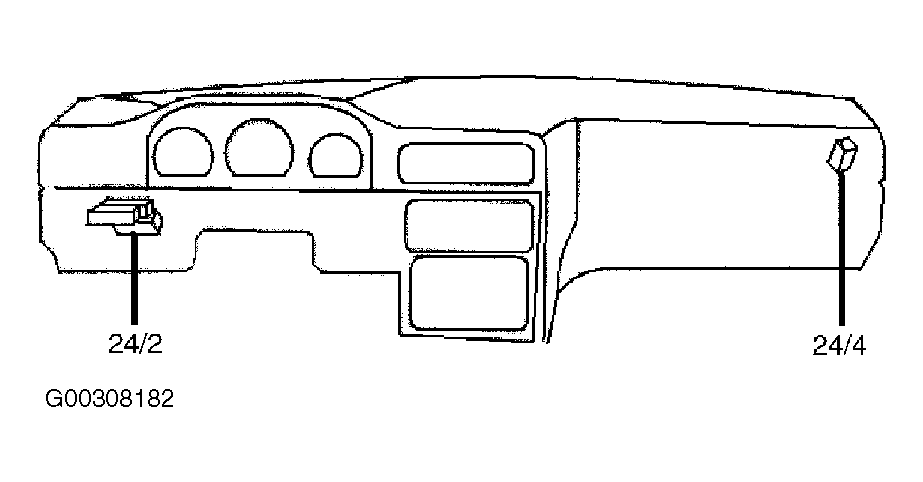

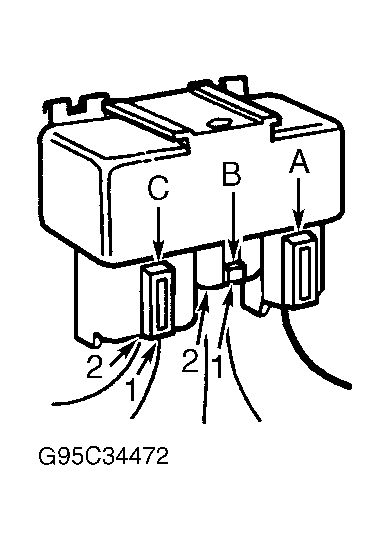

Fig 7: Connector Terminals - 24/2 & 24/4

Courtesy of VOLVO CARS OF NORTH AMERICA.

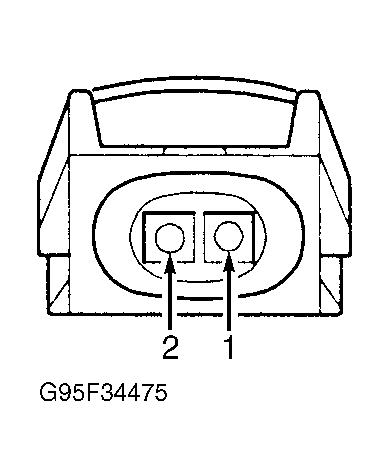

Fig 8: Connector Terminals - CP Valve, EVAP Valve, Fuel Injector, PAIR Pump Solenoid Valve, RPM Sensor & Turbocharger Control Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Atmospheric pressure sensor is used on turbocharged engines.

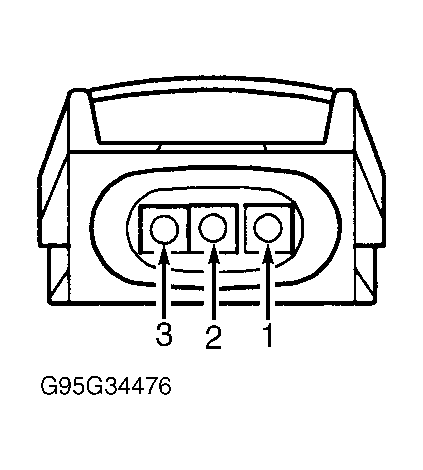

Fig 9: Connector Terminals - Accelerometer Sensor, A/C Pressure Sensor, Atmospheric Pressure Sensor, CMP Sensor, Fuel Tank Pressure Sensor, IAC Valve, Knock Sensor & TP Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

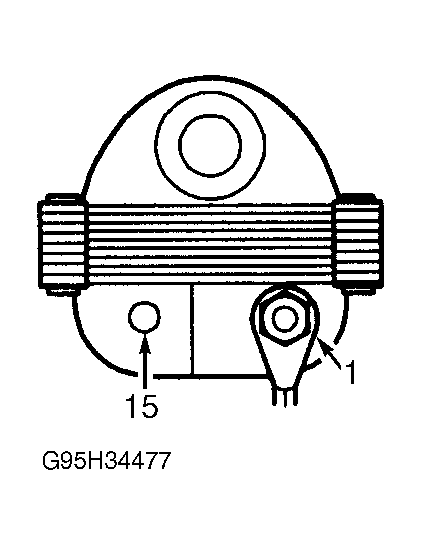

Fig 10: Connector Terminals - Ignition Coil

Courtesy of VOLVO CARS OF NORTH AMERICA.

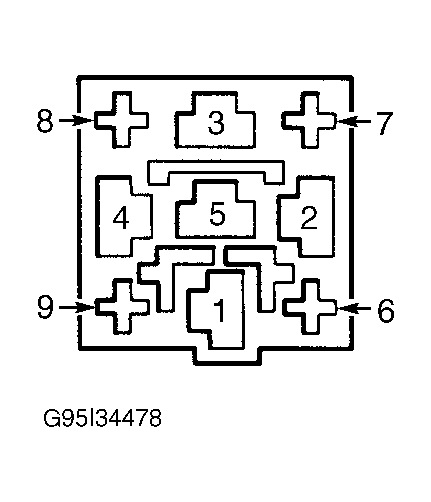

Fig 11: Connector Terminals - Fuel Pump Relay

Courtesy of VOLVO CARS OF NORTH AMERICA.
