Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

Fig 2: Engine Components

Fig 3: Data Link Connector

Fig 4: Engine Compartment Relay/Fuse Box

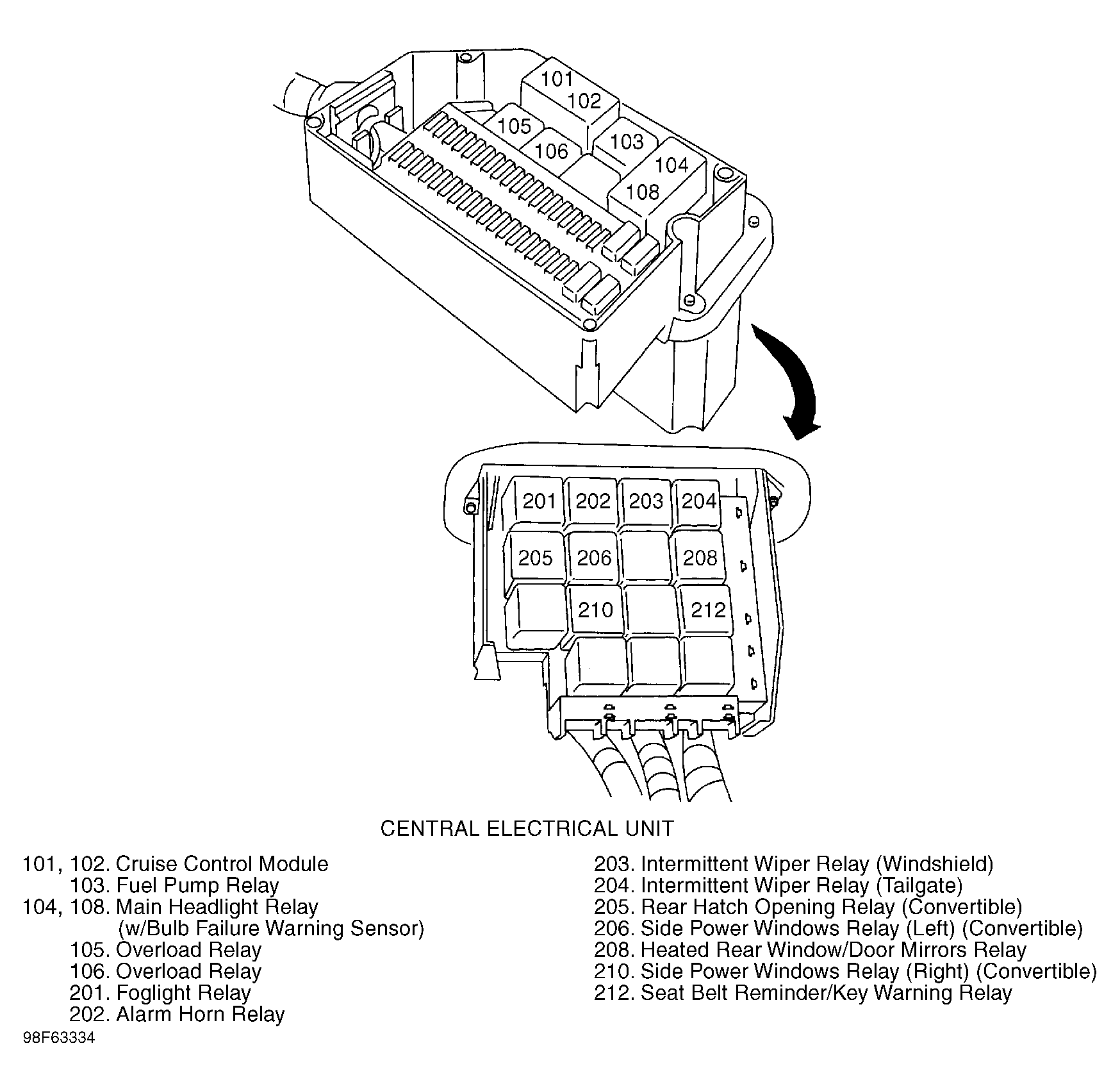

Fig 5: Central Electrical Unit
