Vehicle Information Label Locations

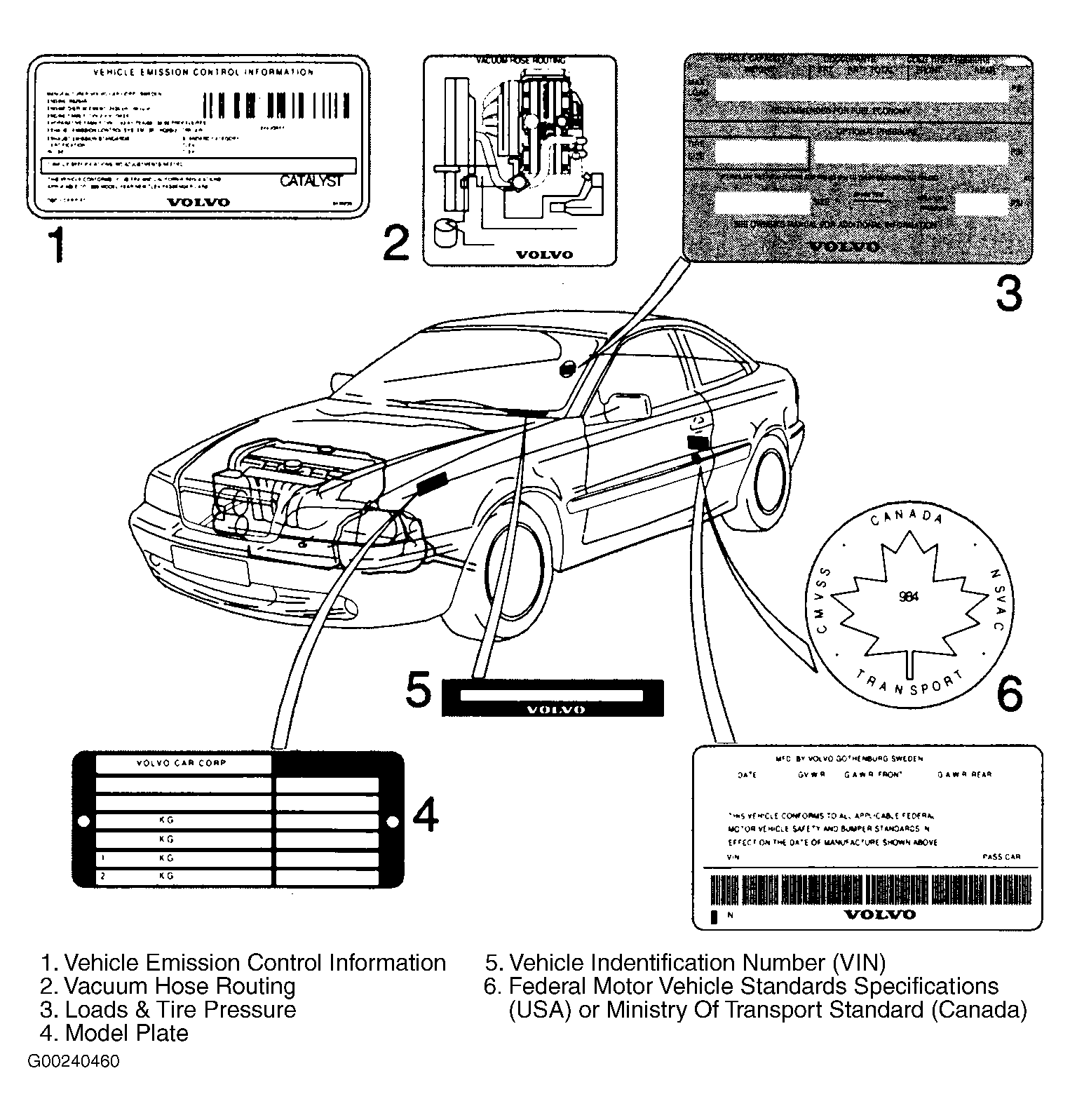

Fig 1: Locating Vehicle Information Labels (C70)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 2: Locating Vehicle Information Labels (S70 & V70)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 3: Locating Vehicle Information Labels (S80)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
