Removal & Installation

Dynamic Stability Assistance (DSA) Control Module is located under right side A-pillar trim next to blower fan. Remove trim and mounting bolt to remove module. Reverse procedure to install. See Fig 1.

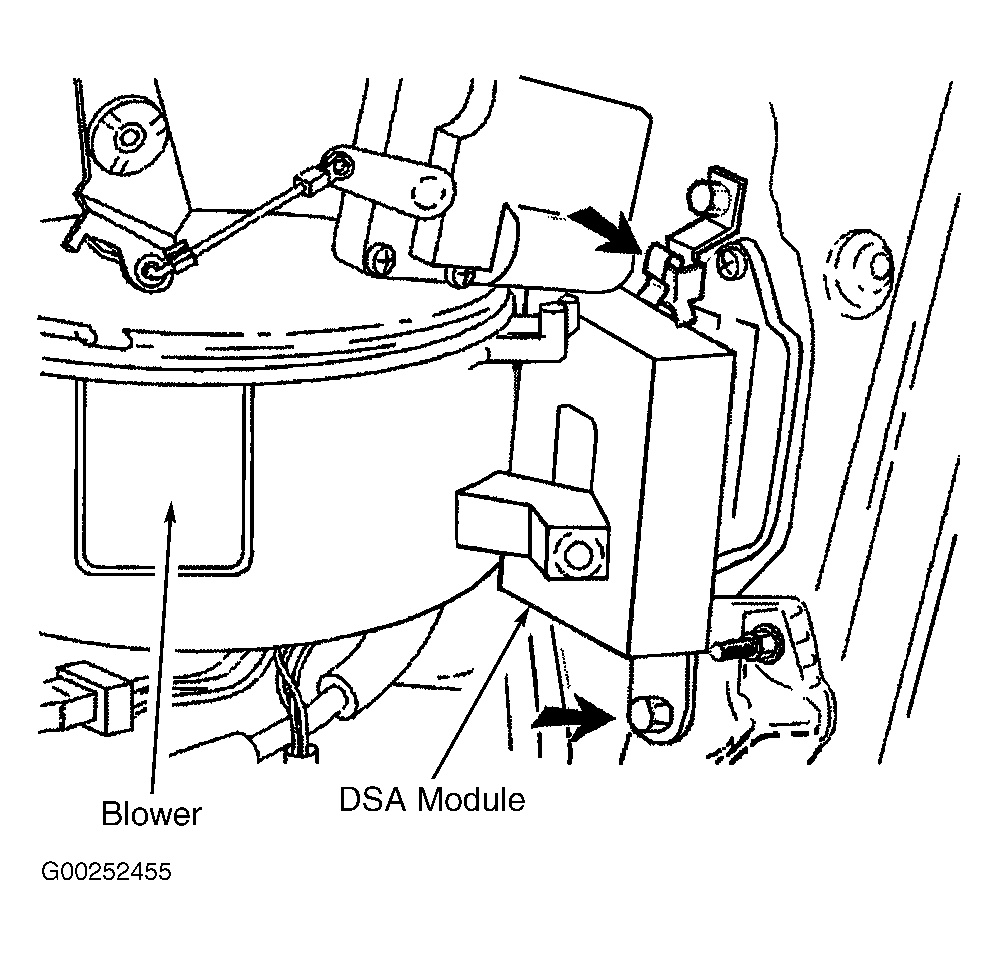

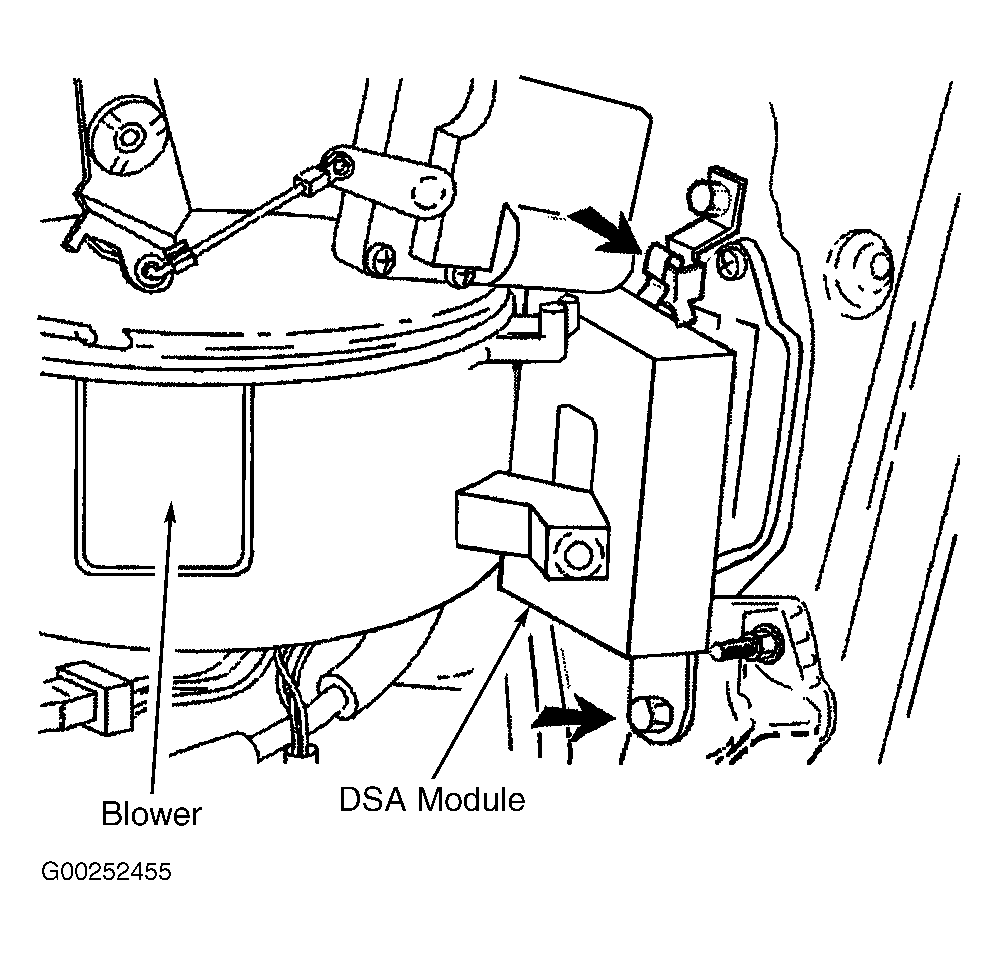

Fig 1: Removing & Installing DSA Control Module
G00252455Courtesy of VOLVO CARS OF NORTH AMERICA.
