Installing the Control Module

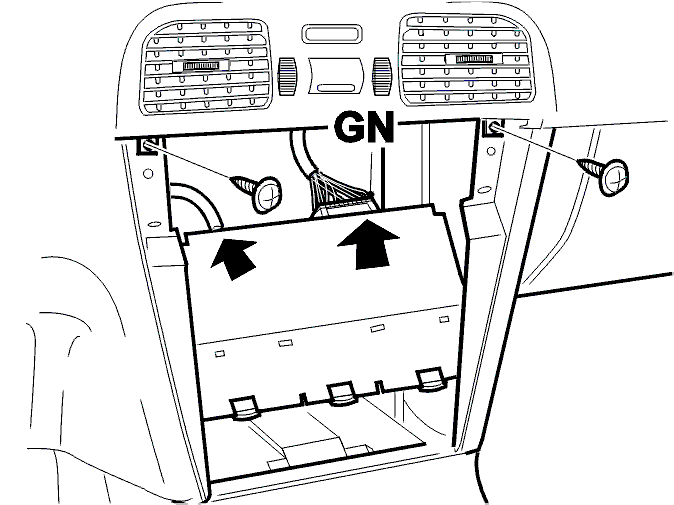

Fig 1: Dashboard Environment Panel
Courtesy of VOLVO CARS OF NORTH AMERICA.
Connect the green connector (GN)
Connect the air hose
Position the heater unit
Install the 2 screws.

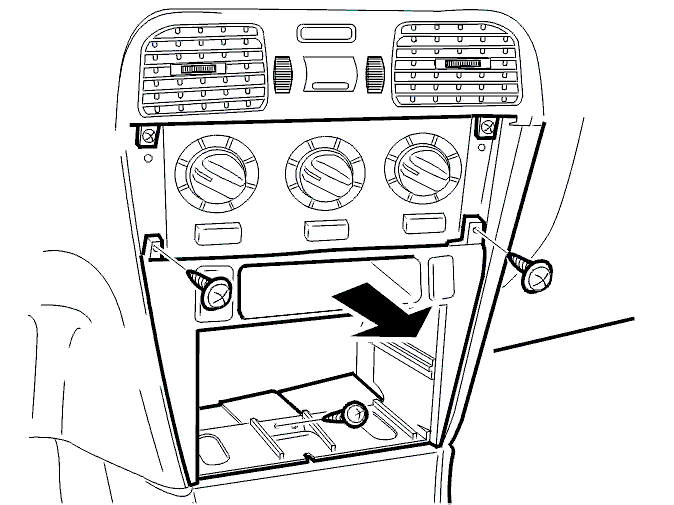

Fig 2: Identifying Control Panel Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
Connect the connectors
Install the dashboard
Install the 3 screws.
