Installing engine control module (ECM)
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Plug in the connectors and check so that they are connected correctly.

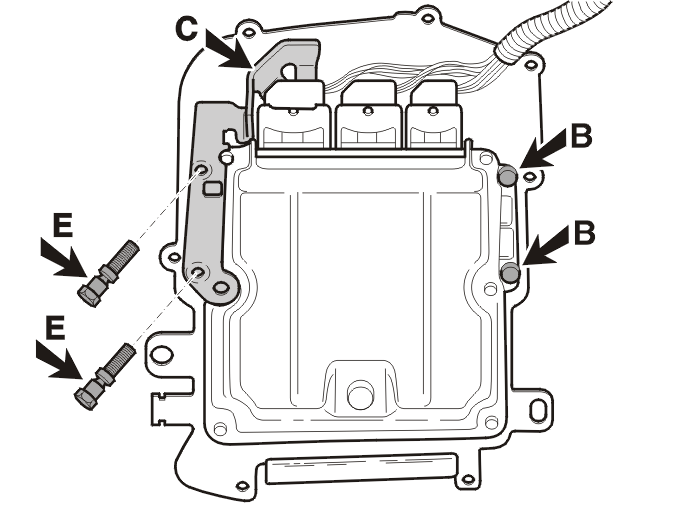

- Install the engine control module and install the cable clamp.
- Install both screws (B) and tighten with fingers.
- Install the safety brace (C) with 2 new shear screws, tighten with fingers.
- Tighten the screws (B) with 10 Nm
and the shear screws (2 pcs.) until the screw heads break off.
- Check that the casing's seal is positioned correctly and is intact.
- Install the casing and tighten the screws.
