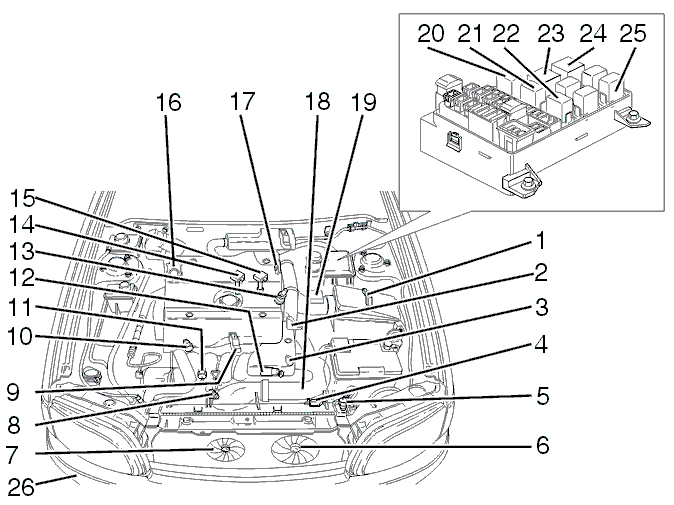

| 1 |
Turbocharger (TC) control valve (turbocharged models only) |
On the rear side of the air cleaner (ACL) housing. |
| 2 |
Engine speed (RPM) sensor |
On the left-hand side of the engine at the flywheel. |
| 3 |
Throttle position (TP) sensor |
On the throttle body (TB) |
| 4 |
Canister purge (CP) valve |
On the upper left side of the radiator |
| 5 |
A/C pressure sensor |
- |
| 6 |
Engine cooling fan (FC) |
The left fan behind the radiator |
| 7 |
A/C fan |
The right fan behind the radiator |
| 8 |
Intake air temperature (IAT) sensor, turbocharged models |
On the charge air pipe between the throttle body (TB) and the charge air cooler (CAC) |
| 9 |
Boost pressure sensor 2 (turbocharged models only) |
On the intake manifold between the cylinder 3 and 4 |
| 10 |
Engine coolant temperature (ECT) sensor |
At the thermostat housing |
| 11 |
Knock sensor (KS) |
The front of the engine between cylinders 2 and 3 |
| 12 |
The idle air control (IAC) valve |
On the intake manifold |
| 13 |
PCV element (turbocharged models only) |
At the turbocharger (TC) |
| 14 |
Ignition coil |
Cylinders 2 and 3 |
| 15 |
Ignition coil |
Cylinders 1 and 4 |
| 16 |
Continuous Variable Valve Timing (CVVT) valve |
On the cylinder head. Turbo charger (TC): Above the exhaust camshaft. Intake: Above the intake camshaft |
| 17 |
Camshaft position sensor (CMP) |
On the camshaft. |
| 18 |
Boost pressure sensor 1 (turbocharged models only) |
On the charge air pipe between the throttle body (TB) and the charge air cooler (CAC) |
| 19 |
Mass air flow (MAF) sensor |
On the air cleaner (ACL) housing |
| 20 |
Engine cooling fan (FC) relay, half speed |
In the integrated relay/fusebox, engine compartment |
| 21 |
Air conditioning (A/C) compressor relay |
In the integrated relay/fusebox, engine compartment |
| 22 |
Air conditioning (A/C) condenser fan relay |
In the integrated relay/fusebox, engine compartment |
| 23 |
Engine cooling fan (FC) relay, full speed |
In the integrated relay/fusebox, engine compartment |
| 24 |
System relay |
In the integrated relay/fusebox, engine compartment |
| 25 |
Fuel pump relay. (Bi-fuel only) |
In the integrated relay/fusebox, engine compartment |
| 26 |
EVAP canister |
At the right-hand front fender |
