Component Locations

Fig 1: Locating Data Link Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

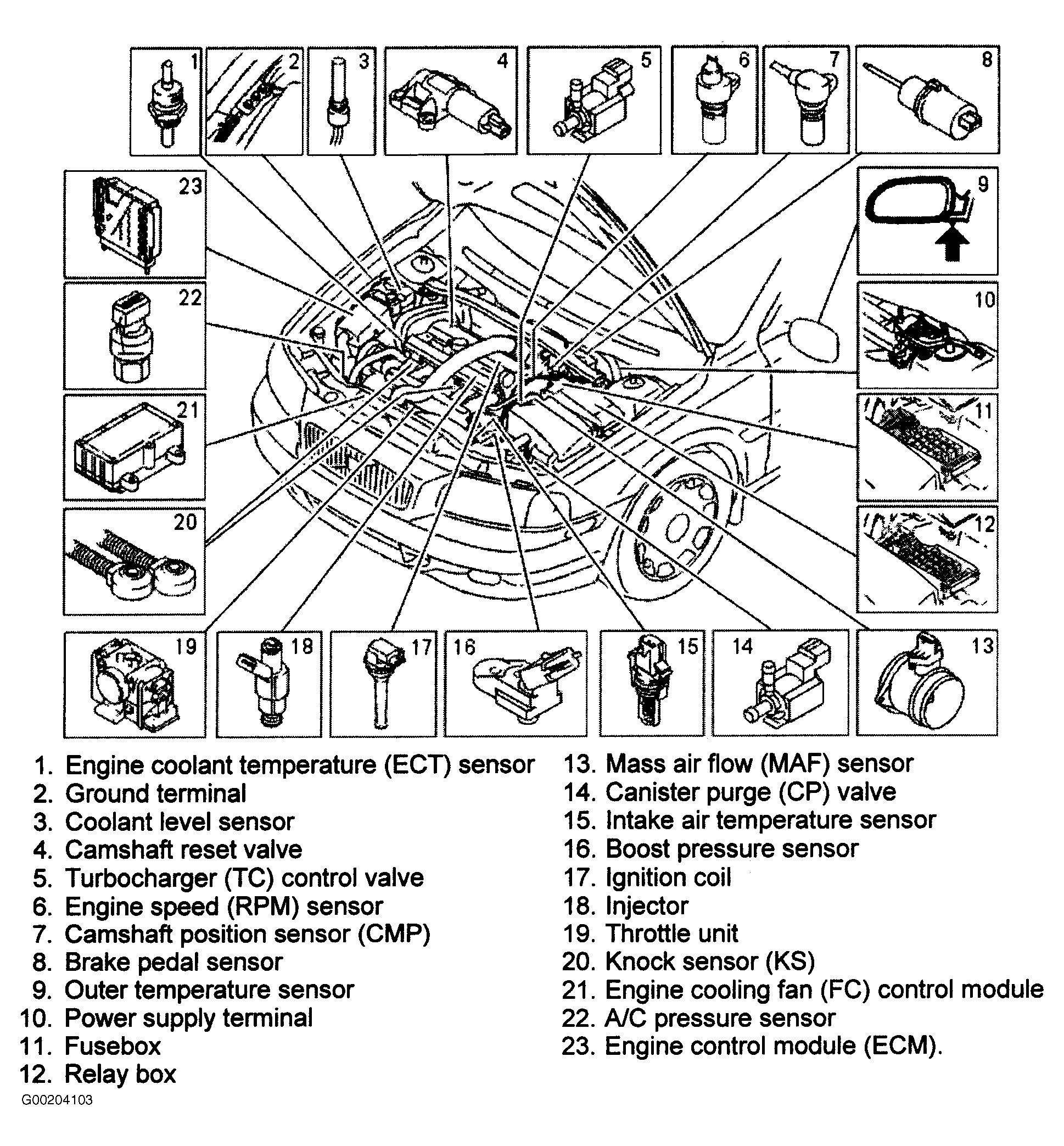

Fig 2: C70 Component Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

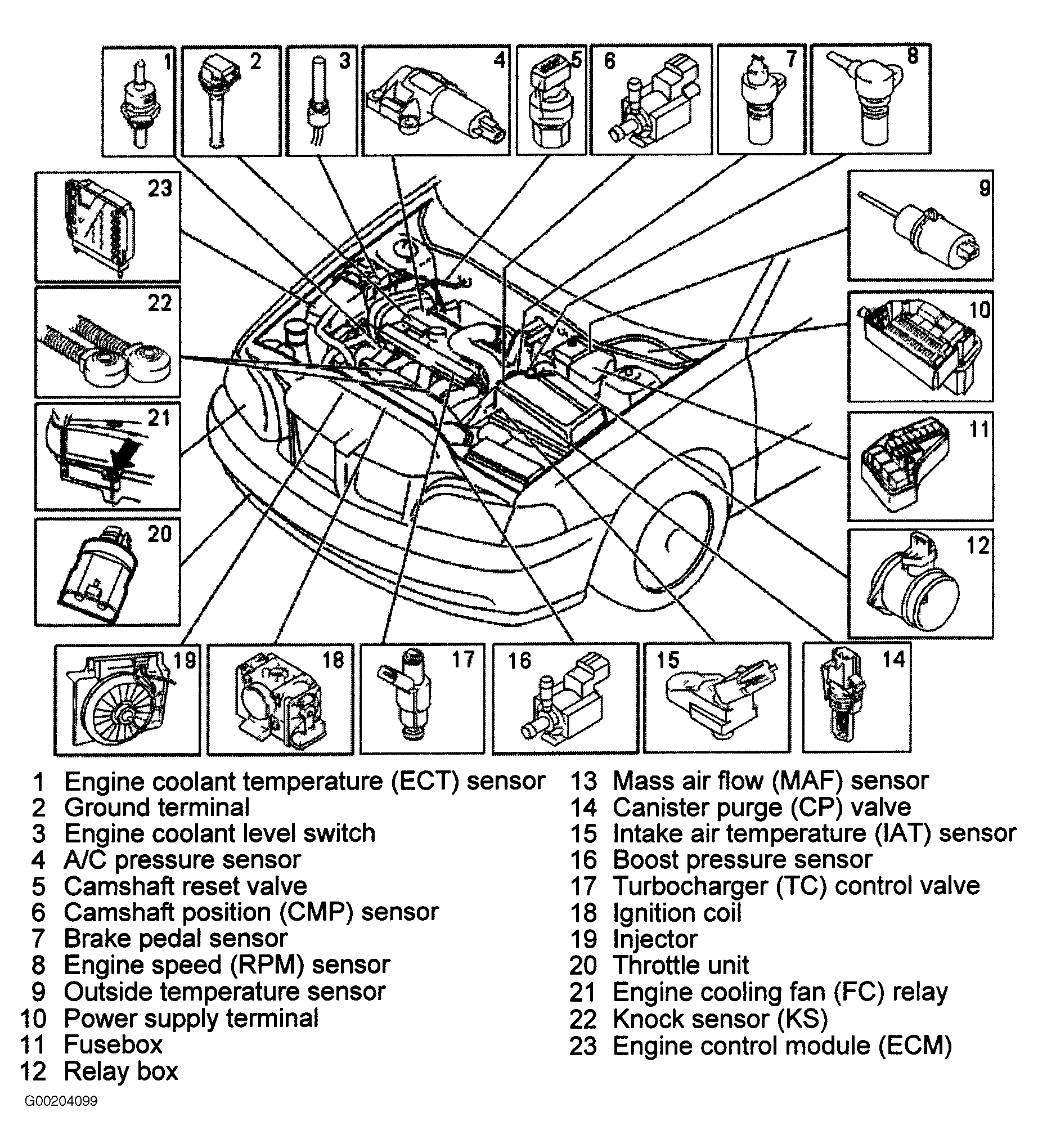

Fig 3: S70 Turbo & V70 Turbo Component Location

Courtesy of VOLVO CARS OF NORTH AMERICA.

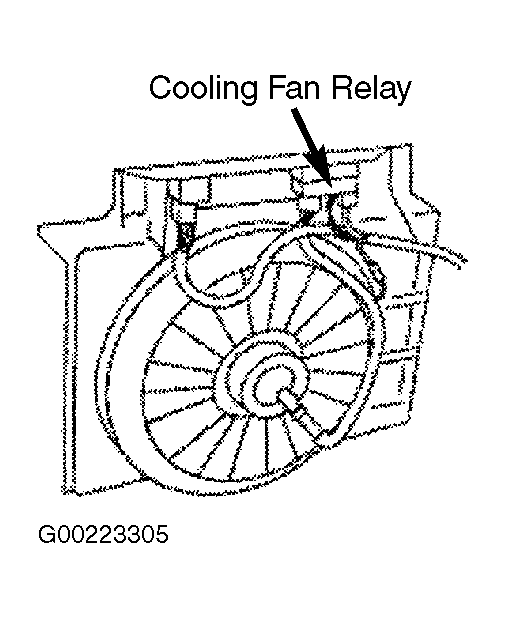

Fig 4: Locating Cooling Fan Relay

Courtesy of VOLVO CARS OF NORTH AMERICA.

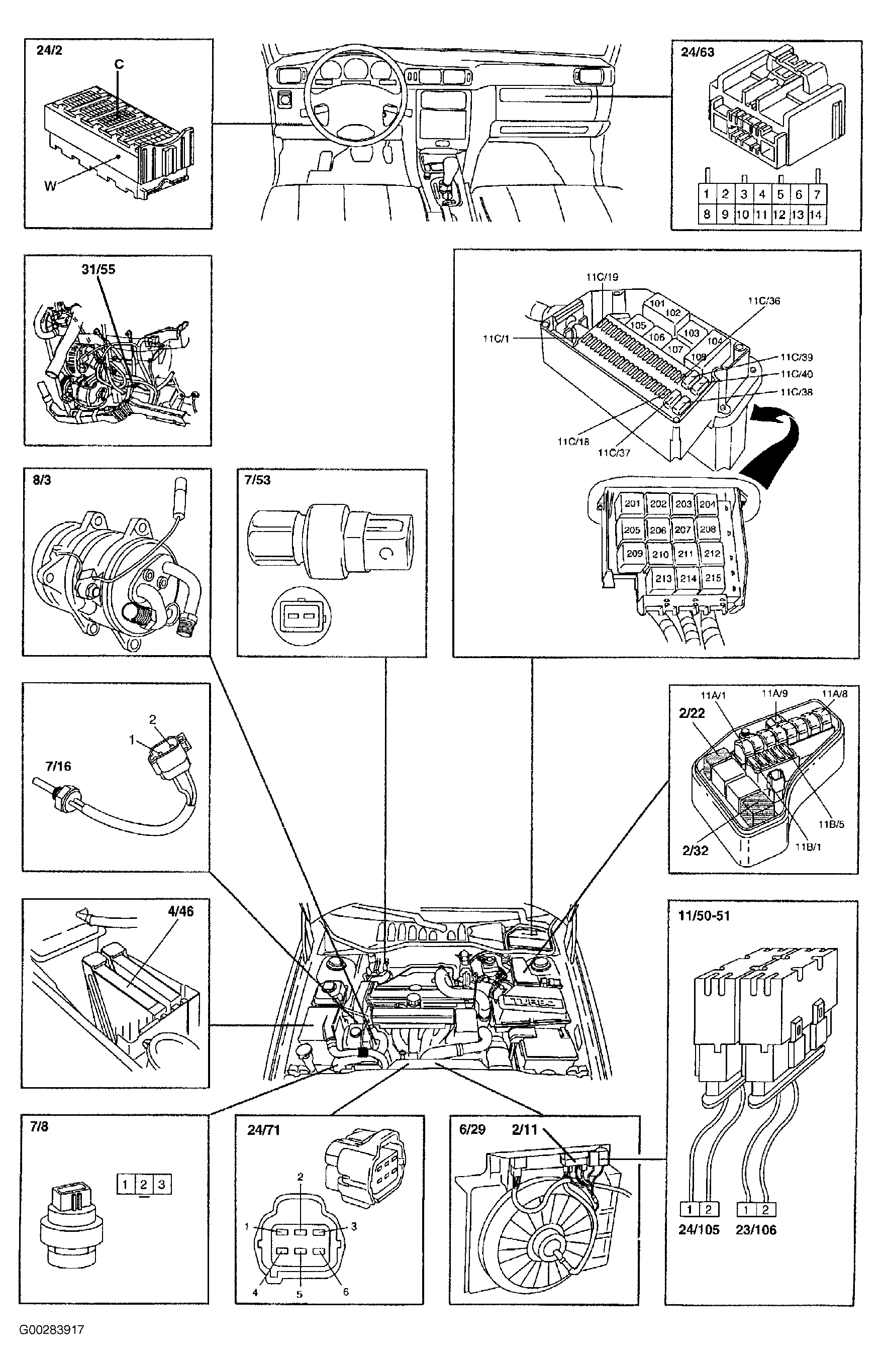

Fig 5: Locating Cooling Fan Components (2000)

Courtesy of VOLVO CARS OF NORTH AMERICA.

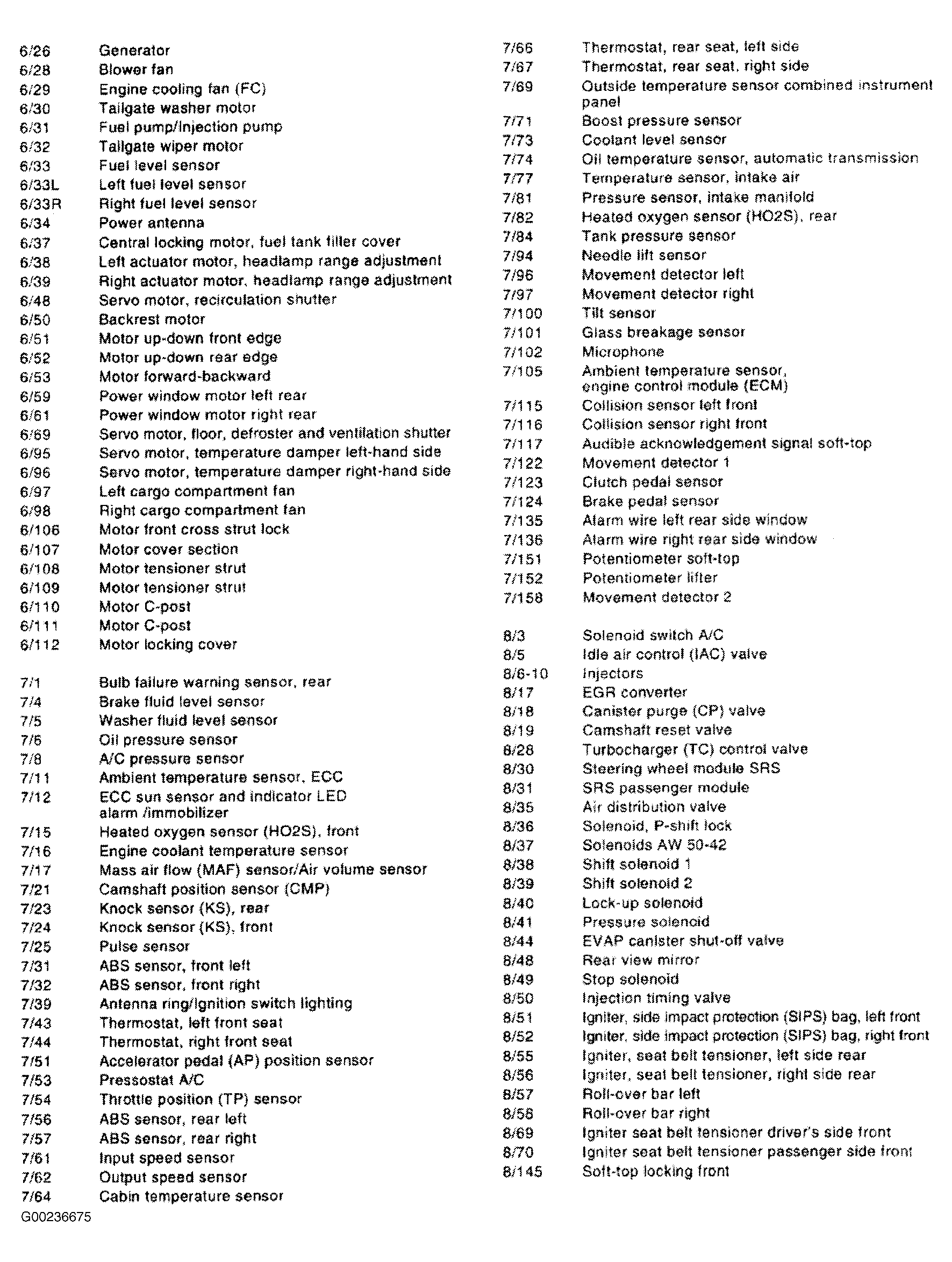

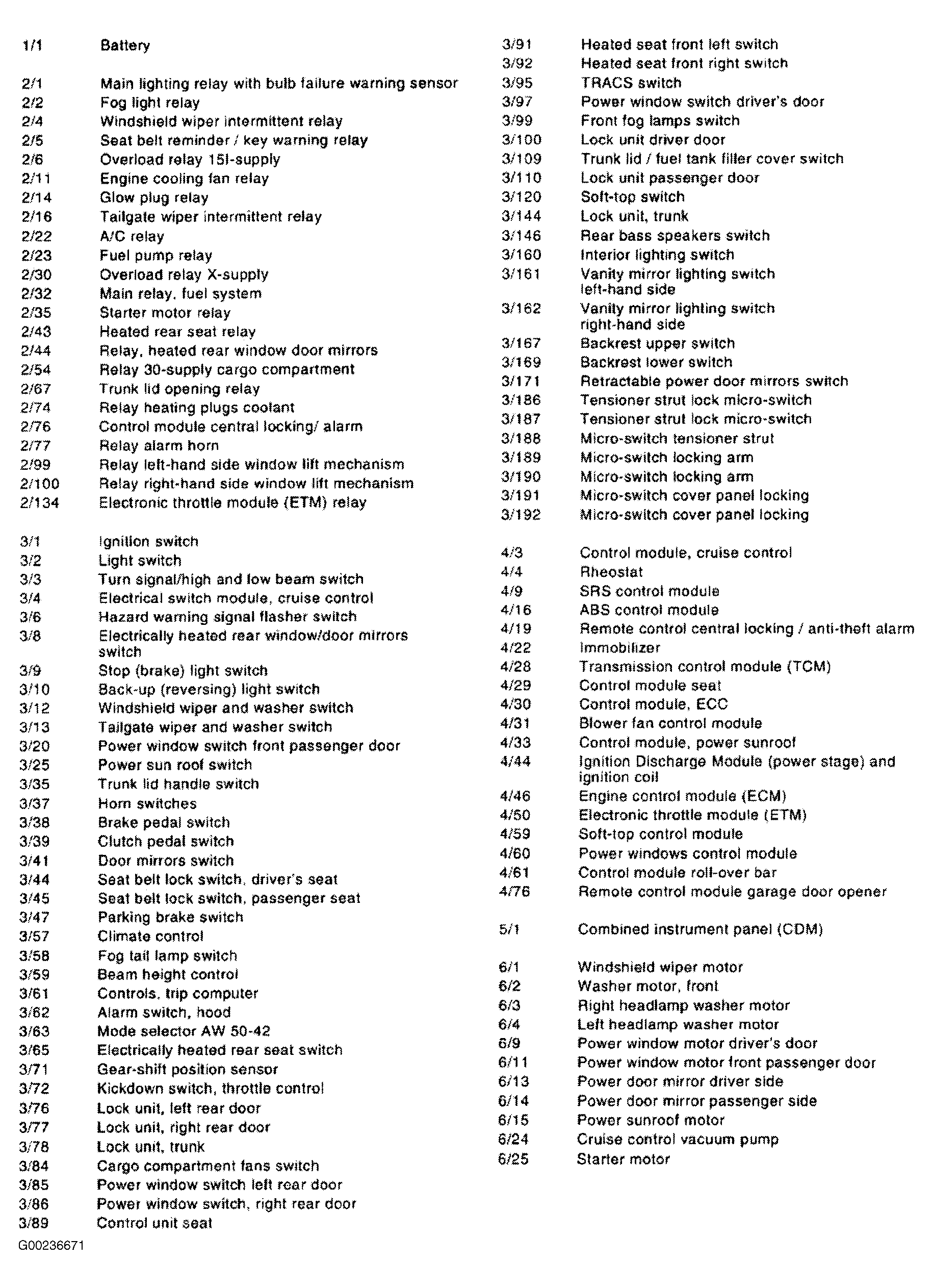

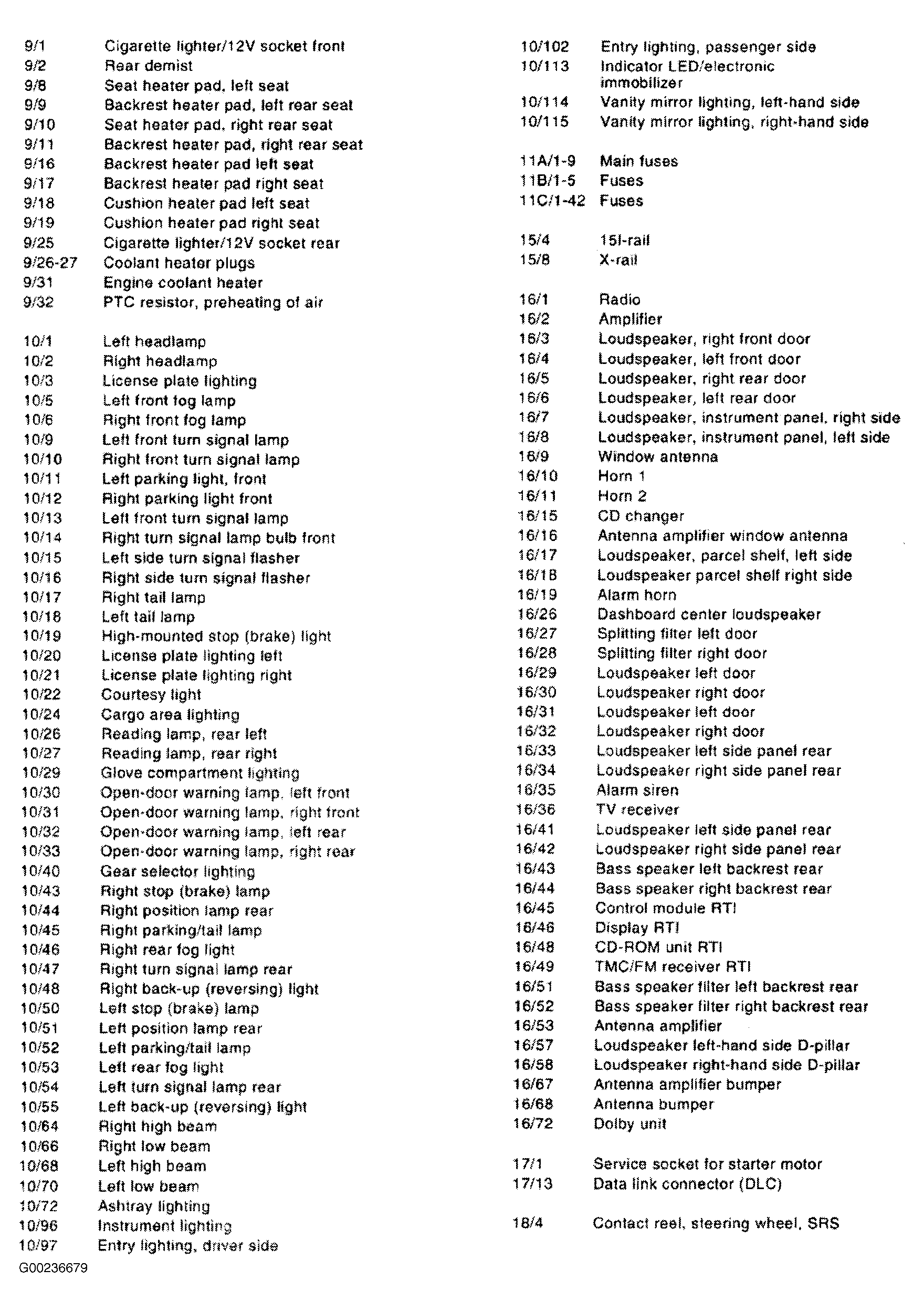

Fig 6: Cooling Fan Component Identification List (1 of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Cooling Fan Component Identification List (2 of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Cooling Fan Component Identification List (3 of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Cooling Fan Component Identification List (4 of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

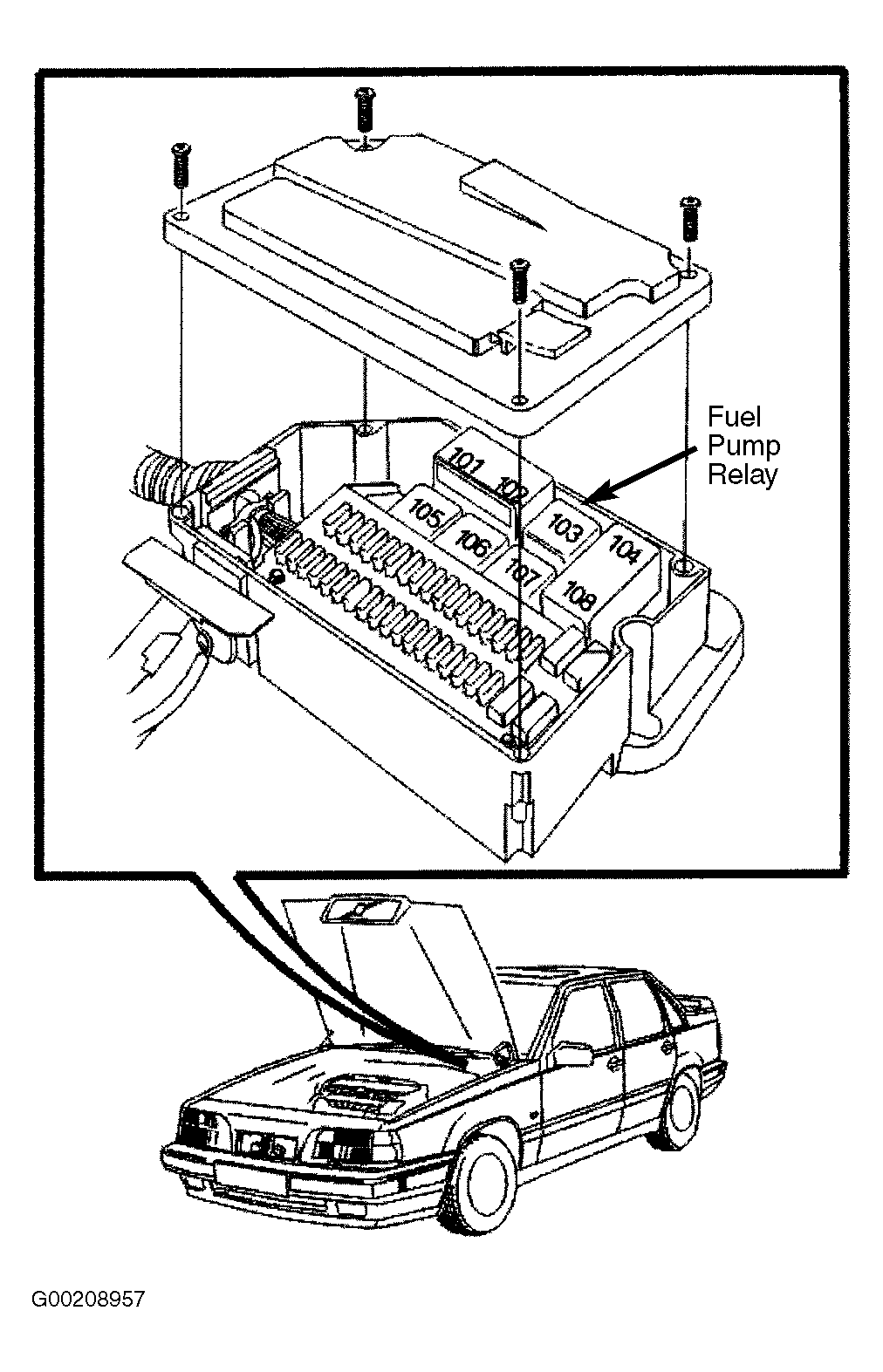

Fig 10: Locating Fuel Pump Relay

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: System relay may also be called main relay engine management.

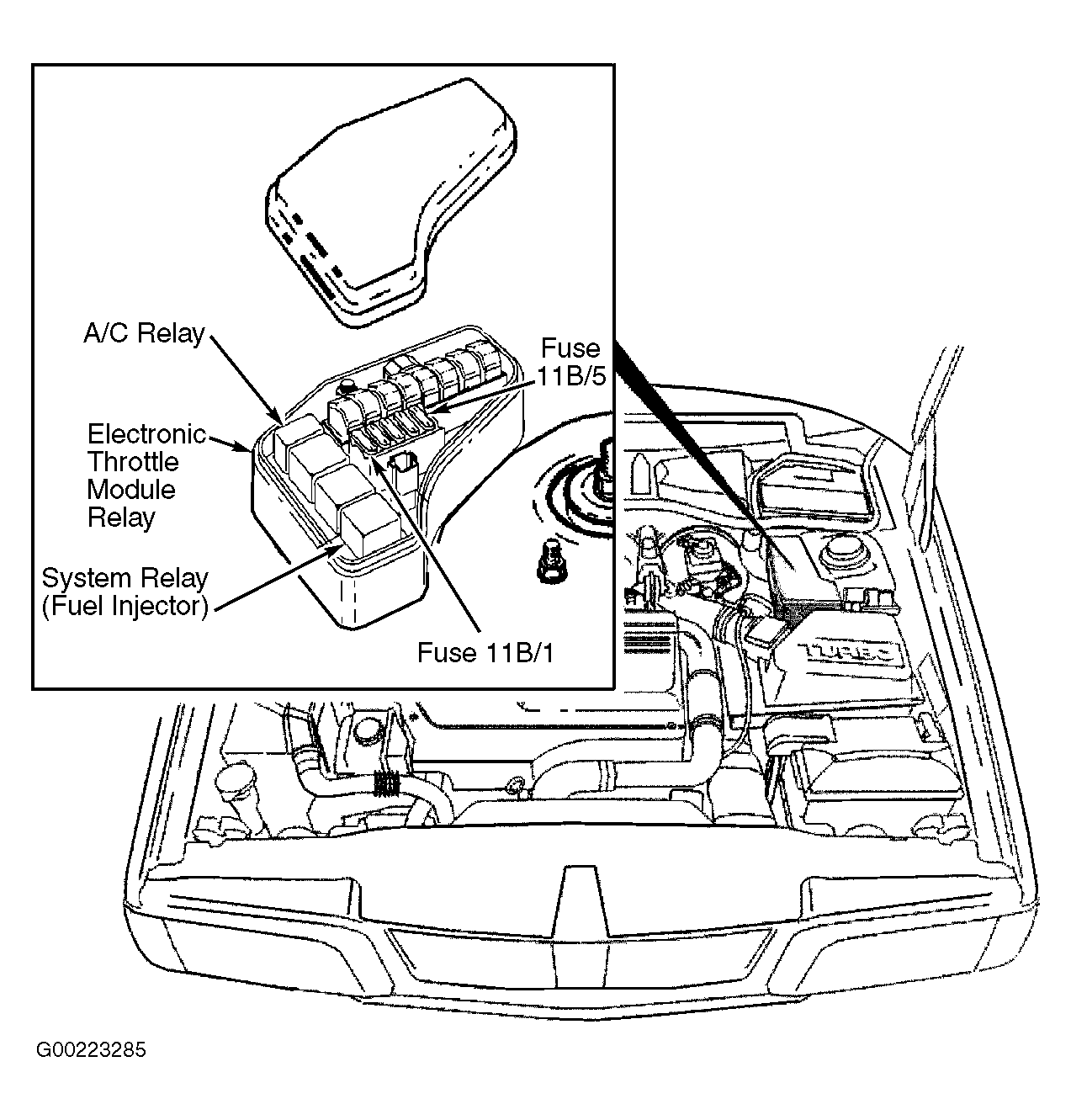

Fig 11: Locating A/C Relay, Electronic Throttle Module Relay & System Relay

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: For C70, S70 and V70 FWD models, EVAP canister shut-off valve is located the EVAP canister. EVAP canister is located under right, rear section of vehicle. See Fig 12.

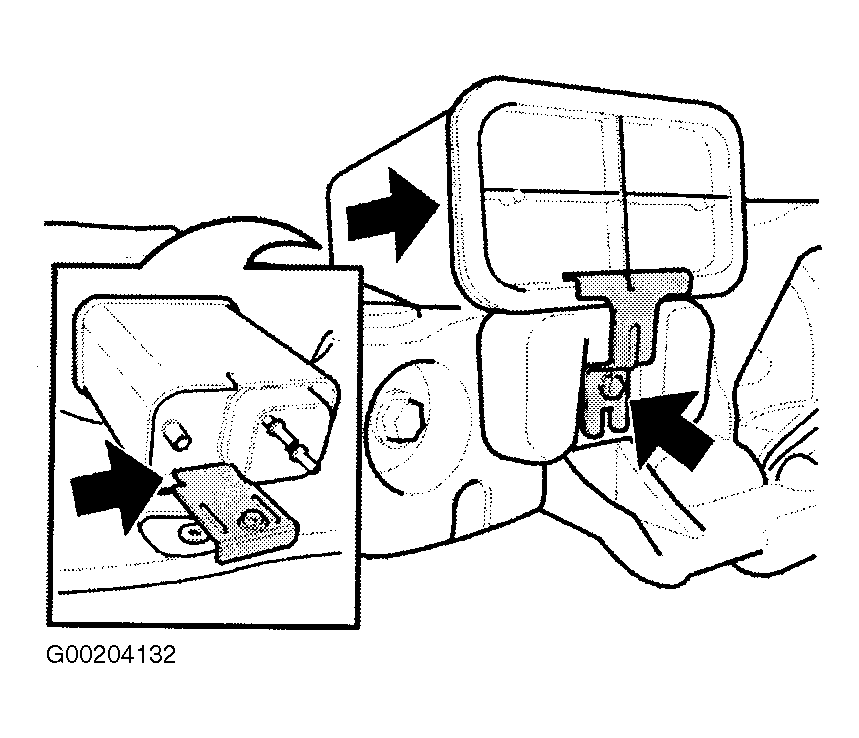

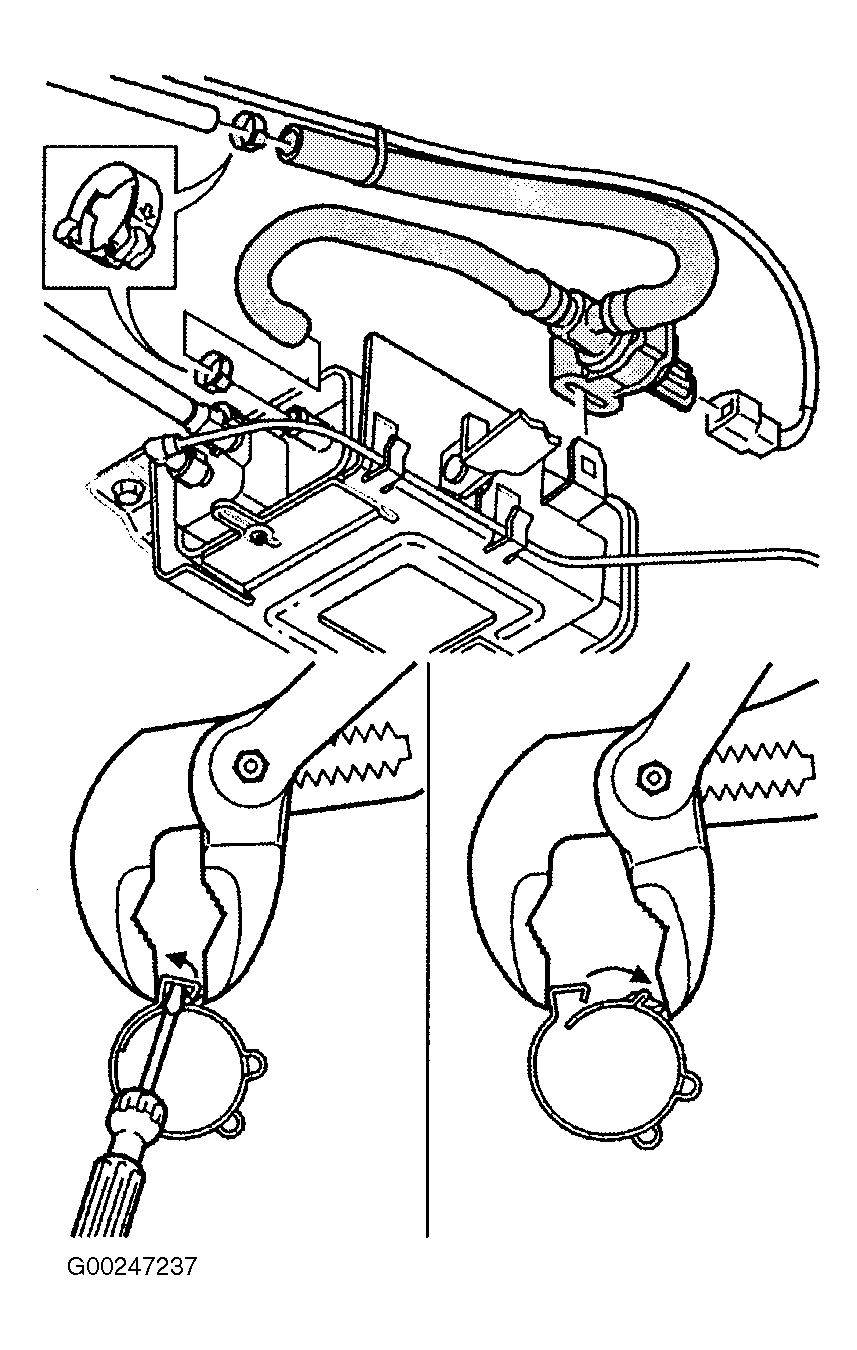

Fig 12: Locating EVAP Canister & EVAP Canister Shut-Off Valve (C70, S70 & V70 Except AWD Models)

Courtesy of VOLVO CARS OF NORTH AMERICA.

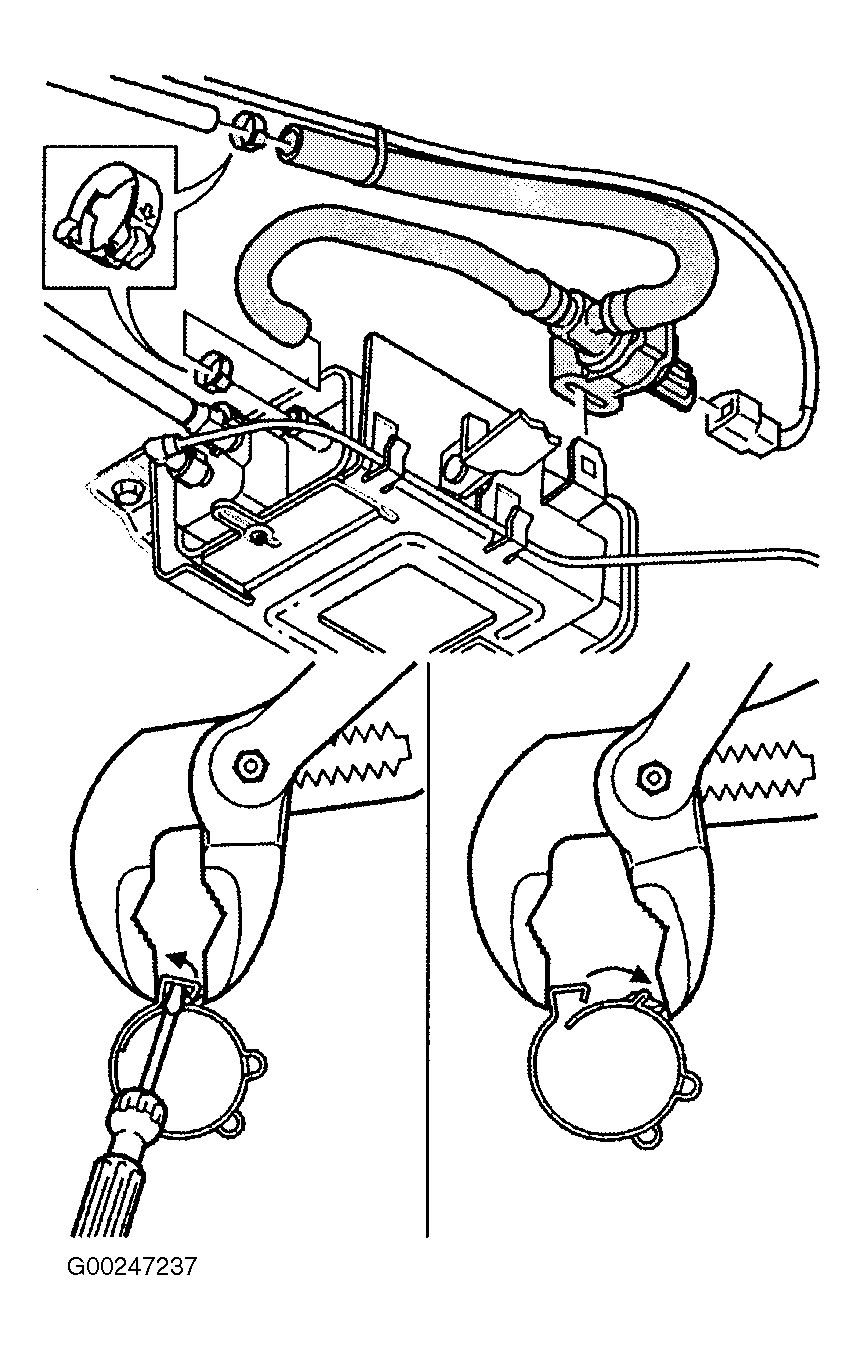

Fig 13: Locating EVAP Canister On Rear Subframe (C70 & V70 AWD Models)

Courtesy of VOLVO CARS OF NORTH AMERICA.
