Connecting & Disconnecting Breakout Box: Notes
NOTE:
Breakout box is designed to facilitate reading out control module input and output signals when control module is connected; and cable and component resistance when control module is disconnected. The use of a breakout box reduces risk of accidental short circuits and damage.

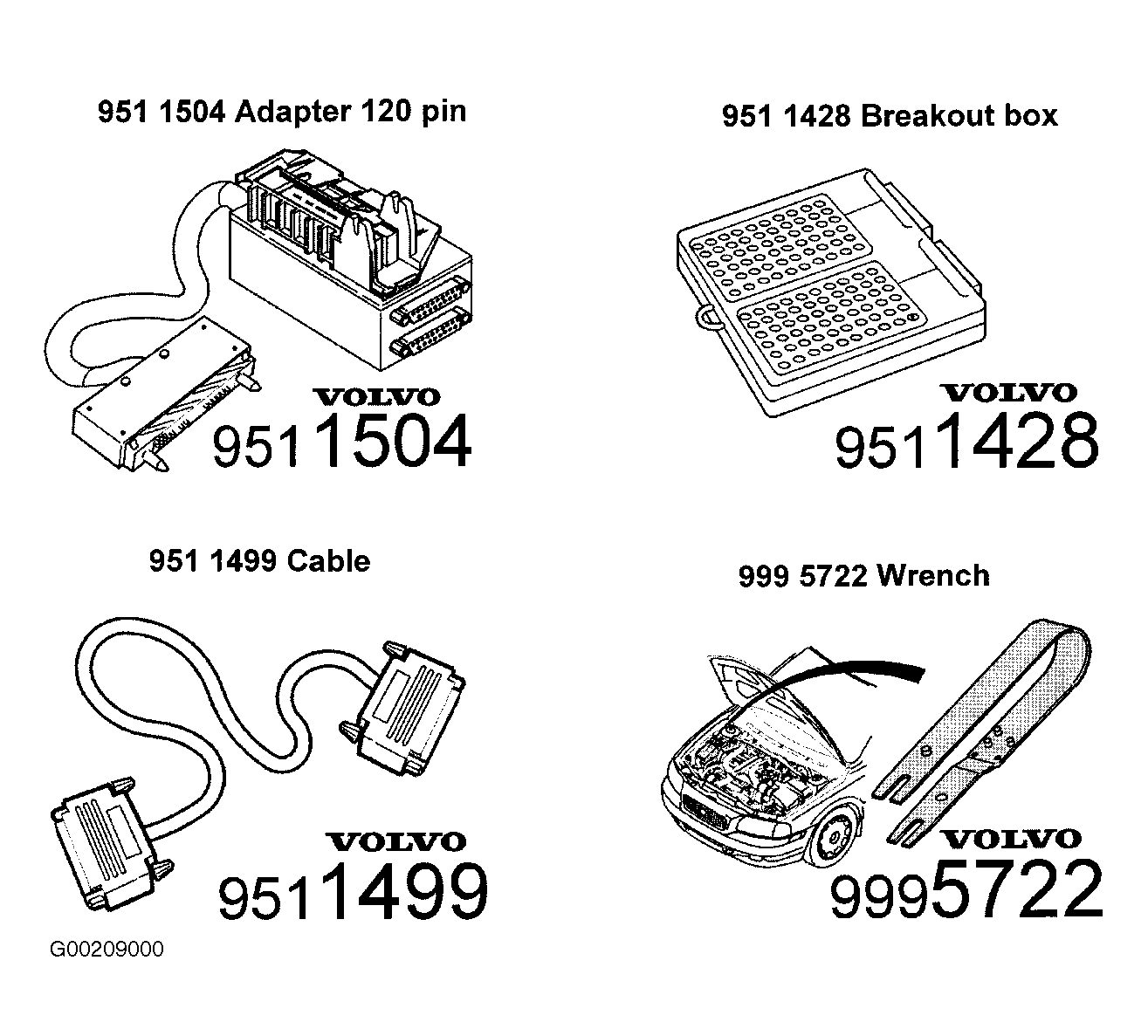

See Figure for breakout box component identification.
