Solenoid Test

With starter on bench, connect negative battery lead to starter solenoid terminal "M". Connect positive battery lead to solenoid terminal No. 50. See Fig 1 . If plunger does not extend firmly, replace solenoid.

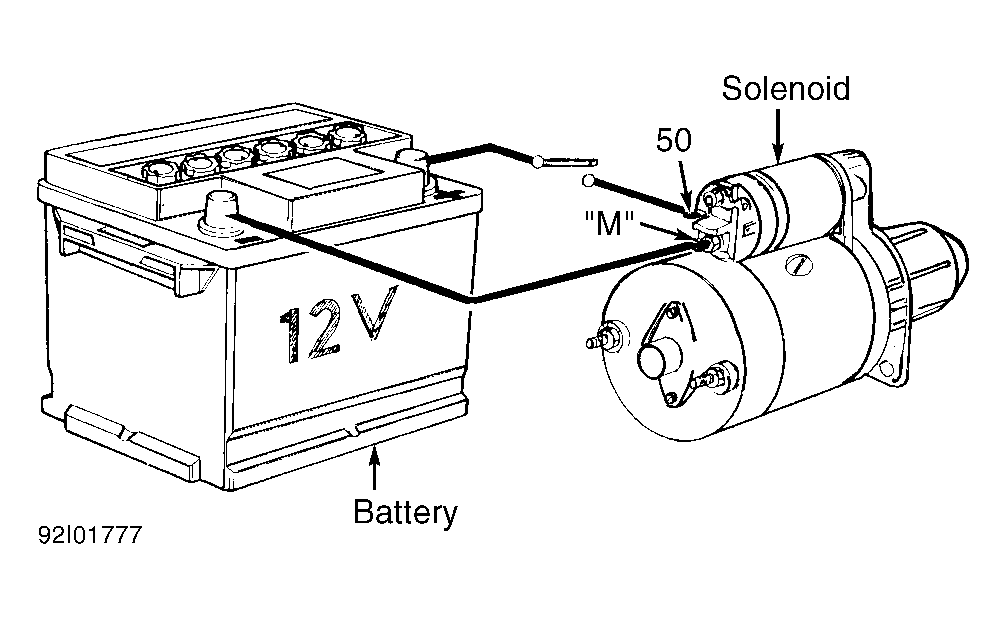

Fig 1: Testing Starter Solenoid

Courtesy of VOLVO CARS OF NORTH AMERICA.
