Rear Adjustment (AWD Models)

Unscrew the nut for inner bolt on the track rod slightly. Adjust by turning the eccentric bolts to increase or decrease toe-in. See Fig 1 . Tighten bolt to 66 ft. lbs. (90 N.m).

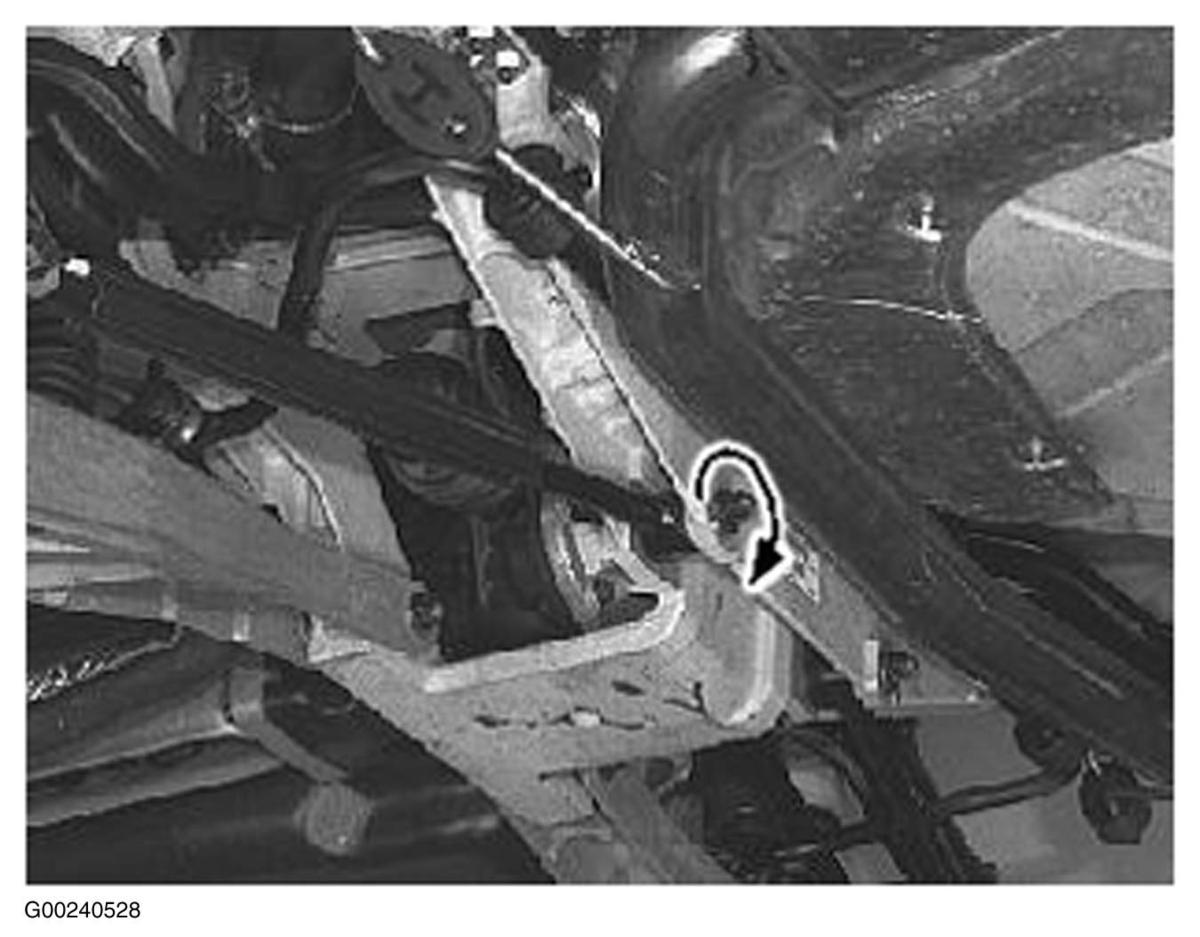

Fig 1: Adjusting Rear Toe-In (AWD Models)

Courtesy of VOLVO CARS OF NORTH AMERICA.
