Rear Adjustment (FWD Models)

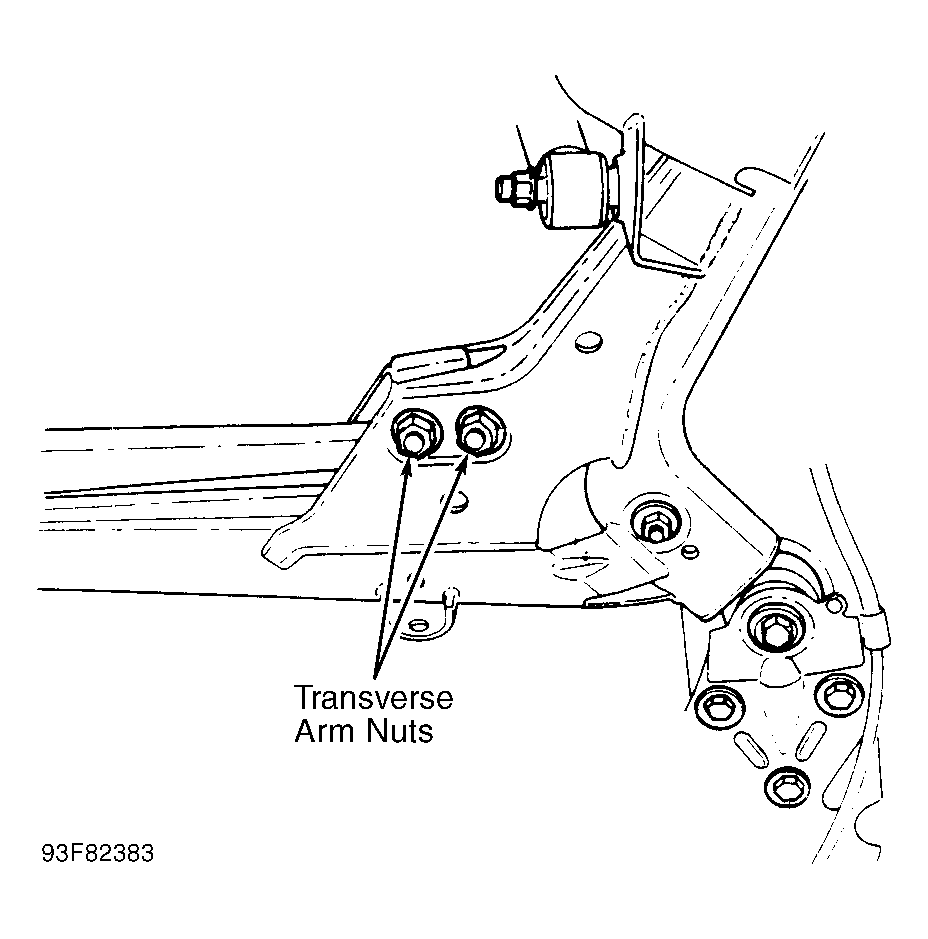

- To adjust toe-in, loosen transverse arm nuts. See Fig 1
. Move transverse arms forward or rearward until correct value is obtained. Tighten one nut on each transverse arm anchor to lock it in relation to other trailing arm.
- Replace other bolts and nuts that are not tightened with new bolts or nuts. Tighten nuts to 37 ft. lbs. (50 N.m), then tighten an additional 120 degrees. Replace 2 previously tightened bolts and nuts. Tighten to specification.
Courtesy of VOLVO CARS OF NORTH AMERICA.
