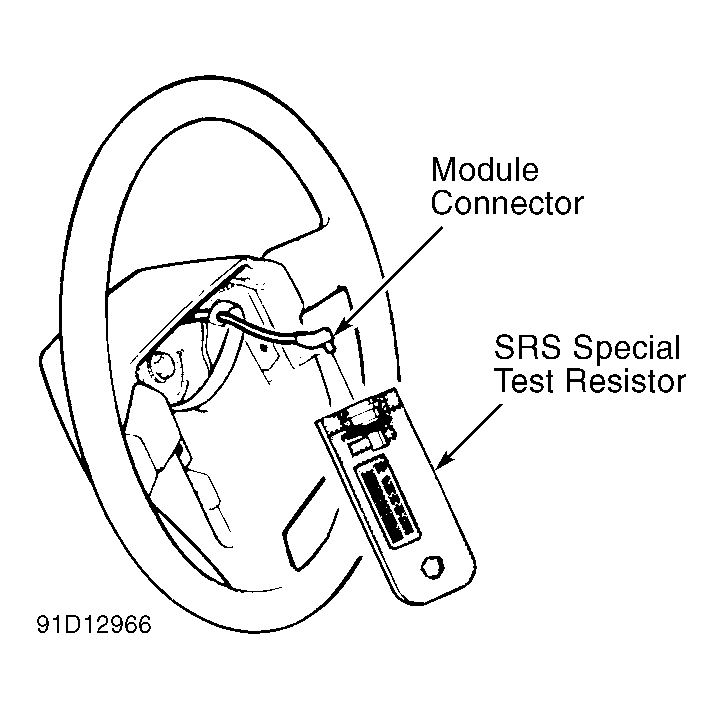

SRS Test Resistor
- Connect SRS Special Test Resistor (998-8695) to contact reel wiring connector in place of air bag module. See Fig 1. Activate SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Courtesy of VOLVO CARS OF NORTH AMERICA
- Turn ignition switch to ON position and ensure SRS warning light goes out after 10 seconds. If light does not go out, a fault code is set and memory must be cleared. After clearing fault codes, recheck SRS light operation. Perform SYSTEM OPERATION CHECK. See AIR BAG RESTRAINT SYSTEMS article in ACCESSORIES/SAFETY EQUIPMENT section.
- If SRS warning light goes out after about 10 seconds, turn off ignition, disconnect negative battery cable and remove Special Test Resistor (998-8695) from air bag module connector. Position air bag module to steering wheel, and install wiring connector. Ensure wiring connector clicks into position. Install air bag module and steering wheel. See AIR BAG MODULE & STEERING WHEEL under REMOVAL & INSTALLATION .
