Steering Wheel Lock: Installation

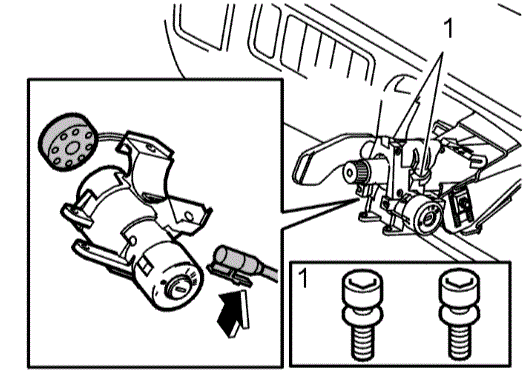

- Position the new steering wheel lock
- Install new security screws (1).
NOTE:
Do not forget to connect the disassembled connector.
CAUTION:
Ensure that the boot for the windshield wiper lever is in place
CAUTION:
Ensure that no wiring is trapped when the steering column covers are installed.
- The holder for the steering lock lighting. Use a new bulb
- The slip ring
- The lever for the windshield wipers
- The lever for the turn signal lamps
- The lower cover for the steering column. Use a Torx TX 25 tool
- The upper cover for the steering column. Use long Torx TX 15 tool
- The steering wheel.
