Remove the control module

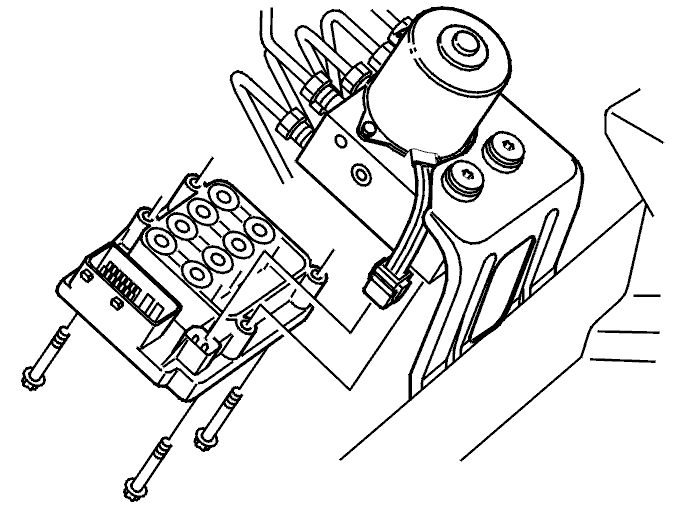

Fig 1: Locating Pump Motor Connector & Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the pump motor connector
• the four screws. Use a 6 mm torx external socket.

Carefully lift the control module.
