Generator Specifications
GENERATOR SPECIFICATIONS
| Application | Specification | |
|---|---|---|
| Carbon Brushes (Minimum Length) | 0.2" (5.0 mm) | |
| Generator | ||
| NCB 1 (BOSCH) | 120 A | |
| E140/8 (BOSCH) | 140 A | |
| Nominal Output | 1680 W | |
| Rotor Winding (Resistance) | 2.6 Ohms | |
| Stator Winding (Resistance) | .06 Ohms | |
NOTE:

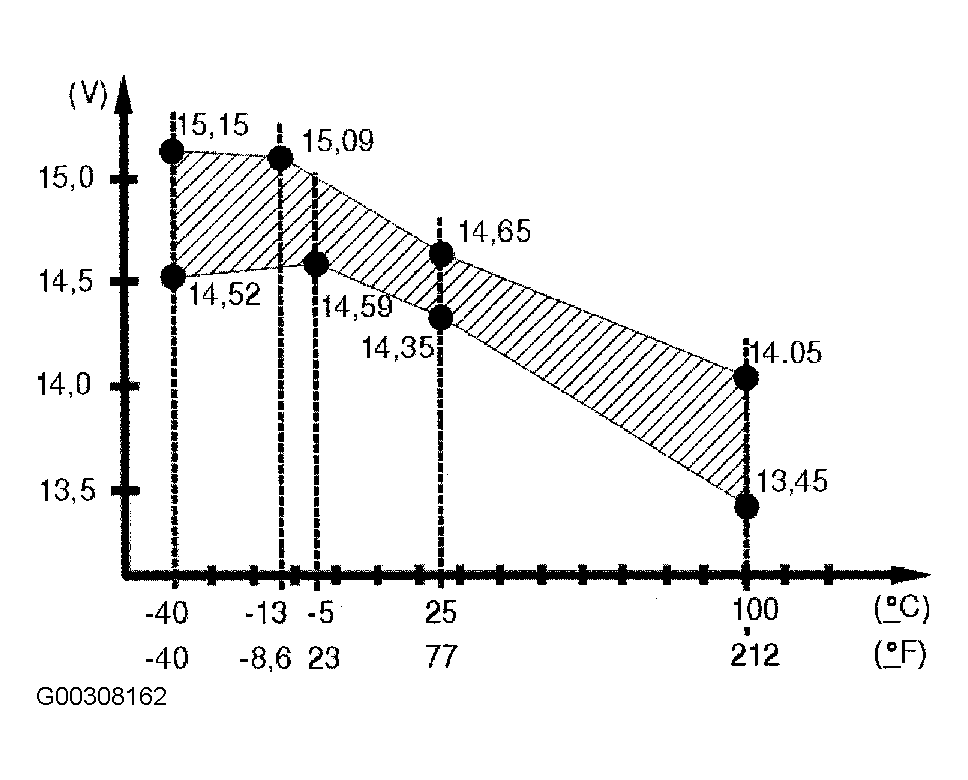

Charging voltage shown in Fig 1 is with a 25-45 amp generator load at about 2300 RPM.
