Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

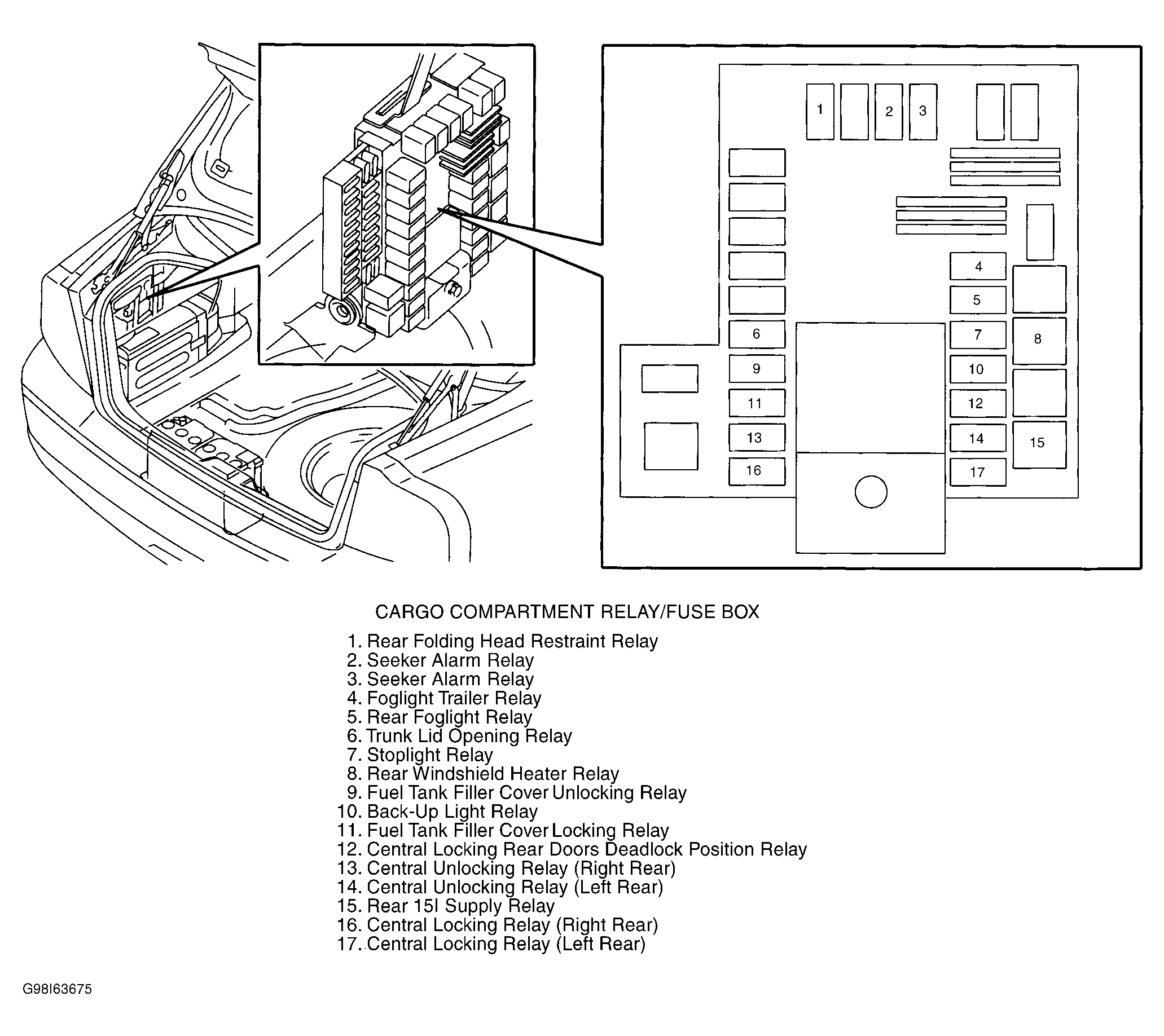

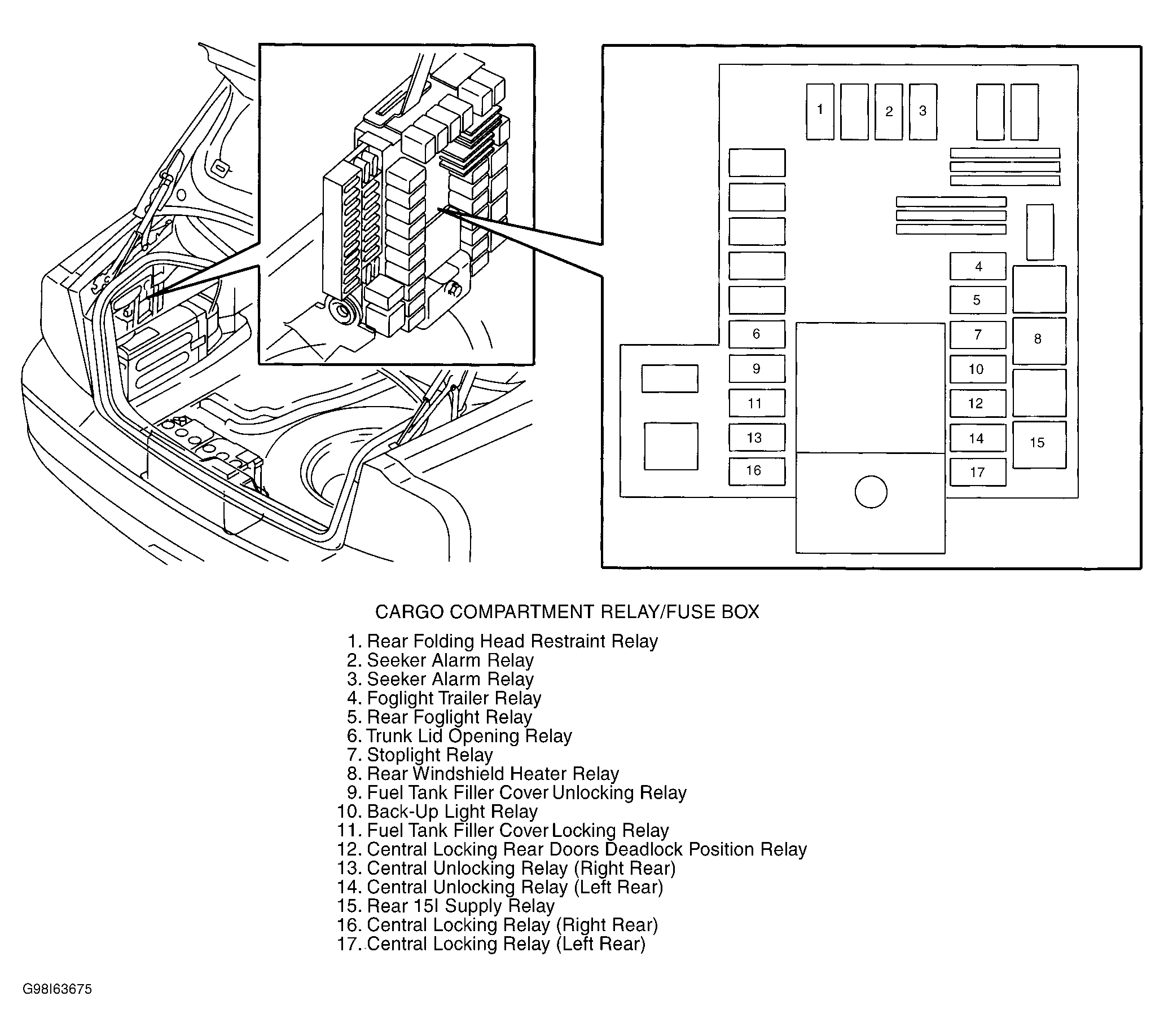

Cargo Compartment Relay/Fuse Box At left side of trunk. See Figure .

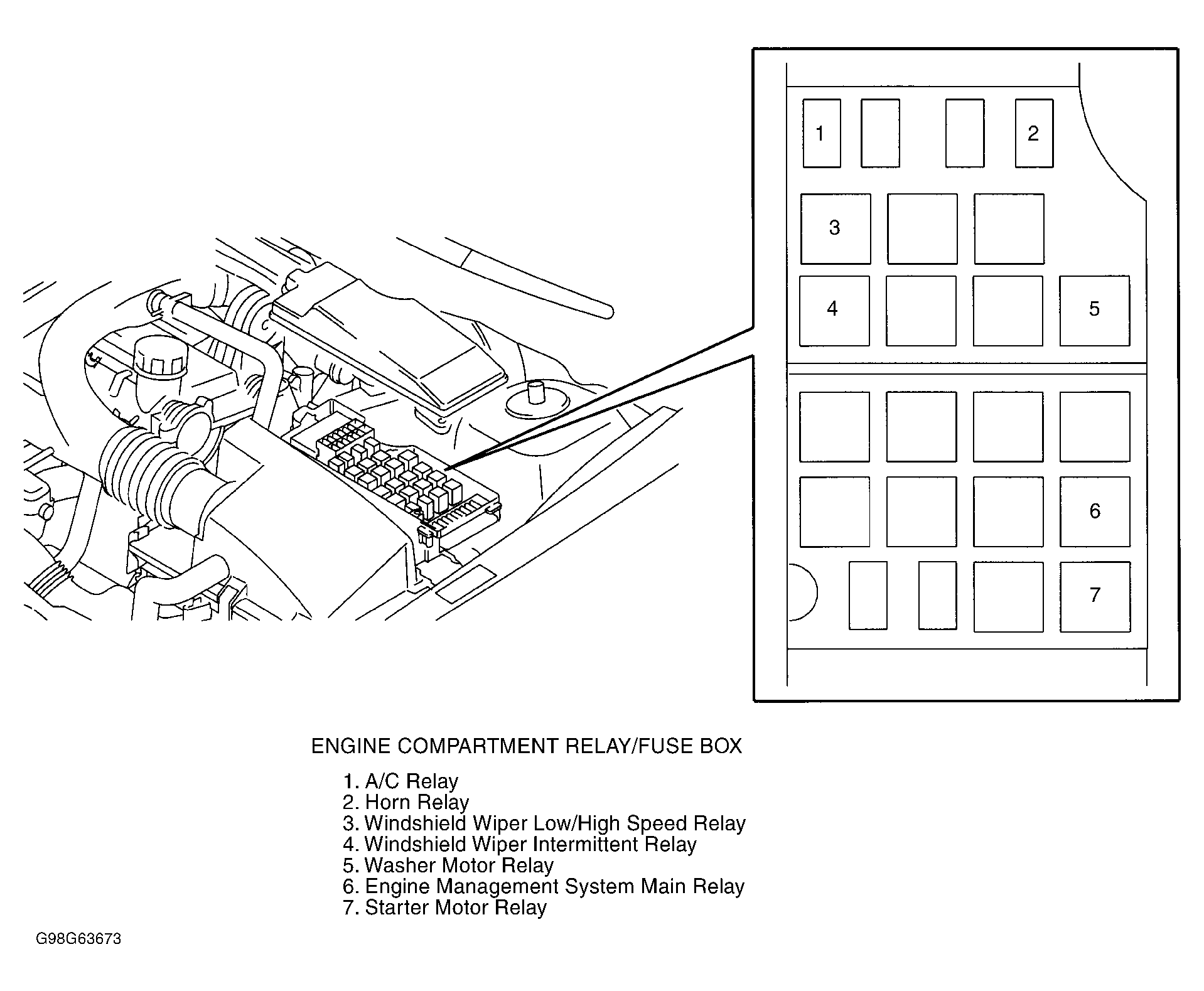

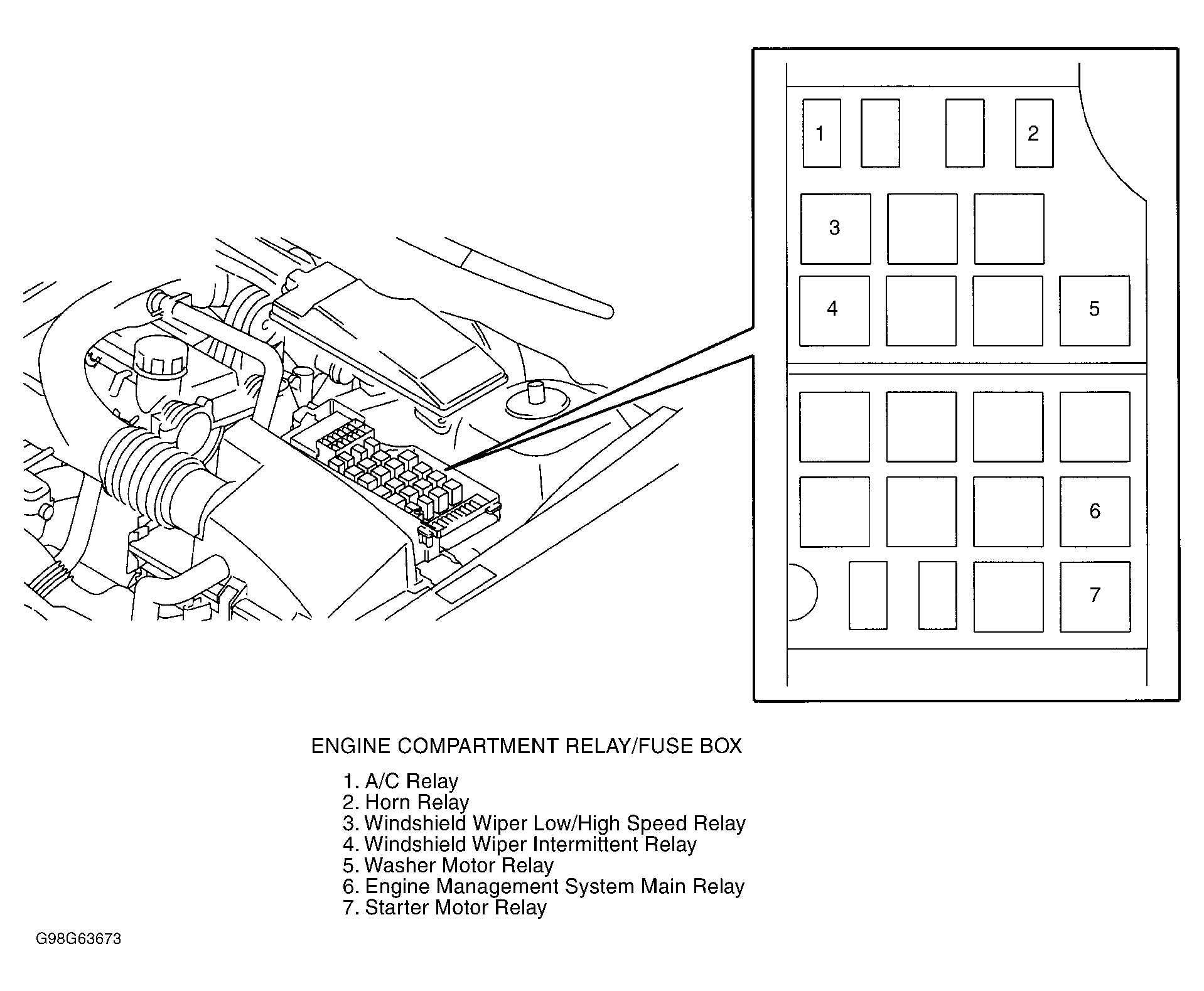

Engine Compartment Relay/Fuse Box At left side of engine compartment, forward of strut tower. See Figure .
Main Fuses Next to battery, in trunk.
Passenger Compartment Fuse Box At left end of dash.

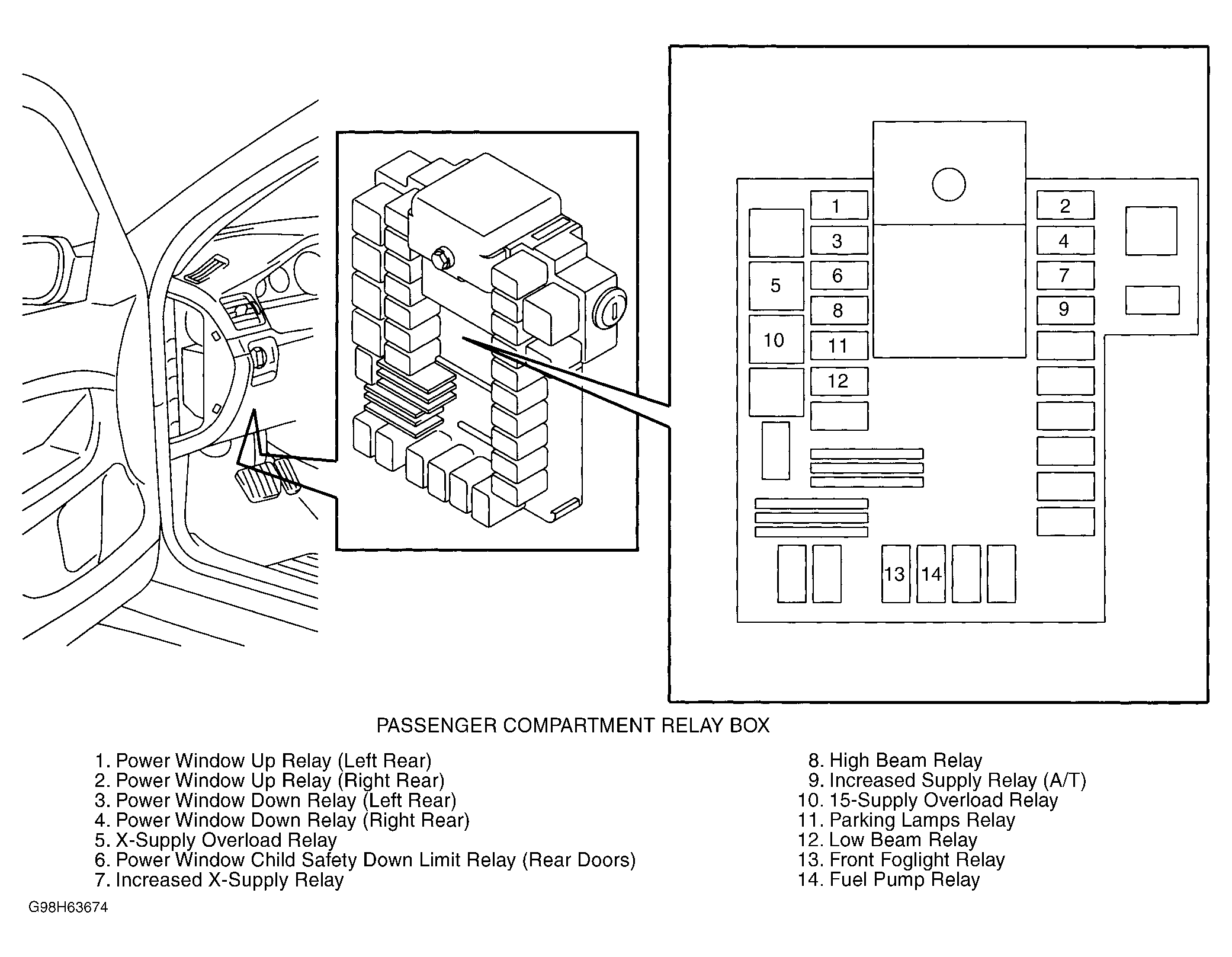

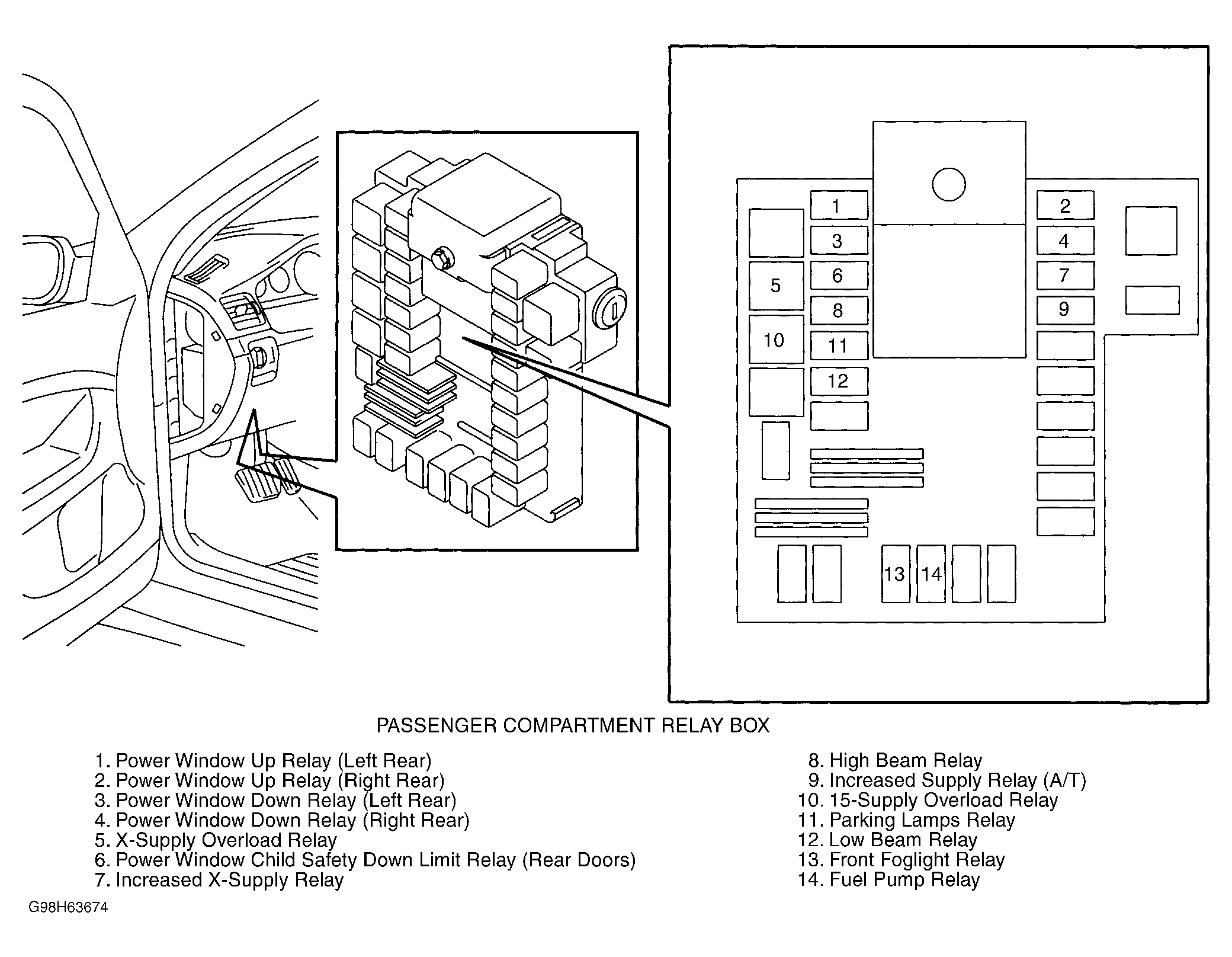

Passenger Compartment Relay Box Behind left side of dash. See Figure .
