Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | At left rear corner of engine compartment. |

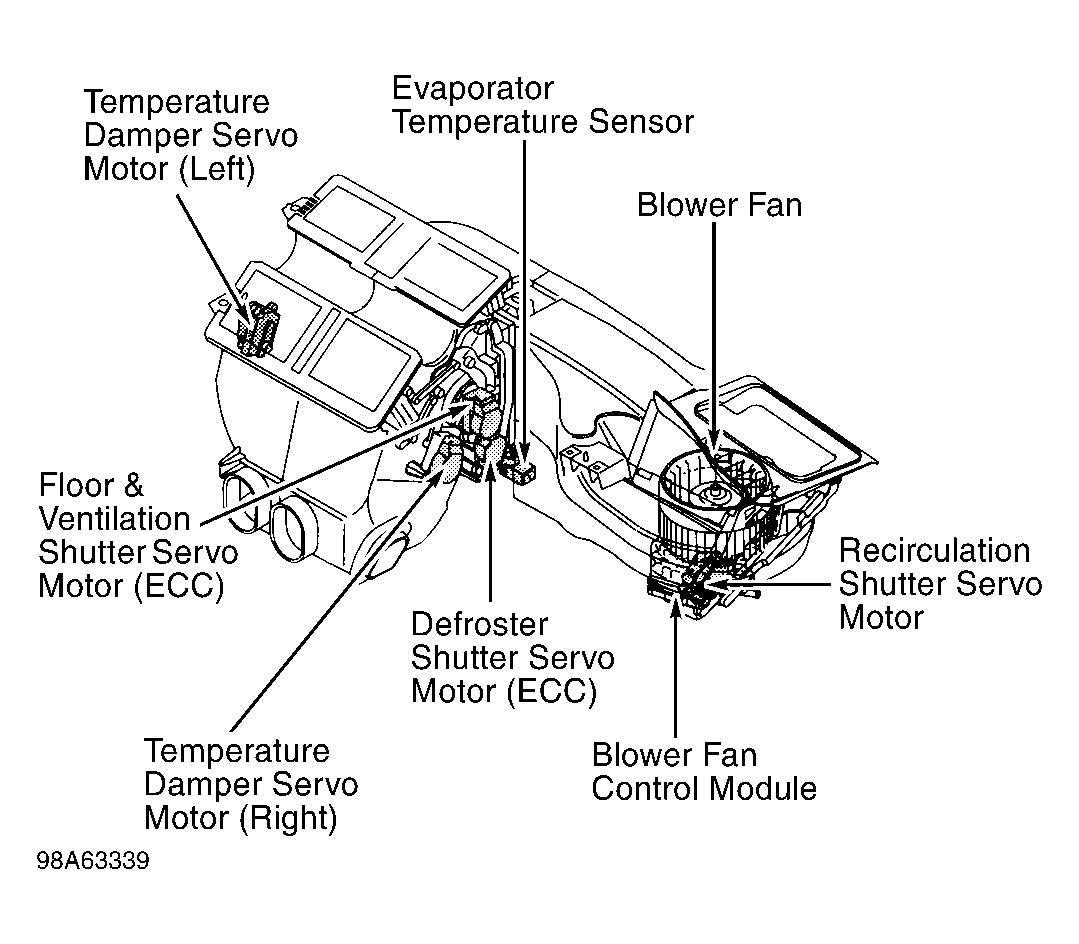

| Blower Fan Control Module | Behind right side of dash, near blower motor. See Figure . |
| Central Electronic Module (CEM) | Behind left side of dash, on passenger compartment relay box. |

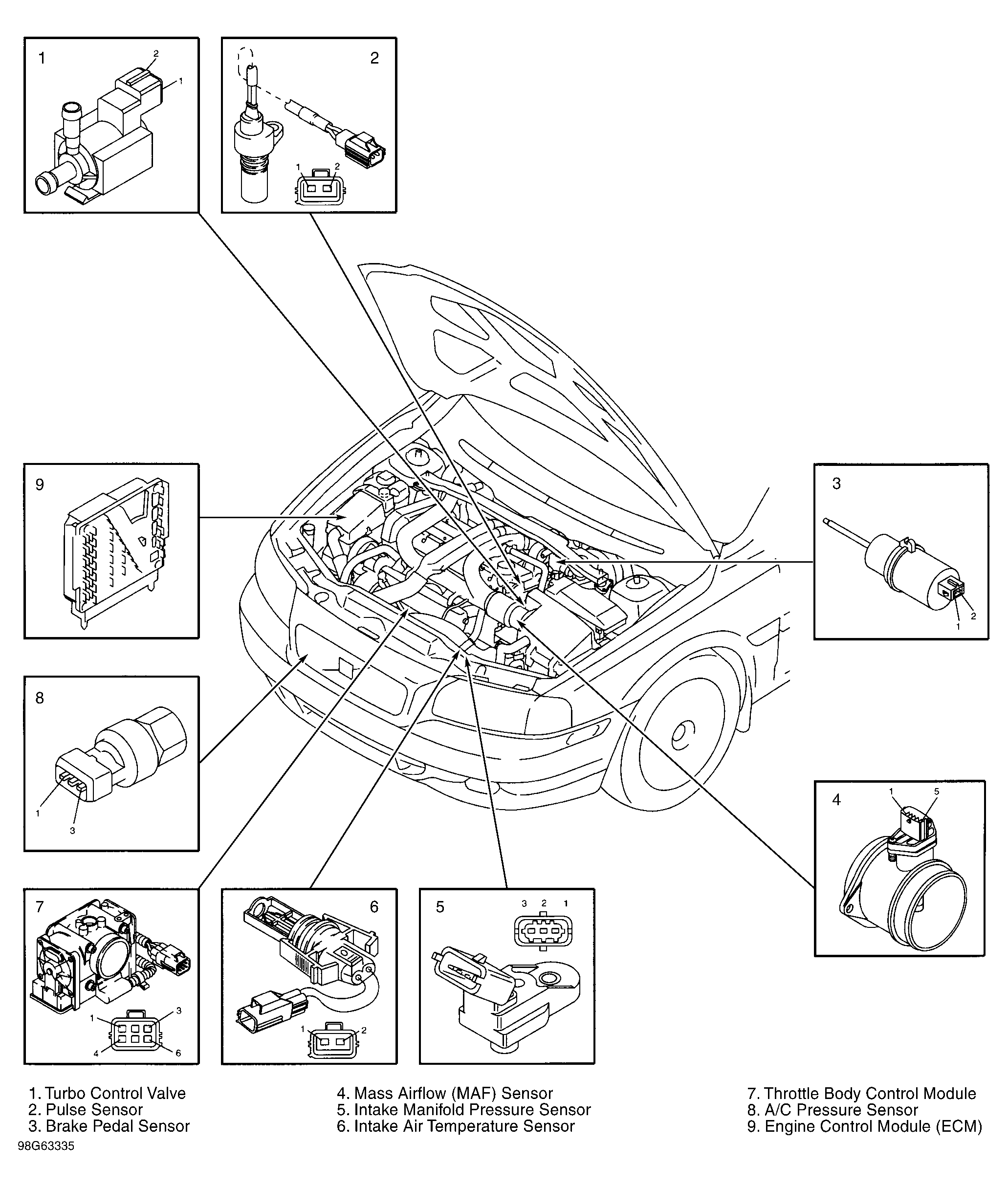

| Engine Control Module (ECM) | At right side of engine compartment, forward of strut tower. See Figure . |
| Engine Cooling Fan Control Module | At front center of engine compartment. |
| Power Driver's Seat Control Module | Under driver's seat. |
| Rear Electronic Module (REM) | At left side of trunk, on cargo compartment relay/fuse box. |
| RTI Control Module | At left side of trunk. |
| SRS Control Module | Below floor console, behind gear selector lever. |
| Sun Roof Control Module | Forward of sun roof opening. |
| Throttle Body Control Module | On left side of engine. See Figure . |
| Transmission Control Module (TCM) | At right side of engine compartment, forward of strut tower. |
| Upper Electronic Module (UEM) | Above center of windshield, on rearview mirror. |
