Electrical Component Locator: Switches
SWITCHES
| Component | Component Location |
|---|---|
| Back-Up Light Switch | On transaxle. |
| Bonnet Alarm Switch | At left front corner of engine compartment. |
| Gear Selector Module (GSM) Switch (A/T) | At base of gear selector lever. |

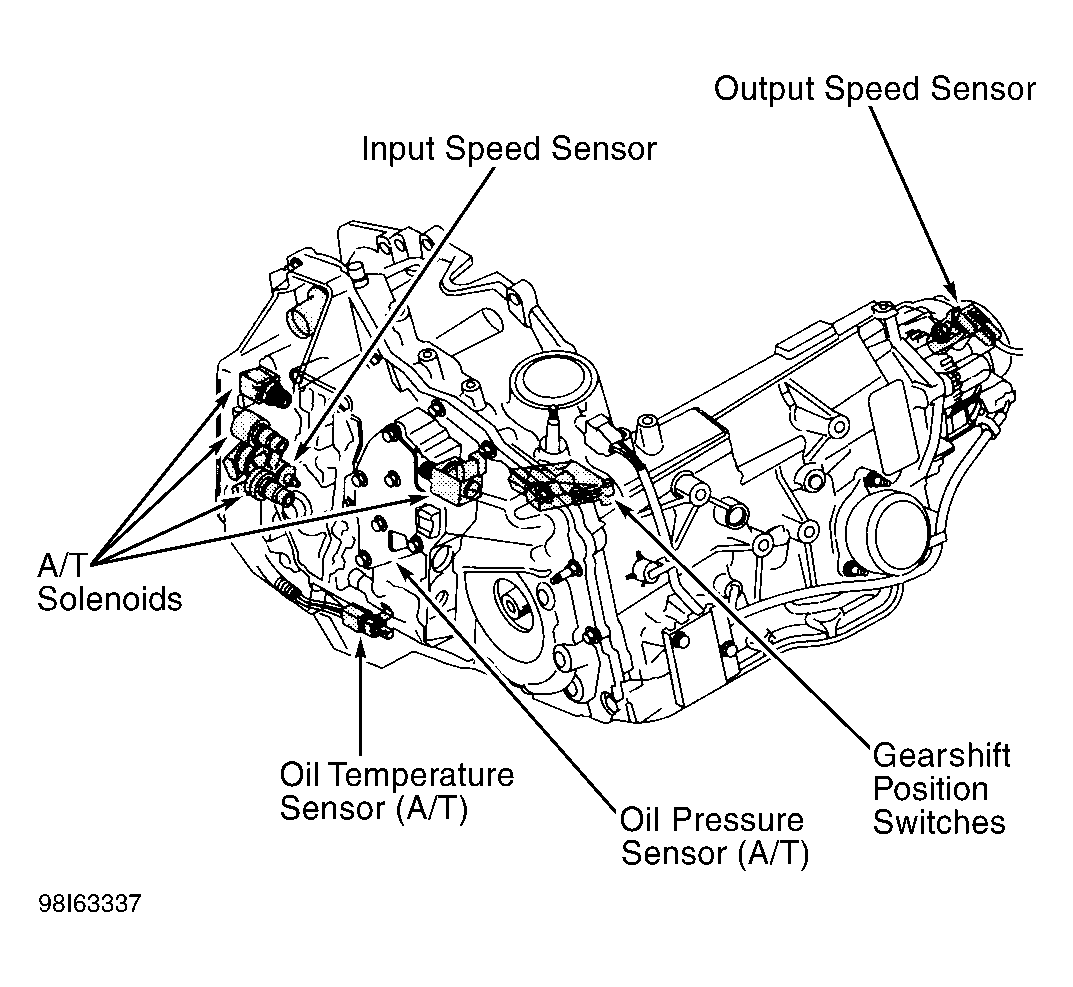

| Gearshift Position Switches | On transaxle. See Figure . |
| Parking Brake Switch | At base of parking brake lever. |
| Seat Belt Buckle Switch (Left/Right) | On respective seat belt buckle. |
| Stoplight Switch | On brake pedal bracket. |
