A/C pressure sensor

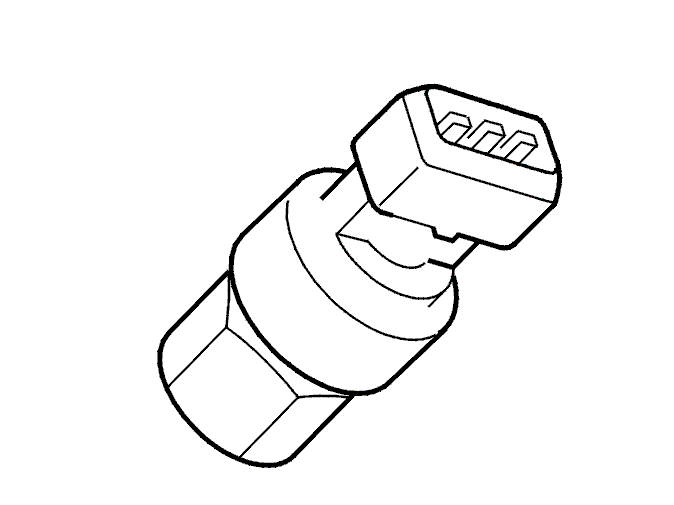

Fig 1: Identifying A/C Pressure Sensor
GLL105197Courtesy of VOLVO CARS OF NORTH AMERICA.

Linear pressure sensor. Measurement range 0 -3100 kPa.

V (Volt) 0.25 1.00 2.00 3.00 4.75
P (kPa) 0 517 1206 1894 3100
