Fuel pump

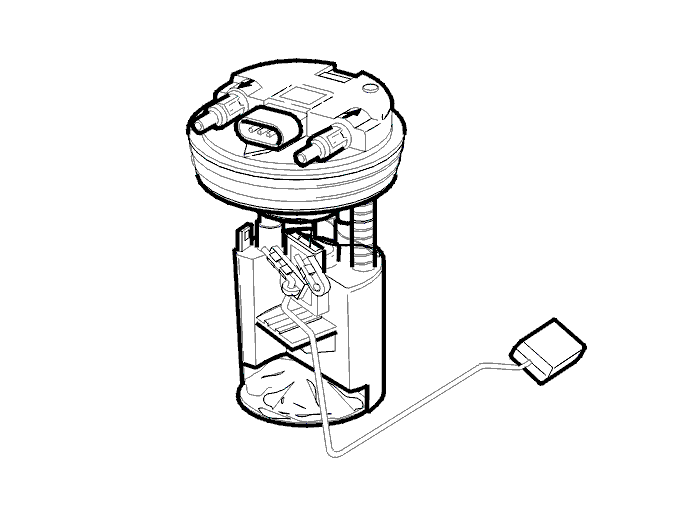

Fig 1: Identifying Fuel Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Pump capacity at a line pressure of 380 kPa and 13 V > 125 l/min.

Power consumption at a line pressure of 380 kPa and 13 V max 7.5 A
