Fuel tank pressure sensor

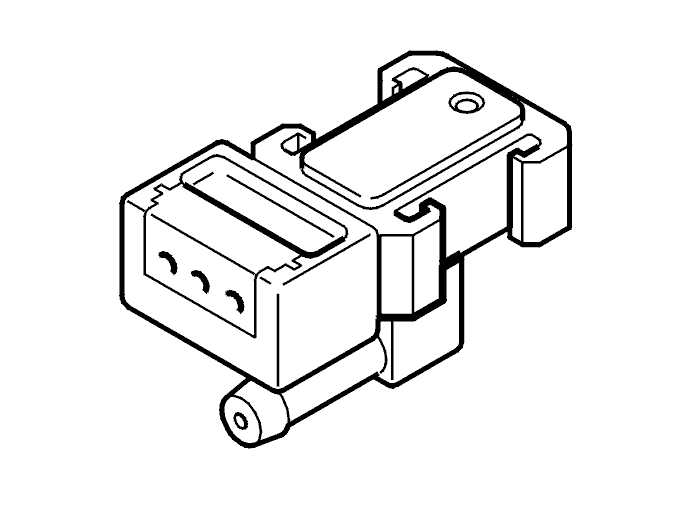

Fig 1: Identifying Fuel Tank Pressure Sensor
GLL102819Courtesy of VOLVO CARS OF NORTH AMERICA.

Piezo electric lineal pressure sensor.

P (kPa) -2.0 -1.5 0 0.5
V (Volt) 1.70 2.10 3.30 3.70
