Outside temperature sensor

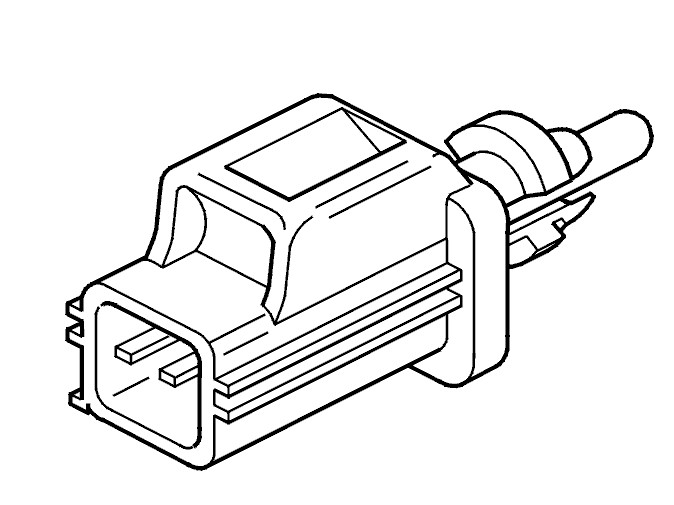

Fig 1: Identifying Outside Temperature Sensor
GLL103190Courtesy of VOLVO CARS OF NORTH AMERICA.

NTC resistance.

Temperature (°C) 0 10 20 25 30
R (Ω) 1407 912.8 607.5 500.0 413.8
V (Volt) 2.92 2.39 1.89 1.67 1.46
