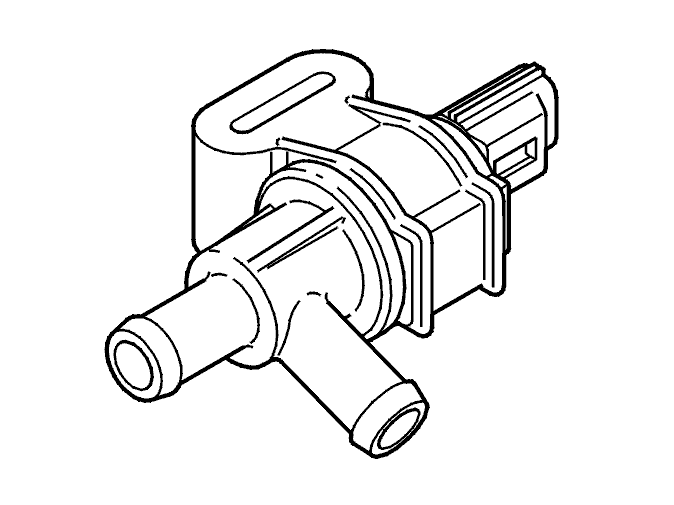

EVAP canister shut-off valve (certain markets only)
The EVAP canister shut-off valve is used to close the connection between the EVAP canister/fuel tank system and fresh air (atmospheric pressure) when leak diagnostics are carried out on the cars with the evaporative emission (EVAP) system.
The valve is an electro-magnetic valve which is powered from the system relay. When the valve needs to be closed, it is grounded internally in the engine control module (ECM). The valve is open when in the rest position (open-circuit).
The valve can be diagnosed by the engine control module (ECM) and can be activated using VIDA.
The valve is next to the EVAP canister on cars with leak diagnostics for the evaporative emission (EVAP) system.
