Location of components

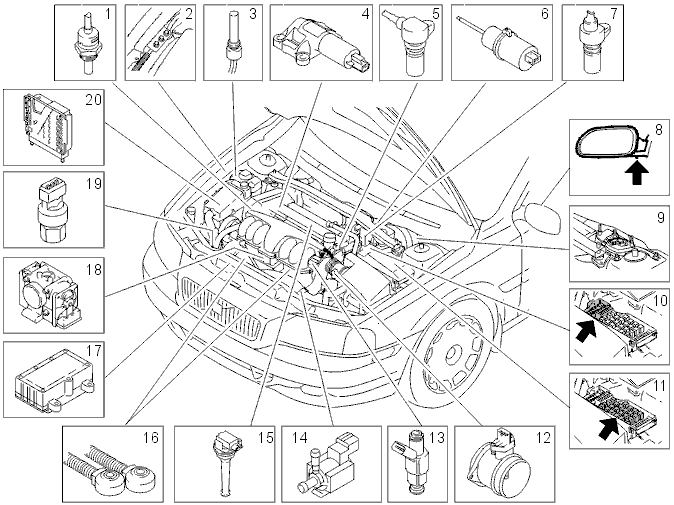

Fig 1: Identifying Engine Equipment, Ignition And Control System Components
GLL103005Courtesy of VOLVO CARS OF NORTH AMERICA.
  1. Engine coolant temperature (ECT) sensor
  2. Ground terminal
  3. Coolant level sensor
  4. Camshaft reset valve
  5. Camshaft position sensor (CMP)
  6. Brake pedal sensor
  7. Engine speed (RPM) sensor
  8. Outer temperature sensor
  9. Power supply terminal
  10. Fusebox
  11. Relay box
  12. Mass air flow (MAF) sensor
  13. Injector
  14. Canister purge (CP) valve
  15. Ignition coil
  16. Knock sensor (KS)
  17. Engine cooling fan (FC) control module
  18. Throttle unit
  19. A/C pressure sensor
  20. Engine control module (ECM).
