Intake air temperature sensor

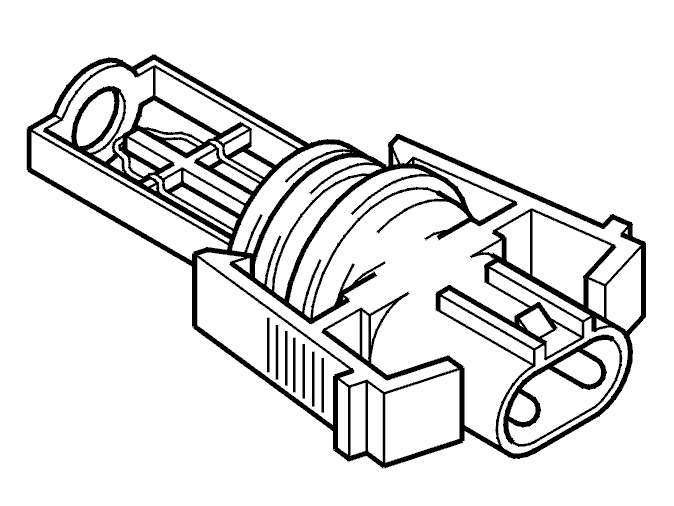

Fig 1: Identifying Temperature Sensor - Intake (Turbocharged Engines Only, 2002-2004)
GLL102919Courtesy of VOLVO CARS OF NORTH AMERICA.

B52x4 Tx, B6284 Tx

NTC resistance.

Temperature (°C) 0 10 20 30 40
R (Ω) 15931 9672 6068 3923 2603
V (Volts) 4.30 3.94 3.50 3.00 2.50

B6xx4 Sx

NTC resistance.

Temperature (°C) 0 10 20 30 40
R (Ω) 5500 3600 2420 1660 1200
V (Volts) 3.40 2.90 2.40 1.94 1.57
