Removing engine control module (ECM)

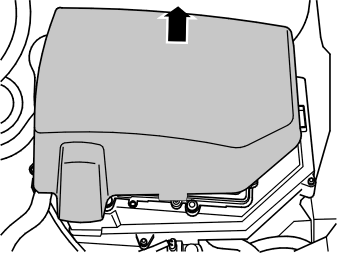

Fig 1: Lifting Up Cover For Engine Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the cover by lifting it straight up.

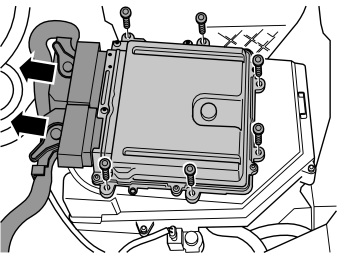

Fig 2: Identifying Screws And Connectors For Engine Control Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• the connectors, x2
• the 6 screws
• engine control module (ECM)
