Component Locations

Fig 1: Locating Data Link Connector (C70, S70 & V70)

Fig 2: Locating Cooling Fan Relay (C70, S70 & V70)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: C70 Component Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: S70 Turbo & V70 Turbo Component Location

Courtesy of VOLVO CARS OF NORTH AMERICA.

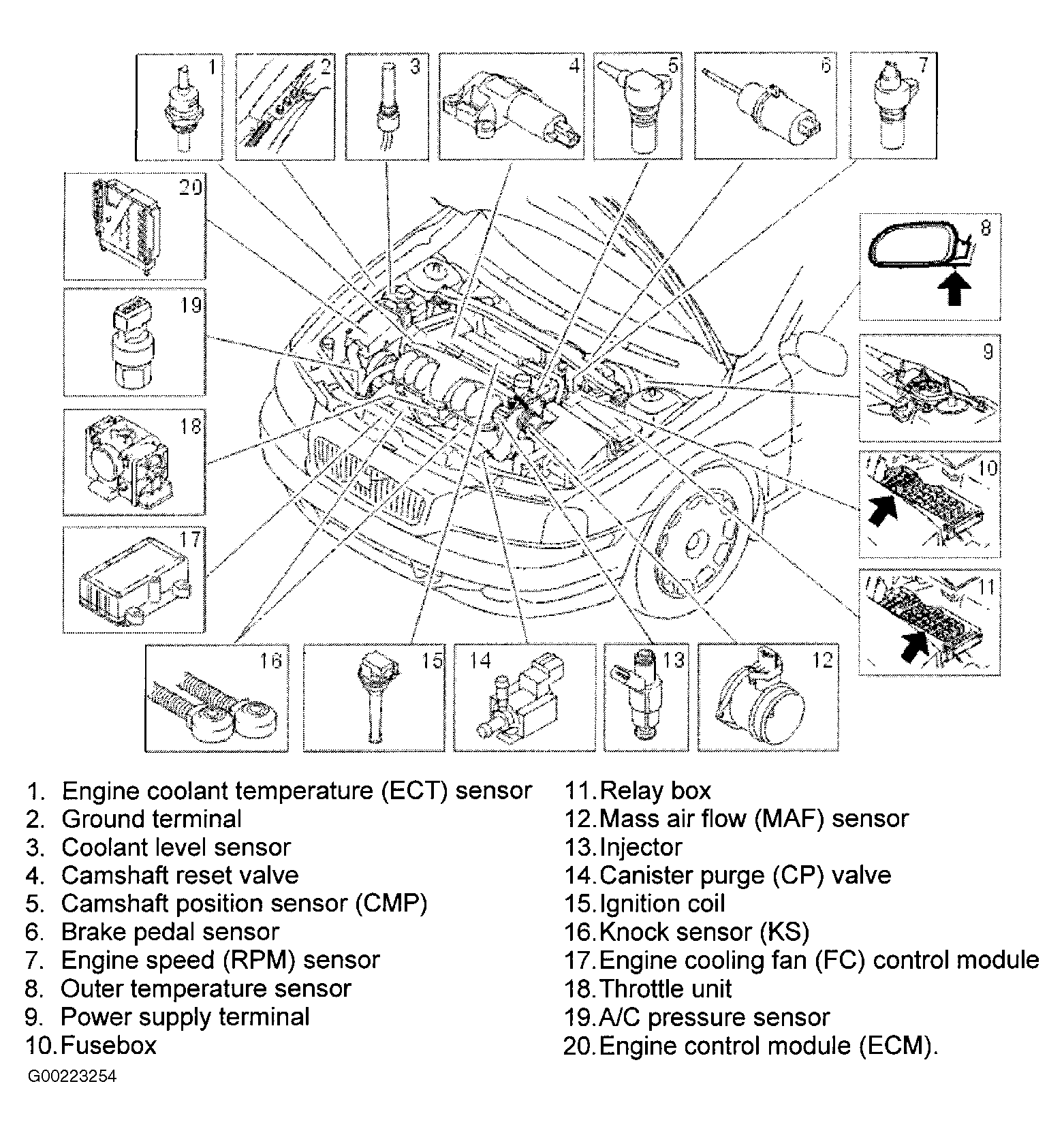

Fig 5: S80 Non-Turbocharged Component Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

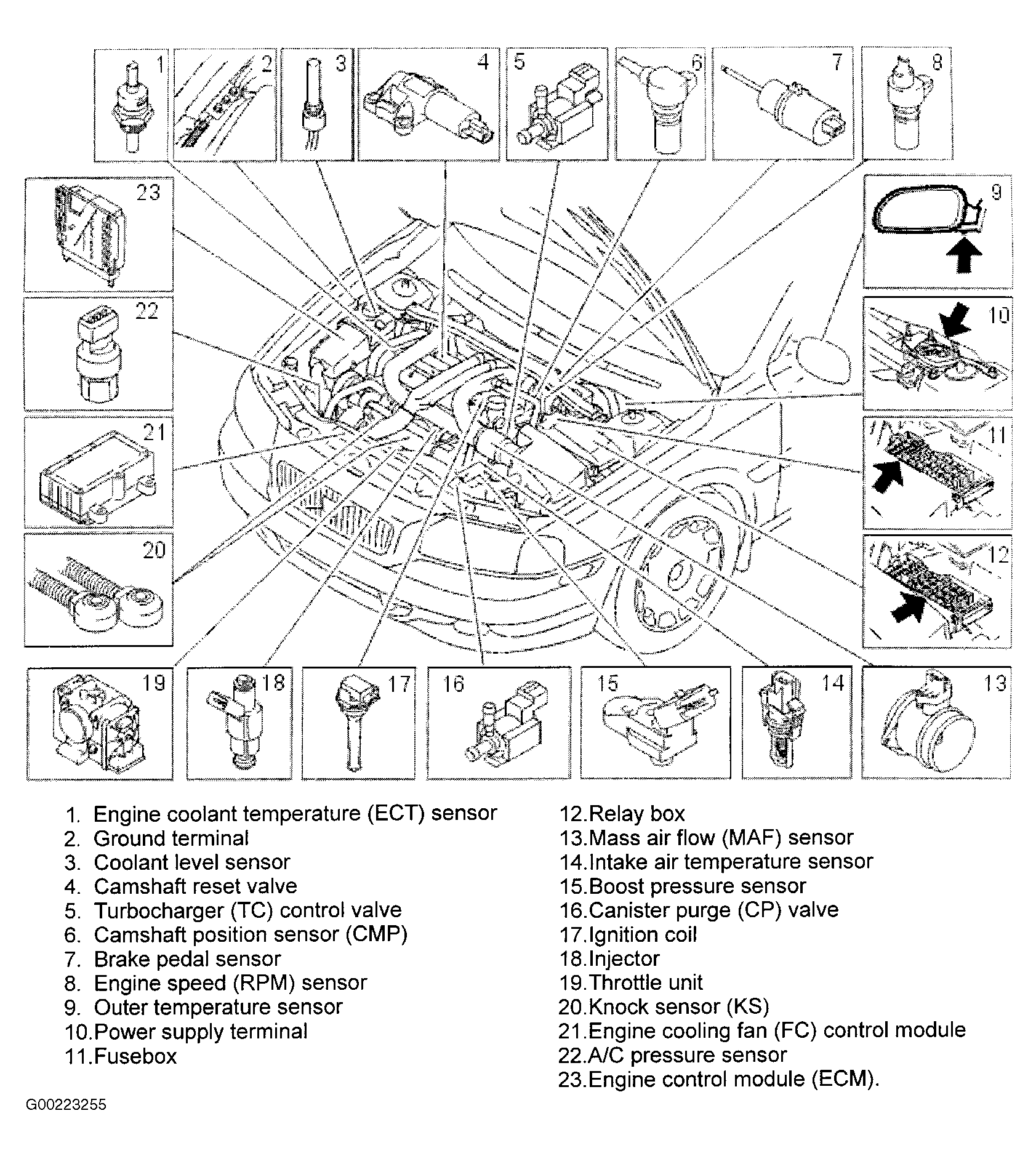

Fig 6: S80 Turbocharged Component Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 7: Locating Fuel Tank Pressure Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 8: Locating Fuel Pump Relay (C70, S70 & V70)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 9: Locating Fuel Pump Relay In Central Electronics Module (S80 - Early 1999 Production)

Courtesy of VOLVO CARS OF NORTH AMERICA.

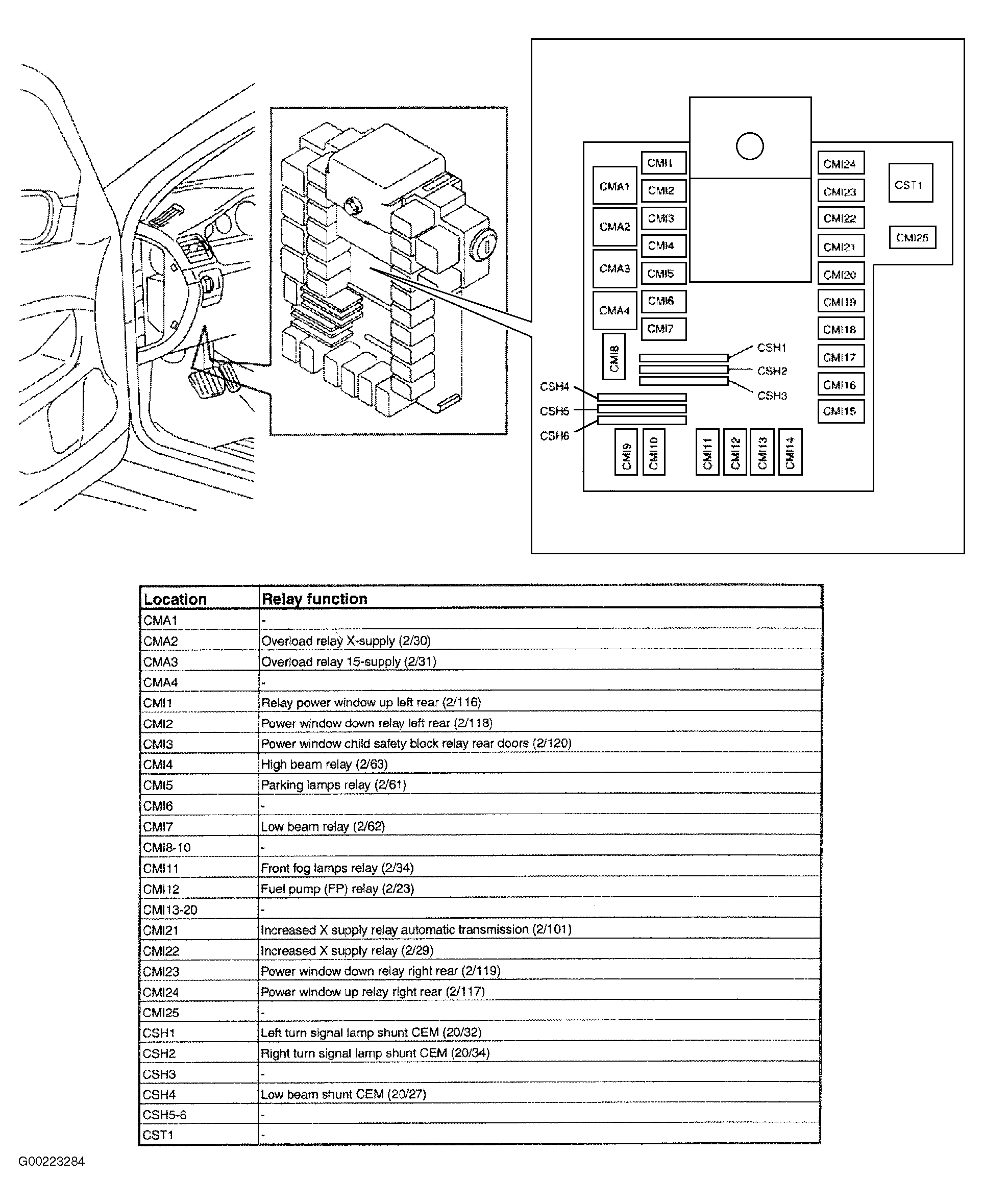

Fig 10: Locating Fuel Pump Relay In Central Electronics Module (S80 - Late 1999 Production & 2000)

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: System relay may also be called main relay engine management.

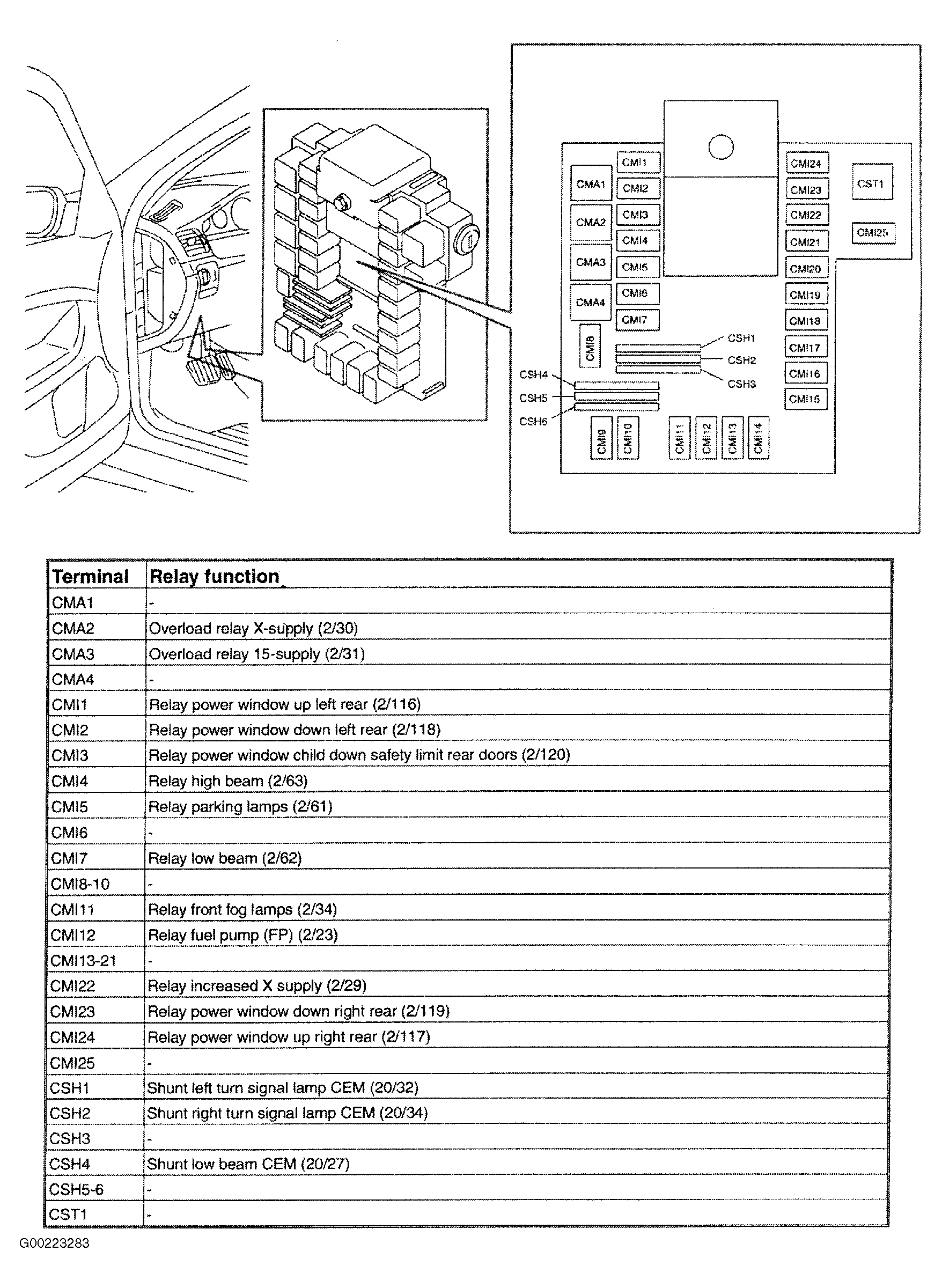

Fig 11: Identifying Main Fuse Box Components (C70, S70 & V70)

Courtesy of VOLVO CARS OF NORTH AMERICA.

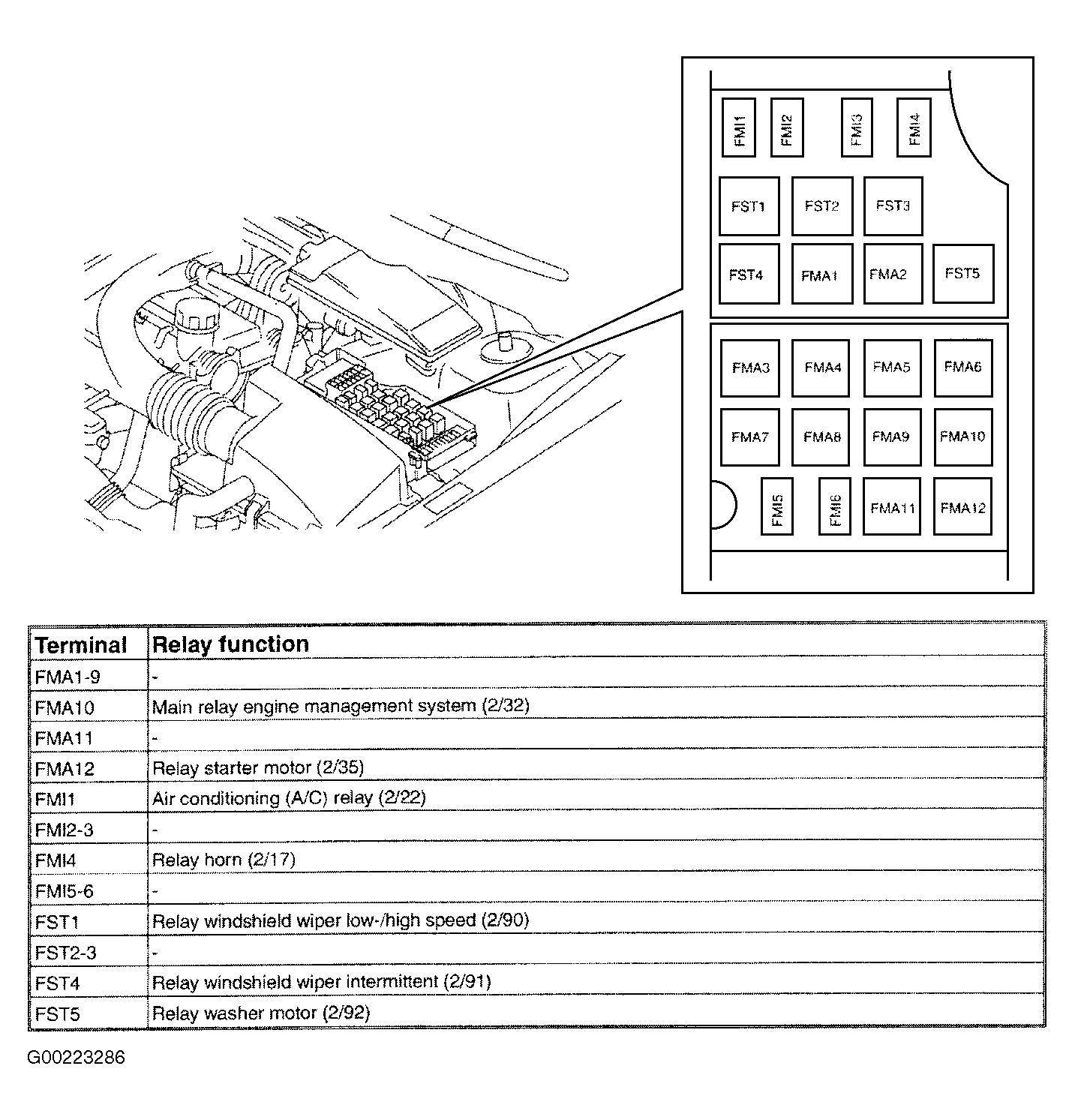

Fig 12: Locating A/C Relay (2/22), System Relay (Main Relay Engine Management, 2/32) - S80

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 13: Identifying A/C Relay (2/22) & System Relay (2/32) Pin Configuration View (S80)

Courtesy of VOLVO CARS OF NORTH AMERICA.
