Vacuum Hose Diagrams: Notes
NOTE:
When using vacuum diagrams, the charcoal canister may also be referred to as canister or EVAP canister.

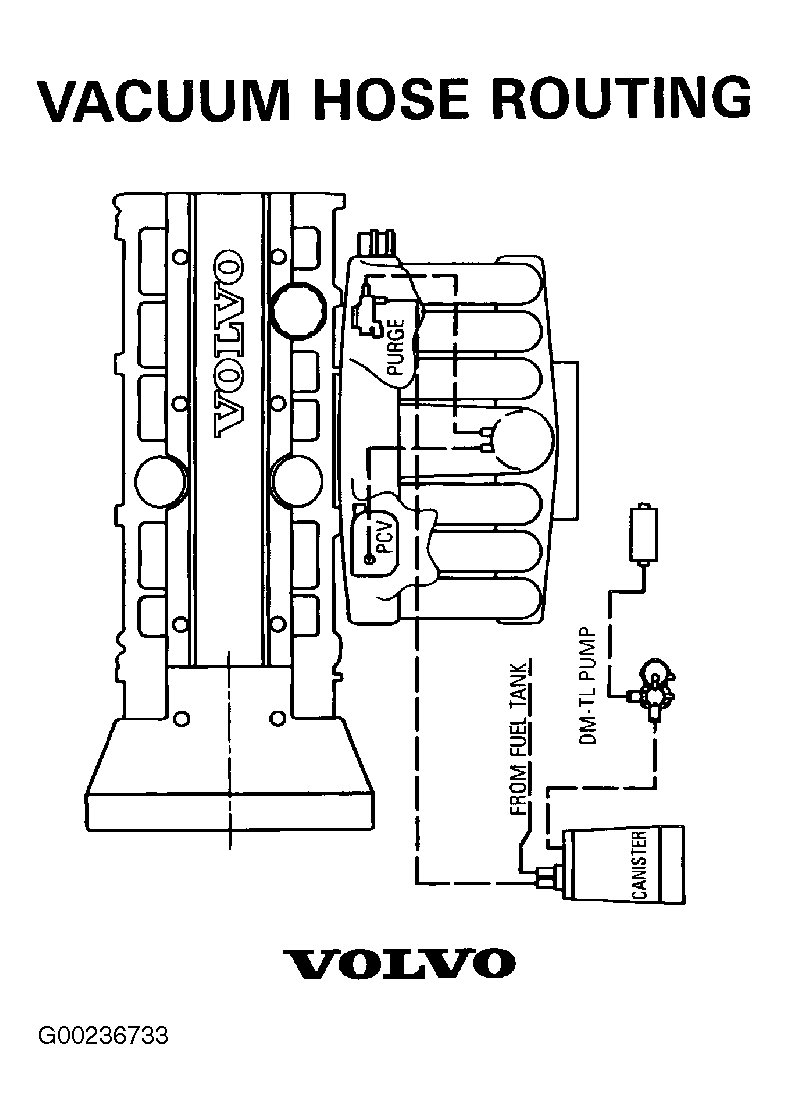

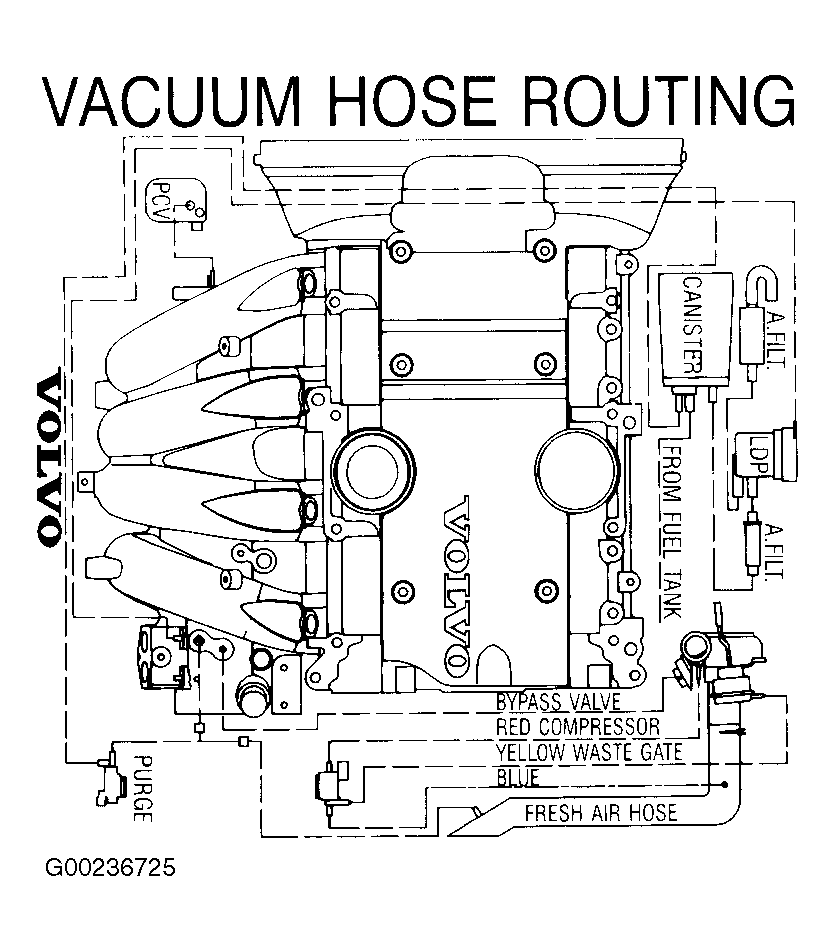

See Figure
-Figure
for vacuum diagrams. To assist in identifying engine application, see appropriate INTRODUCTION article in ENGINE PERFORMANCE.
