Removing the headlining

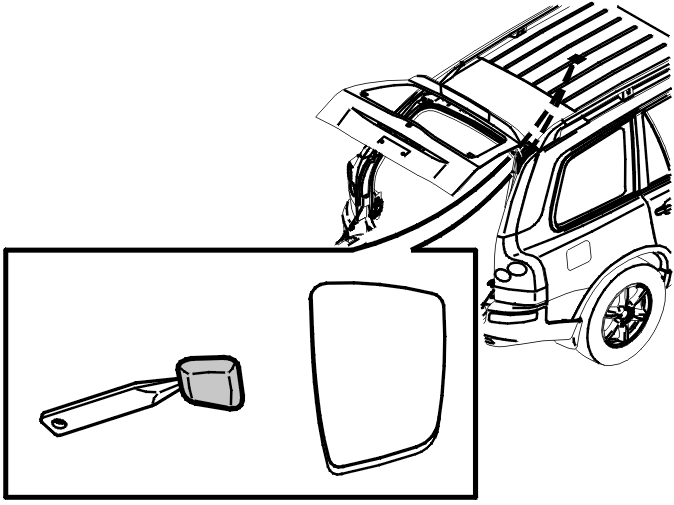

Fig 1: Identifying Roof Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

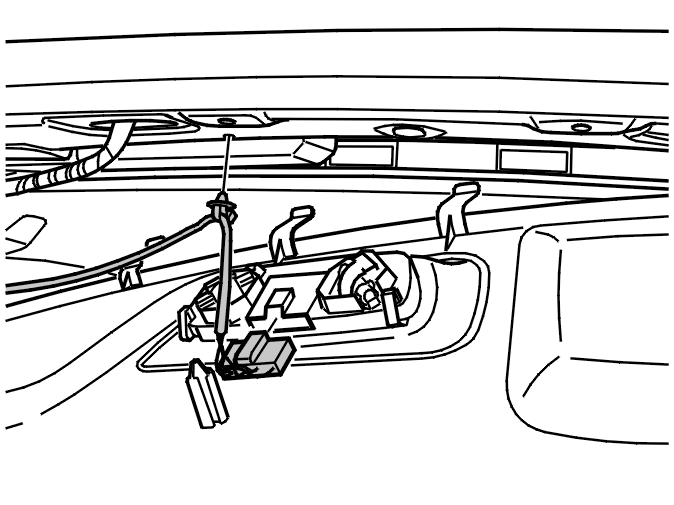

Fig 2: Identifying Reading Lamp Cable And Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Detach and fold down:

HINT: Leave the headlining hanging from the B-posts.

Remove the A-post panel. See Panel, A-post, replacing .

Remove the washer hose at the lower corner by the right-hand A-post.

Detach the washer hose at the trunk lid.

NOTE:

There is a risk spillage.

Remove the clips from the cable for the reading lamp.

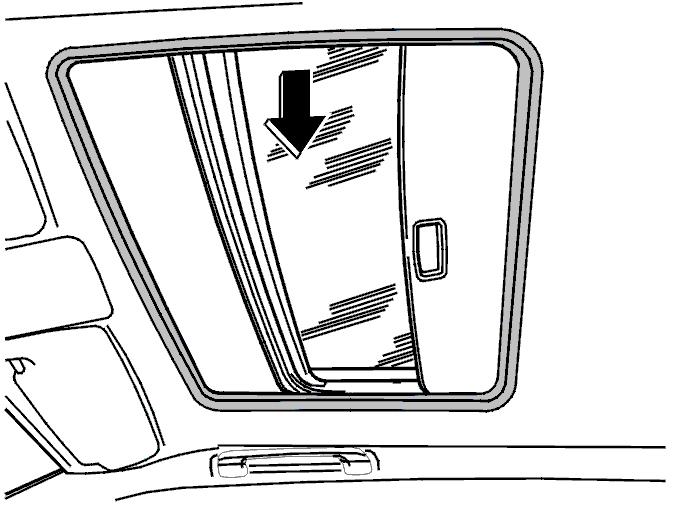

Fig 3: Identifying Sunroof Surround

Courtesy of VOLVO CARS OF NORTH AMERICA.

Cars equipped with sun roofs:

Remove the molding around the sun roof.

Pull the molding inwards into the car. Start at the short side so that the corners release.

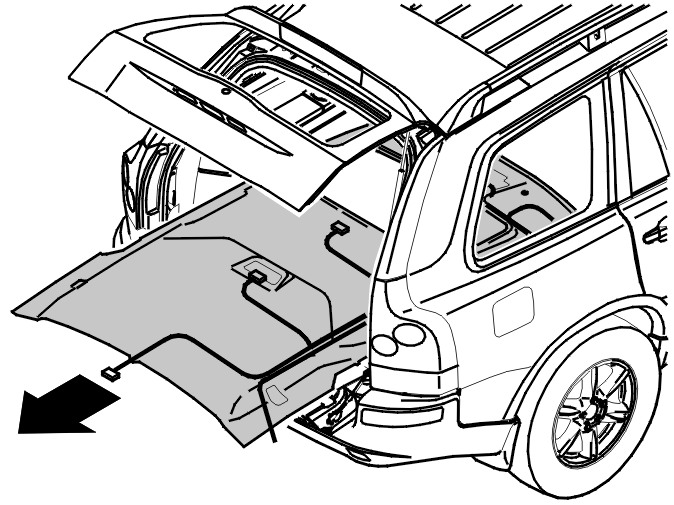

Fig 4: Pulling Headlining Out Through Tailgate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Carefully detach the headlining from the B-posts.

Pull the headlining out through the tailgate at an angle.

HINT: Try to keep the headlining as close to the floor as possible.

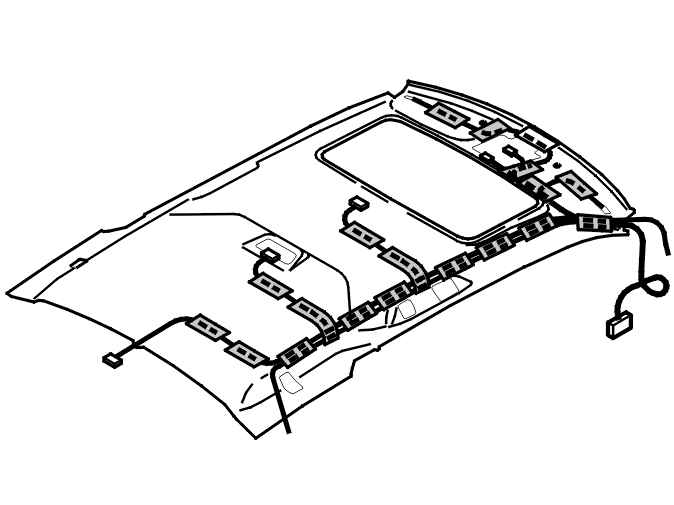

Fig 5: Identifying Cable Harness Routing On Headlining

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer:

the front volume sensor (mass movement sensor). See Mass movement sensor module (MMS) front, replacing
the rear volume sensor. See Mass movement sensor module (MMS) rear, replacing
the cable harness.

NOTE:

Use tape (P/N 944 1891) to secure the cable harness to the new headlining. Tape the entire cable harness to the headlining so that it is secure.
