Checking the control module connection: Notes

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Switch off the ignition.

  Check that the cable connector is correctly connected to the control module. Check that the connectors lock together securely.

  Check that the cable terminals in the female and male halves of the connector are not damaged or pressed back.

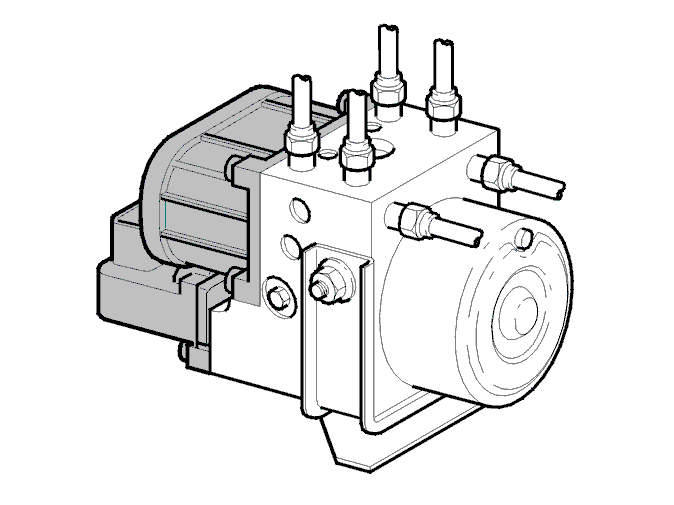

  Fig 2: Identifying ABS Control Module

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Is the control module connected correctly?

• YES

  FAULT NOT FOUND:  Troubleshooting has been completed.

• NO

  Refer to Remedy the component
