Diagnostic Functions: Notes

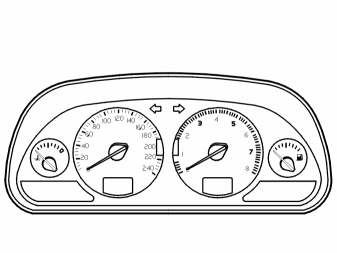

Fig 1: Instrument Cluster
GLL112573Courtesy of VOLVO CARS OF NORTH AMERICA.

The control module has a built-in diagnostic system, the Volvo on-board diagnostic (OBD) system. This system continuously monitors itself and the input and output signals.
