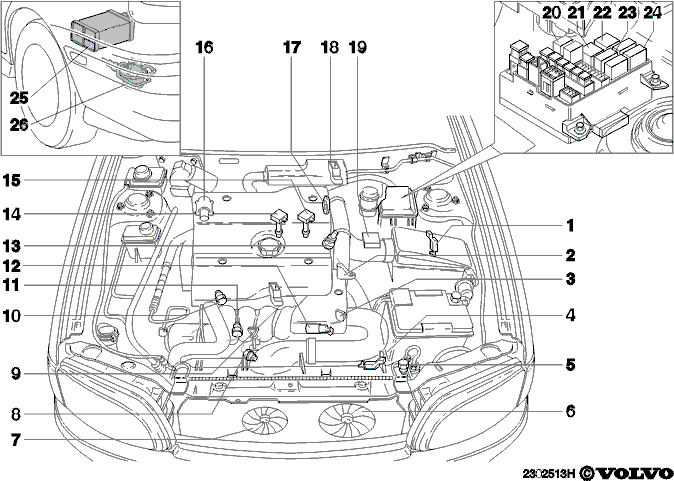

| 1 |
Turbo control valve (TCV) |
On the rear side of the air filter cover |
| 2 |
Engine speed sensor (RPM) |
On the engine, on the flywheel side |
| 3 |
Throttle position sensor (TP) |
On the throttle housing |
| 4 |
EVAP purge valve |
The electrical valve is situated on the coolant radiator |
| 5 |
A/C linear pressure sensor |
In the A/C dryer |
| 6 |
Engine coolant fan (FC) |
The left fan behind the radiator |
| 7 |
Condenser fan |
The right fan (small) behind the radiator |
| 8 |
Intake air temperature sensor (IAT) |
On the cold intercooler side. Underneath the connecting pipe to the inlet manifold |
| 9 |
Manifold absolute pressure sensor (MAP) |
Located on the inlet manifold between cylinder 3 and 4 |
| 10 |
Engine coolant temperature sensor (ECT) |
Central coolant temperature sensor. The EMS 2000 communicates the temperature to the instrument as well |
| 11 |
Knock sensor (KC) |
On the front side of the engine between cylinders 2 and 3 |
| 12 |
Idle air control valve (IAC) |
On the inlet manifold |
| 13 |
PCV heating |
The crankcase ventilation heating is on the hose, near the turbo compressor |
| 14 |
Ignition coil |
Cylinders 2 and 3 |
| 15 |
Ignition coil |
Cylinders 1 and 4 |
| 16 |
VVT valve |
Mounted on the cylinder head. Regulates the exhaust camshaft |
| 17 |
Camshaft position sensor (CMP) |
On the exhaust camshaft |
| 18 |
Altitude sensor |
On the bracket, with the connectors underneath the cover |
| 19 |
Mass airflow sensor (MAF) |
Outlet air filter |
| 20 |
Relay A/C compressor |
In relay box |
| 21 |
Relay coolant fan (FC) speed 2 |
In relay box |
| 22 |
System relay |
In relay box |
| 23 |
Relay condenser fan |
In relay box |
| 24 |
Relay FC speed 1 |
In relay box |
| 25 |
EVAP canister |
Located on the fuel tank |
| 26 |
LDP pump |
Located on the member to the rear |
