Removal of lambda probes

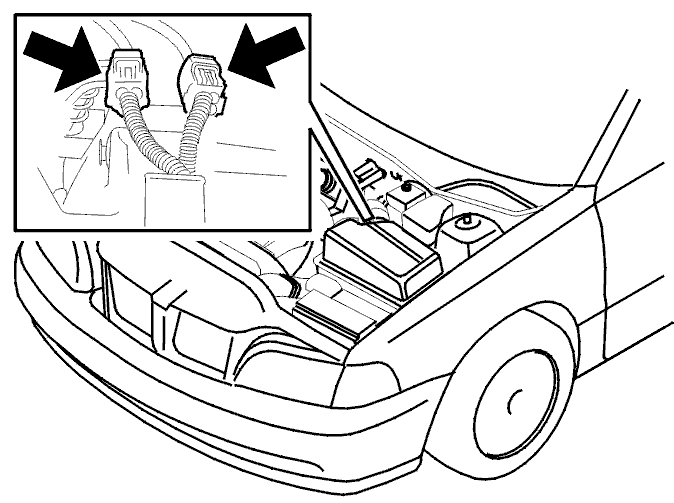

Fig 1: Identifying Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Jack up the car.

Remove the LH front wheel.

Uncover the wiring.

Disconnect the connectors.

Jack up the car.

Fig 2: Identifying Heated Oxygen Sensors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Uncover the wiring.

Remove lambda probes using tool 9995543 .
