Control Units

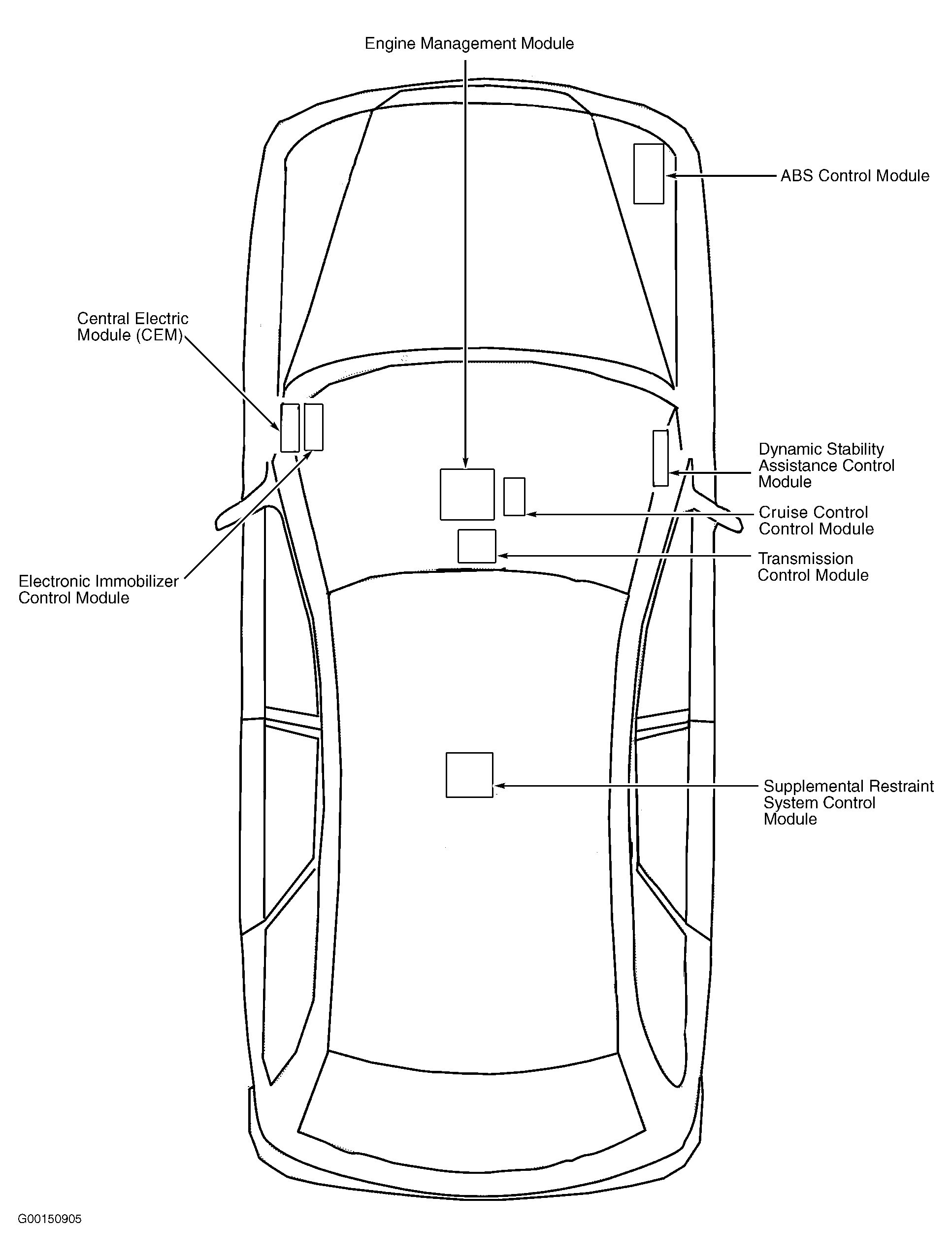

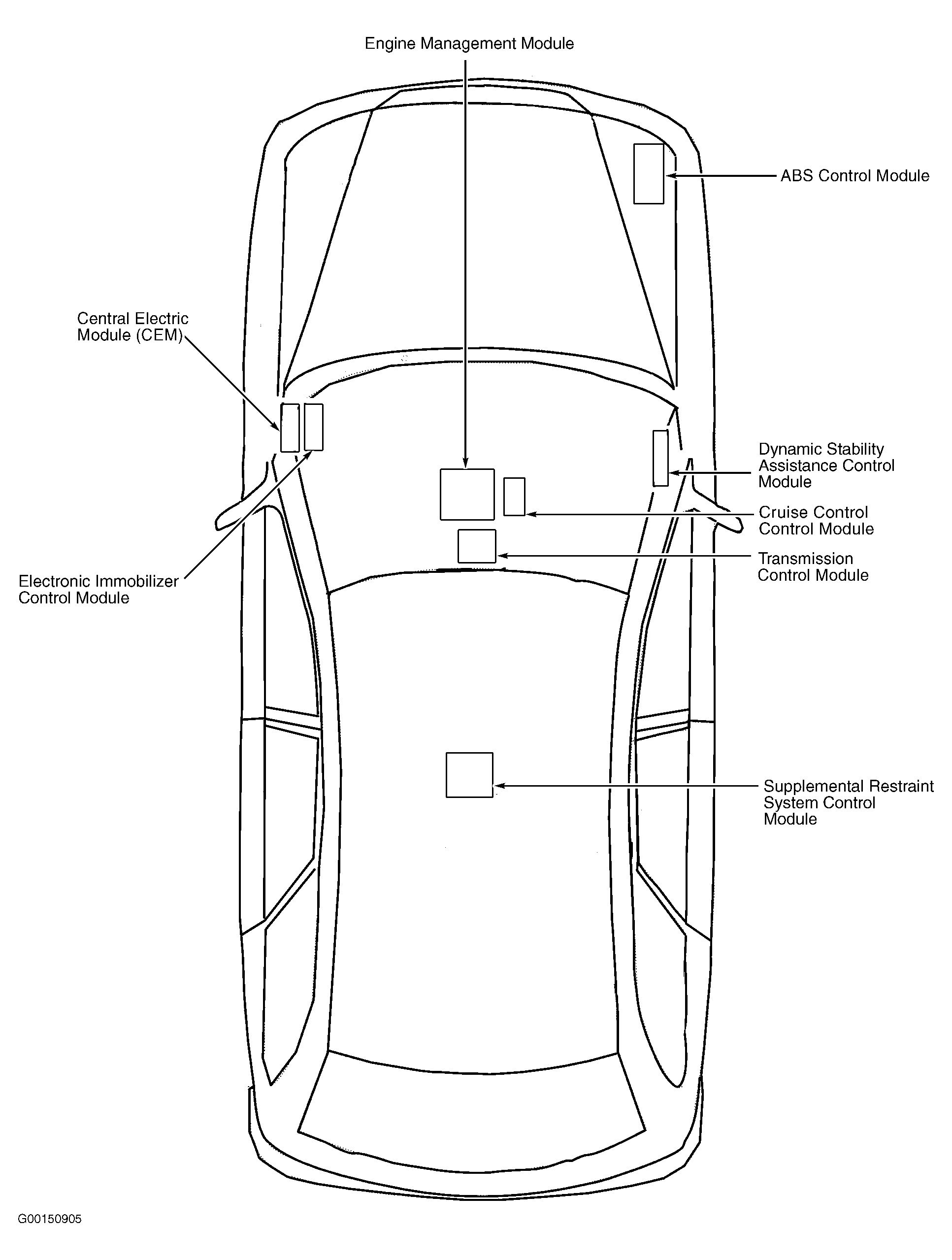

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | In right front corner of engine compartment. See Figure . |
| Central Electric Module (CEM) | Behind left side of dash. See Figure . |
| Climate Control Module | In center of dash, integral to A/C controls. |
| Cruise Control, Control Module | Behind lower center of dash. See Figure . |
| Dynamic Stability Assistance Control Module | Behind right side of dash. See Figure . |
| Electronic Immobilizer Control Module | Behind left side of dash. See Figure . |
| Engine Management Module | Behind lower center of dash. See Figure . |
| Fuel System Control Module | At left side of engine compartment. |
| Key-Inserted/Seat Belt Reminder Control Module | In passenger compartment fuse & relay box. |
| Passenger Compartment Fan Speed Control Module | Behind right side of dash, on bottom of HVAC assembly. |
| Supplemental Restraint System Control Module | Below rear of center console, between front seats. See Figure . |
| Transmission Control Module | Behind lower center of dash. See Figure . |
| Ultrasonic Glass Breakage Sensor Control Module | Below right side of dash. |
| VGLA Control Module | Behind lower center of dash. |
| VGLA Receiver | In rear of engine compartment. |
