Guide sleeve, key lock cable

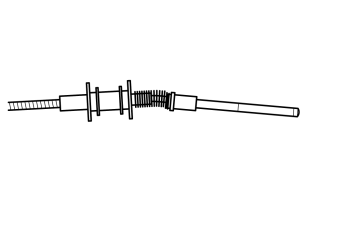

Fig 1: Center Console Assembly

Courtesy of VOLVO CARS OF NORTH AMERICA.

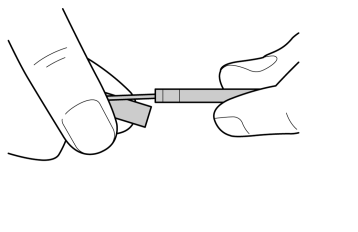

Fig 2: Identifying Cable Pulled Out Of Cable Sleeve

Courtesy of VOLVO CARS OF NORTH AMERICA.

Press the spring towards the cable sleeve.

Pull the cable out of the cable sleeve (approximately 10 mm).

Remove the guide sleeve.

Remove the spring. Ensure that the broken section of the guide sleeve is removed from the cable sleeve.

Install a new guide sleeve in reverse order.
