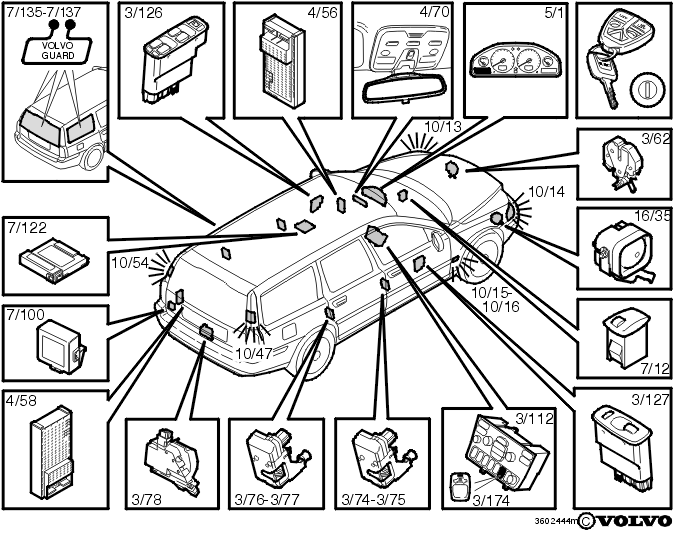

Location of components
The alarm function uses the following components (may differ depending on the options and market):
| Position | Component | Position | Component |
| 3/62 | Switch in hood catch | 7/12 | Alarm diode |
| 3/74-3/77 | Switches in door locks | 7/100 | Inclination sensor module. Option /accessory |
| 3/78 | Switch in trunk lock | 7/122 | Mass movement sensor. Option /accessory |
| 3/112 | Climate control module | 7/135-7/137 | Resistive wires (Only V70/V70XC). Market dependent, option |
| 3/126, 3/127 | Drivers door module / Passenger door module | 10/13, 10/14 | Left and right turn signal lamps, front |
| 3/174 | Switch for reduced alarm. Only on cars with mass movement sensors and inclination sensor modules. |
10/15, 10/16 | Left and right turn signal lamps, Side |
| 4/56 | Central electronic module | 10/54, 10/47 | Left and right turn signal lamps, Rear |
| 4/58 | Rear electronic module | 16/35 | Siren control module |
| 4/70 | Upper electronic module | Key and lock cylinder | |
| 5/1 | Driver information module | Remote control |
