External amplifier

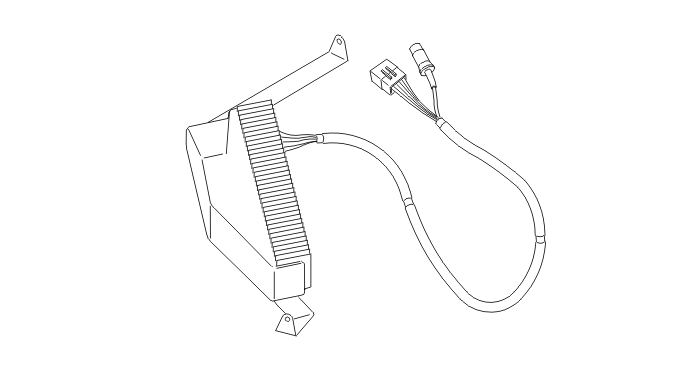

Fig 1: External Amplifier
GLL104255Courtesy of VOLVO CARS OF NORTH AMERICA.

The 4X50W amplifier is positioned under the right-hand front seat. It is used to amplify the audio output signal. The external amplifier is an option for the HU-4XX and HU-6XX. The amplifier is installed as standard with the HU-8XX.
