Diagnostic functions: General

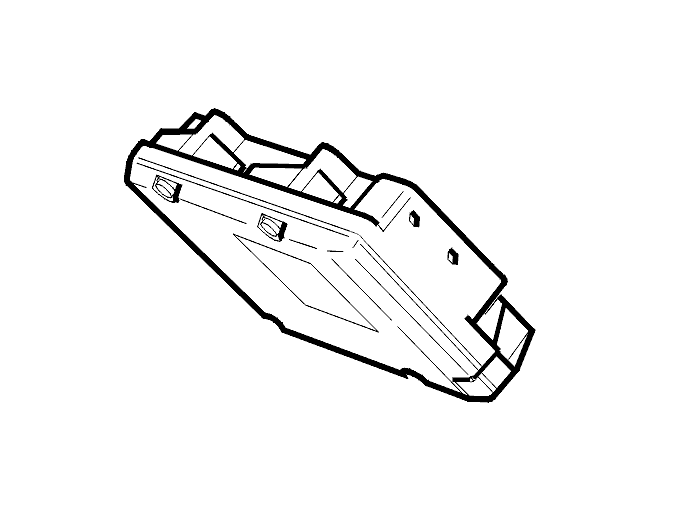

Fig 1: Brake Control Module
GLL102214Courtesy of VOLVO CARS OF NORTH AMERICA.

The control module has a built-in diagnostic system, Volvo Diagnostic, which continuously monitors internal functions as well as input and output signals.
