High-mounted stop lamp (S60/S80)

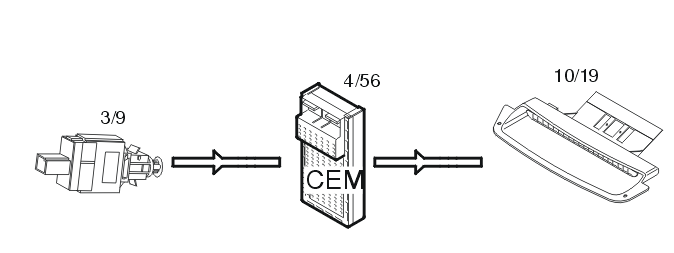

Fig 1: High-Mounted Stop Lamp Input And Output Signals

Courtesy of VOLVO CARS OF NORTH AMERICA.

When the stop lamp switch (3/9) is closed, a signal is transmitted to the central electronic module (CEM) (4/56). The high mounted stop lamp (10/19) is supplied with power directly from the central electronic module (CEM). The central electronic module (CEM) supplies power for as long as the stop lamp switch is closed.
