Washer / wipers

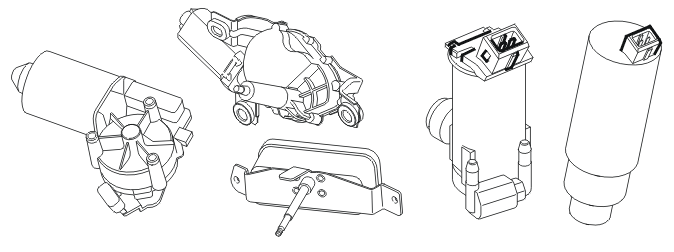

The windshield wipers are powered by a motor positioned under the cowl. There is also a headlamp wiper (S80 and R-models). Other models have high-pressure cleaning. There are also washer nozzles on the hood and bumper cover for cleaning the windshield and headlamps. The washer nozzles are connected to a pump motor on the windshield washer reservoir at the front right of the engine compartment.
For cars with five doors, there is a wiper and washer nozzle for the rear windshield.
The windshield wipers are operated using the right-hand control stalk. There are four positions:
- intermittent
- single sweep
- low speed
- high speed.
The time between strokes for intermittent wiping is adjusted using a ring on the control stalk.
Pull the control stalk towards the steering wheel to clean the windshield. The washer and wipers for the headlamps or high-pressure cleaning system are activated at the same time. The headlamp wipers operate for as long as washing is activated. They are not activated when only the windshield wipers are activated.
Push the control stalk away from the steering wheel to clean the rear windshield. There is a button at the end of the control stalk to control the rear wiper.
Information about the position of the control stalk is transmitted by the steering wheel module (SWM) to the central electronic module (CEM) using serial communication. The central electronic module (CEM) also receives a signal from the wiper motor if the wipers are in the park position.
The central electronic module (CEM) also monitors the windshield washer reservoir level via a level sensor in the reservoir. The switch in the level sensor closes if the level falls below one liter. A text message indicating that the windshield washer fluid needs to be topped up then lights in the driver information module (DIM) for approximately 10 seconds.
The power supply for the rear windshield wiper is via a directly connected relay in the rear electronic module (REM). The windshield wiper motor and high-pressure cleaning are supplied with power via relays in the engine compartment. The washer pump and headlamp wiper motors are powered via the central electronic module (CEM).
There are diagnostics for the windshield wiper motors and relays.
