Headlamps, Bi-Xenon

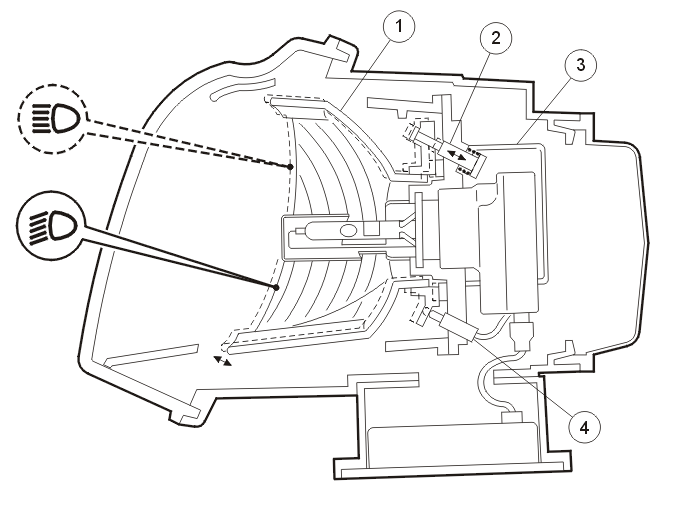

Fig 1: Identifying Bi-Xenon Headlamps
GLL146695Courtesy of VOLVO CARS OF NORTH AMERICA.
1. Moving reflector 3. Motor, high and low beam
2. Controls for reflector 4. Position sensor, reflector
