High level stop lamp

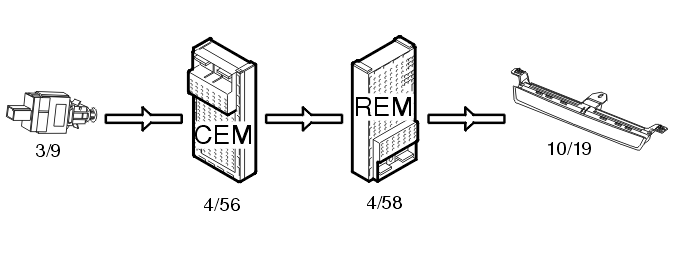

Fig 1: Identifying High Level Stop Lamp Input And Output Signals

Courtesy of VOLVO CARS OF NORTH AMERICA.

When the stop lamp switch (3/9) is closed, a signal is transmitted to the central electronic module (CEM) (4/56). The signal is transmitted from the central electronic module (CEM) to the rear electronic module (REM) (4/58) via a directly connected cable. The high mounted stop lamp is supplied with power directly from the rear electronic module (REM). The stop lamp is supplied with power for as long as the stop lamp switch is closed.
