Replacing fuel pressure regulator: Preparations

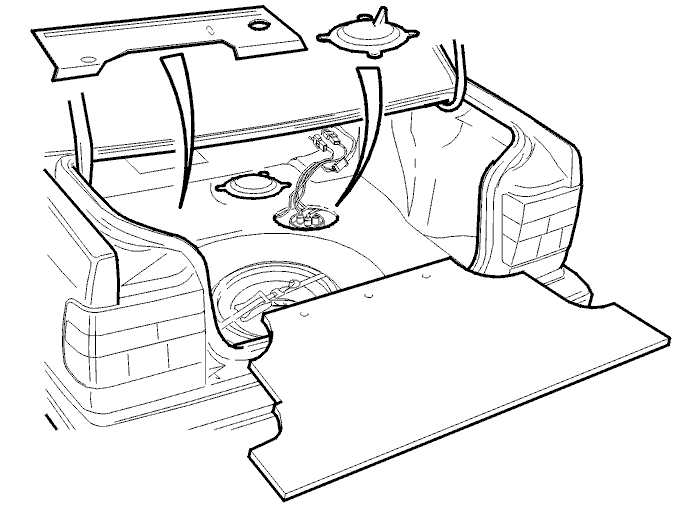

Fig 1: Identifying Cargo Compartment Carpet And Cover Over Fuel Pump (FP) Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

5-door cars:

• remove all floor hatches and fold back carpet.
• remove cover over fuel pump (FP) unit.

4-door cars:

• fold forward right rear seat
• remove cargo compartment carpet.
• fold back corner of wheel housing panel at shock absorber mounting.
• Remove cover over fuel pump (FP) unit.
