Specifications, Mechanical: Tappets

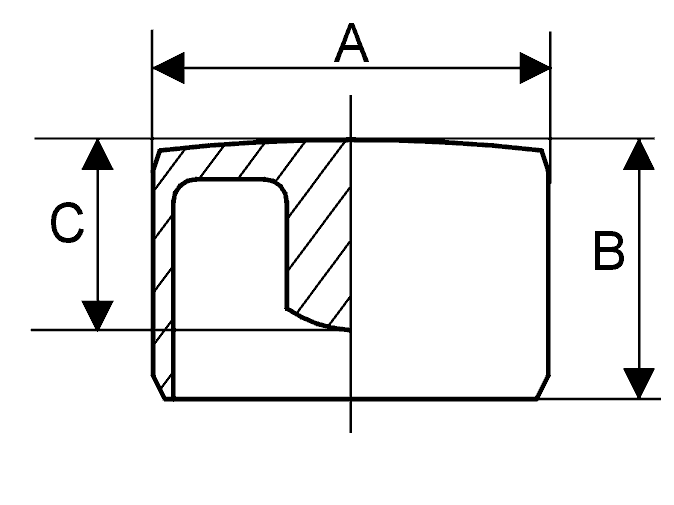

Fig 1: Tappets -- Specifications, Mechanical

Courtesy of VOLVO CARS OF NORTH AMERICA.

Tappets, dimensions

A	External diameter........32.000 +0.025/-0.041 mm
B	External height........26.0 0.5 mm
C	Solid valve lift shaft length........15.96 mm at 0.02 mm stages up to 16.16 mm. The dimensions are listed on the inside of each tappet.
