Removing Steering Wheel Module

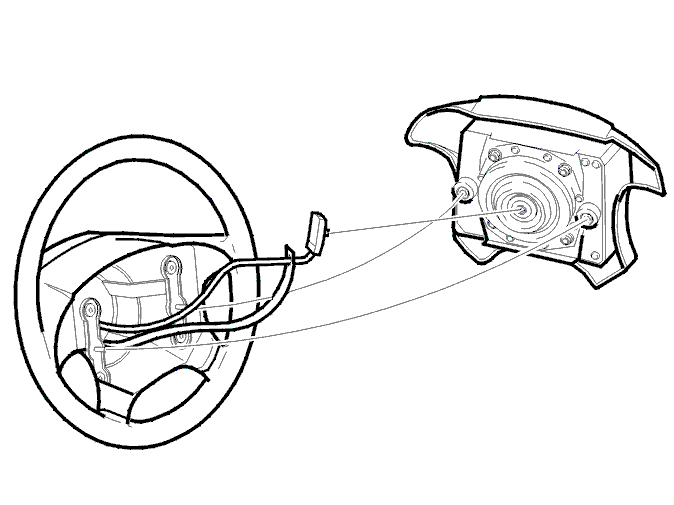

Fig 1: Identifying Steering Wheel Air Bag Module And Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

WARNING:

The battery must not be connected when the SRS ignition cable connector is removed or installed.

WARNING:

Under no circumstances use an ohmmeter or other live measuring instrument to take readings on a disconnected, non-deployed airbag module. This could deploy the airbag.

WARNING:

The steering wheel module must never be taken apart, repaired or moved to another vehicle. For handling replaced module, see HANDLING REPLACED SRS AIRBAGS/SEAT BELT TENSIONERS .
